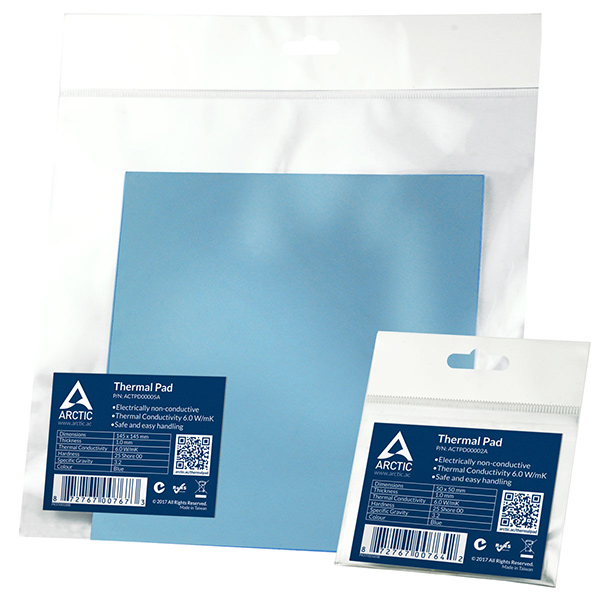

Arctic APT2560 145x145x0.5mm Thermal Pad

899 (Inclusive of GST)

Brand:

Out of stock

Email when back in stock

Arctic APT2560 145x145x0.5mm Thermal Pad:

The ARCTIC Arctic APT2560 145x145x0.5mm Thermal Pad provides an efficient thermal interface between heat sinks and electronic devices where uneven surface topography, air gaps and rough surface textures are present. The silicon based material outperforms generic pads by far, is flexible and adaptive and thus works also at low pressure.

Features:

• Perfect gap filler
• Particularly suitable to cool several modules
• Protection for sensitive processor chips
• Very simple application
• Non-conducting
• Non-capacitive

Overview:

EFFICIENT THERMAL CONDUCTIVITY

The Arctic APT2560 145x145x0.5mm thermal pad, which is based on silicone and a special filler, far outperforms generic and performance-oriented pads.

EXCELLENT PRICE/PERFORMANCE RATIO

In a test conducted by PC Games Hardware (11/2018), the pads‘ “excellent processability and reusability in every respect” were praised. Because of its fair pricing and good performance, our thermal pad was recommended as a “price-performance recommendation”.

BRIDGING THE GAP

Thanks to its low rigidity and good compression properties, the thermal pad acts as a perfect gap filler and easily bridges uneven surfaces and air gaps.

EASY INSTALLATION AND SAFE HANDLING

The ARCTIC Arctic APT2560 145x145x0.5mm Thermal Pads are non-adhesive and can therefore be placed precisely.
The pad contains no metal particles, is electrically insulating and not capacitive. This makes handling them safe, since contact with electrical parts does not lead to damage.

Specifications:

Dimensions50 x 50 mm, 120 x 20 mm,145 x 145 mm, 290 x 290 mm
Thermal Conductivity6.0 W/mK
Hardness50 Shore 00
Specific Gravity 33.2 g/cm
ColourBlue
Continuous Use Temperature-40~200
Volume resistance1 X 10 Ω-cm
Breakdown Voltage 12 KV/mm
Tensile strength 2.5 Kgf/cm²
Elongation 45 %
Dielectric constant 14.1816 at 60 Hz,13.0264 at 1K Hz, 13.0264 at 1M Hz
UL FlammabilityV-0
Thickness0.5 mm or 1.0 mm or 1.5 mm, 12 1 X 10 Ω-cm

Additional information

Weight1 kg
EAN/UPC

4895213700597

Brand

Arctic
