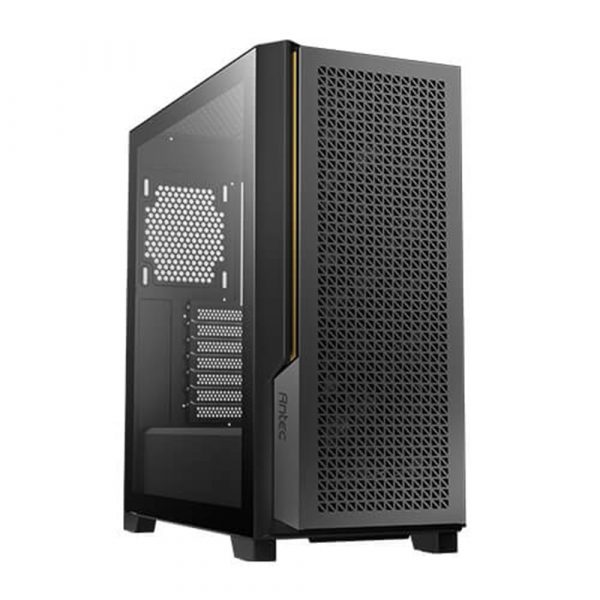

Antec P20C Tempered Glass Gaming Cabinet :
Features :
- Motherboard support E-ATX, ATX, Micro-ATX, ITX
- CPU cooler max height ≤ 170 mm
- GPU max length ≤ 375 mm
- Power Supply max length ≤ 205 mm (with HDD) ≤ 410 mm (without HDD)
Overview :
Simple Assembly & Superior Cooling
Antec P20C Gaming Cabinet adopts a unique metal design, providing a massive airflow path. With the full-size dust filter, the Antec P20C Gaming Cabinet can reach the balance between cooling and dust prevention. The pin-type metal front panel is effortlessly removable, and the clip-on dust filter makes cleaning easy. The well-designed styling will give you a remarkable PC showcase.

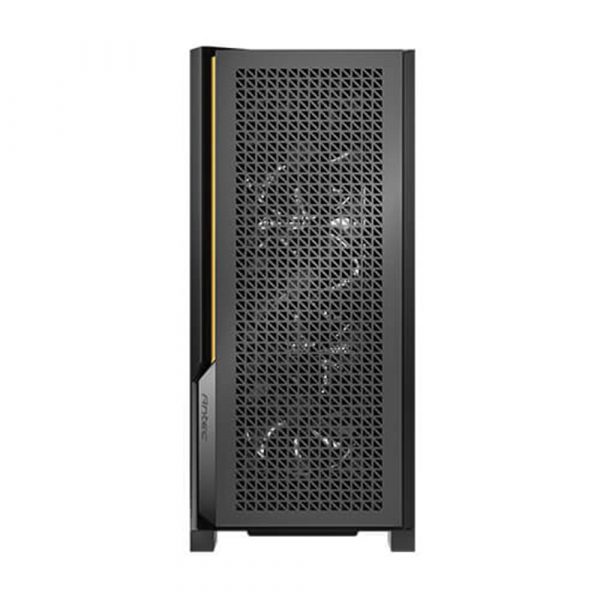

- Full-Size Clip-On Dust Filter at the Front
- Magnetic Dust Filter at the Top

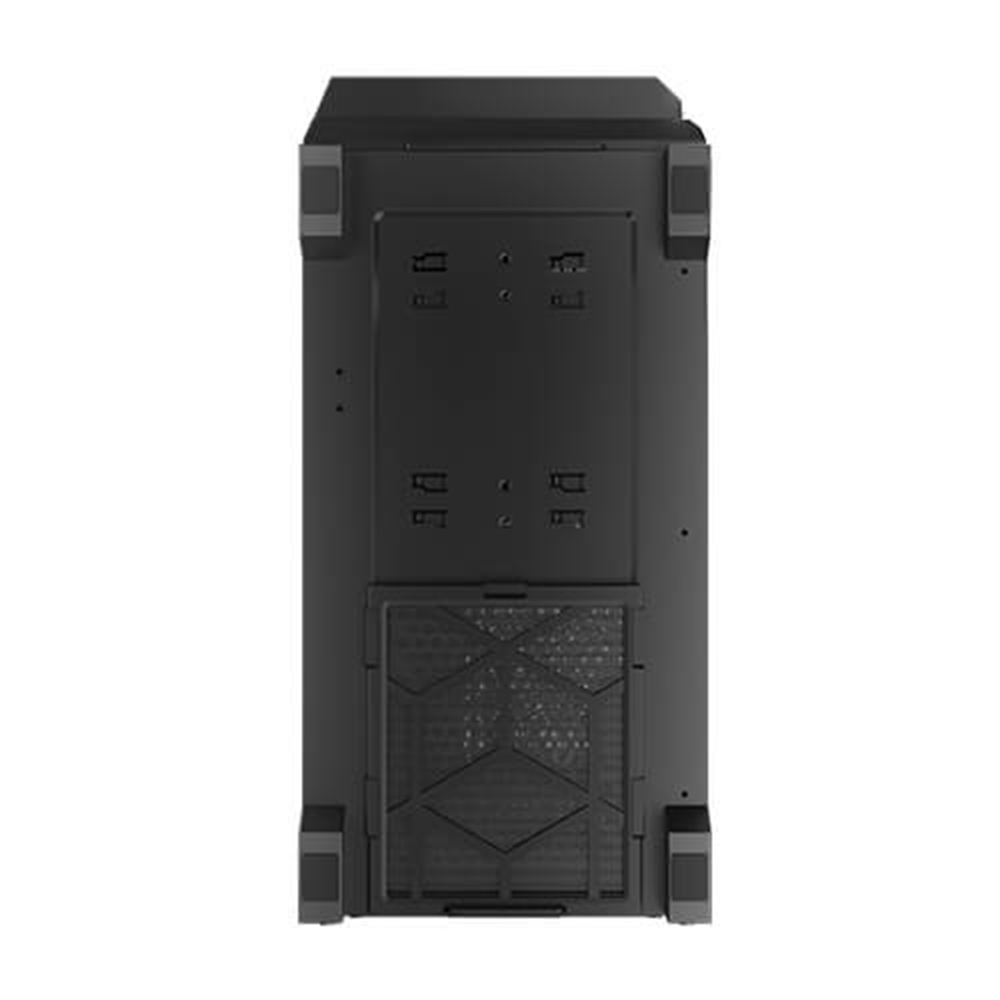

- Pull-Out Dust Filter at the Bottom
3 x 120mm PWM Fans Included
- Pre-installed fans at the front provide massive airflow, and the PWM unction can easily reach the balance between cooling and silence.
- The included 1 to 4 fan splitter cable makes cable management easy.
Type-C 3.2 Gen 2 Ready
Built-in Type-C 3.2 Gen 2 port provides transfer speeds up to 10 Gbps.
- Power
- Reset
- HD-AUDIO
- MIC
- USB 3.0 *2
- Type-C 3.2 Gen 2
High flexibility for Expansion
Antec P20C Gaming Cabinet Features an extensive interior and powerful compatibility. Supports 2 x 360mm radiators at the front and the top simultaneously.
Supports Vertical GPU Installation
Antec P20C Gaming Cabinet Ready to provide users with a more flexible layout through the 7 reusable PCI-E slots for vertical GPU installation.
Dual CPU Motherboard Support
Supports dual CPU motherboards with a width of up to 330mm, reflecting the upgrade and evolution of compatibility.
Building a Clean PC Is Within Easy Reach
Well-designed cable routing makes wiring easy and simple. The cable channels with a cutout on top for stable routing.
9 Fans Simultaneously
3 x 120mm fans and a 360mm radiator can be installed inside the interior of Antec P20C Gaming Cabinet at the front. Plus 3 x 120mm fans outside the interior for outstanding cooling. Supports up to 9 x 120mm fans & 360mm radiators at the front and top simultaneously.
Easy Installation
Fits up to 4 drive devices. 2 HDD & SSD compatible hard drive bays; 2 SSD hard drive bays.
- Snap-in 2.5″ drive device for easy mounting.
- Removable hard drive cage.
- Tool-free 3.5″ drive tray.
Specifications :
| Dimensions | 469 x 220 x 490mm (DWH) |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic |
| Mainboard Support | E-ATX, ATX, Micro-ATX, ITX |
| Front Access & Controls | Power, Reset, USB 3.0 x 2, Type-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 |
| Side Panel | 4 MM Tempered Glass Side Panel |
| Drive Bays | |
| Expansion Slots | 7 |
| 3.5″ / 2.5″ | 2 / 2 |
| 2.5″ | 2 |
| Fan | |
| Front | 3 x 120mm / 3 X 140mm / 2 x 185mm |
| Top | 3 x 120mm / 2 x 140mm |
| Power Supply Shroud | 2 x 120mm |
| Rear | 1 x 120mm |
| Included Fan(s) | 3 x 120mm PWM fans in front |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280 / 360mm |
| Top | 120 / 140 / 240 / 280 / 360mm |
| Rear | 120mm |
| Clearance | |
| Max GPU Length | ≤ 375mm |
| Max CPU Cooler Height | ≤ 170mm |
| Max PSU Length | (Include cable) ≤ 205mm (with HDD) (Include cable) ≤ 410mm (without HDD) |
| Miscellaneous | |
| Dust Filter | Front / Top / Bottom |
| Net Weight | 8.1 Kgs |
| Gross Weight | 9.32 Kgs |
| Warranty | 2 Years |
| UPC# | 0-761345-80103-4 |
