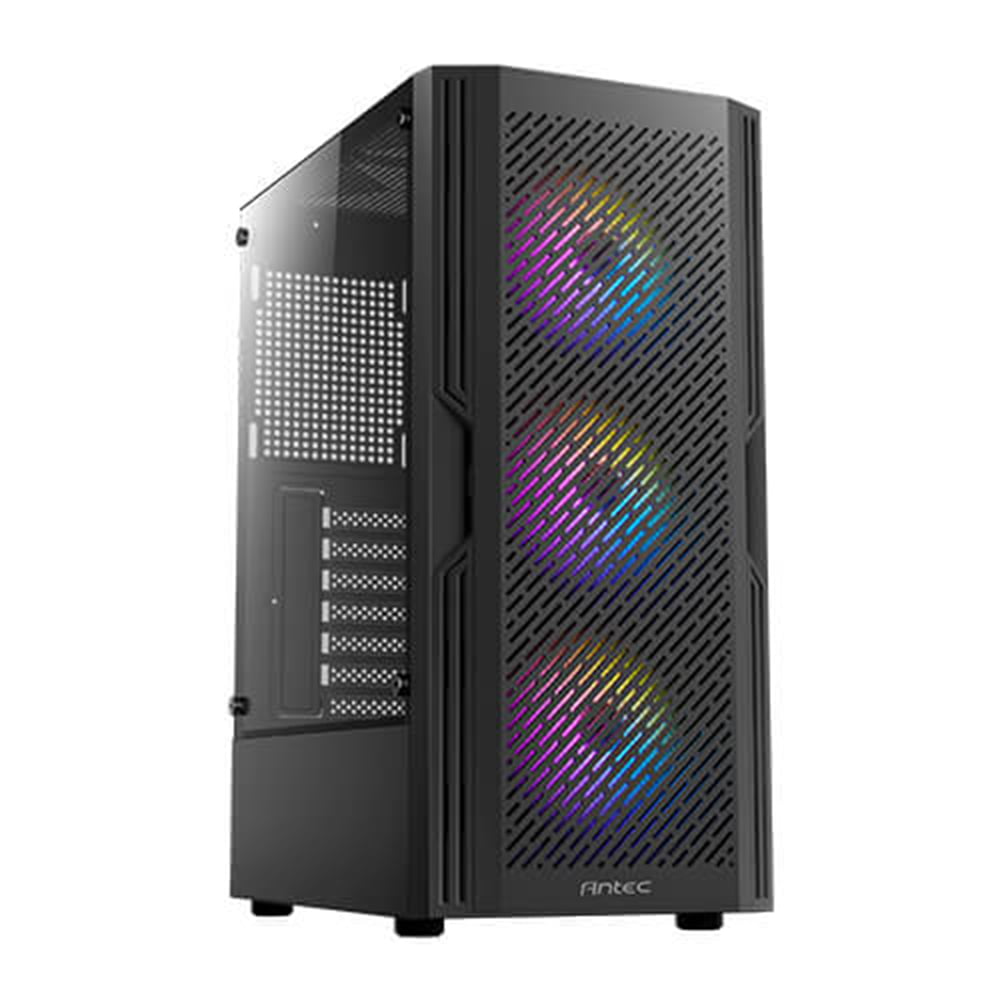

Antec AX20 Black Gaming Cabinet :
Features :
- Antec AX20 Black (Pre-installed 3 x 120 RGB fixed model fans in front)
Overview :
Unique Design & Powerful Heat Dissipation
Antec AX20 Black Gaming Cabinet features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The Antec AX20 Gaming Cabinet supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.
Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.

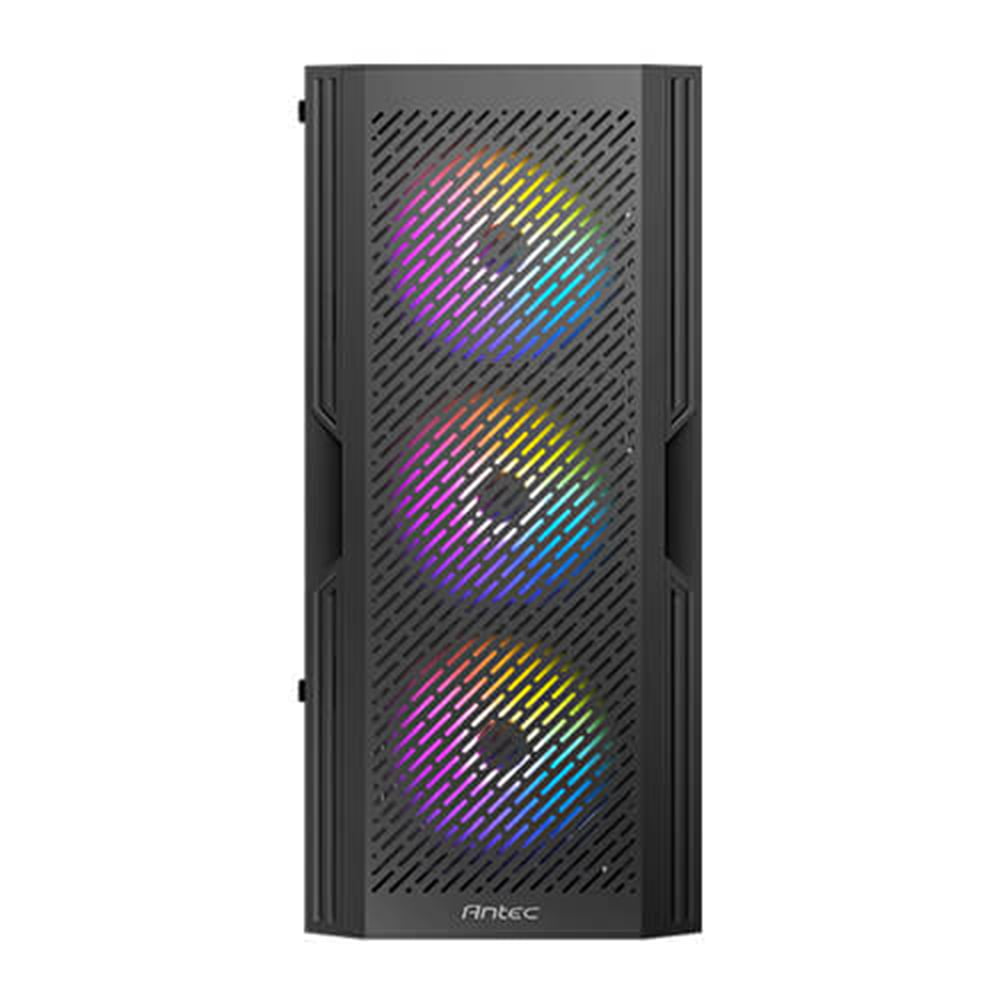

High-Airflow Front Panel
Massive air intake at the front, top, and bottom. Creating multiple airflow paths.

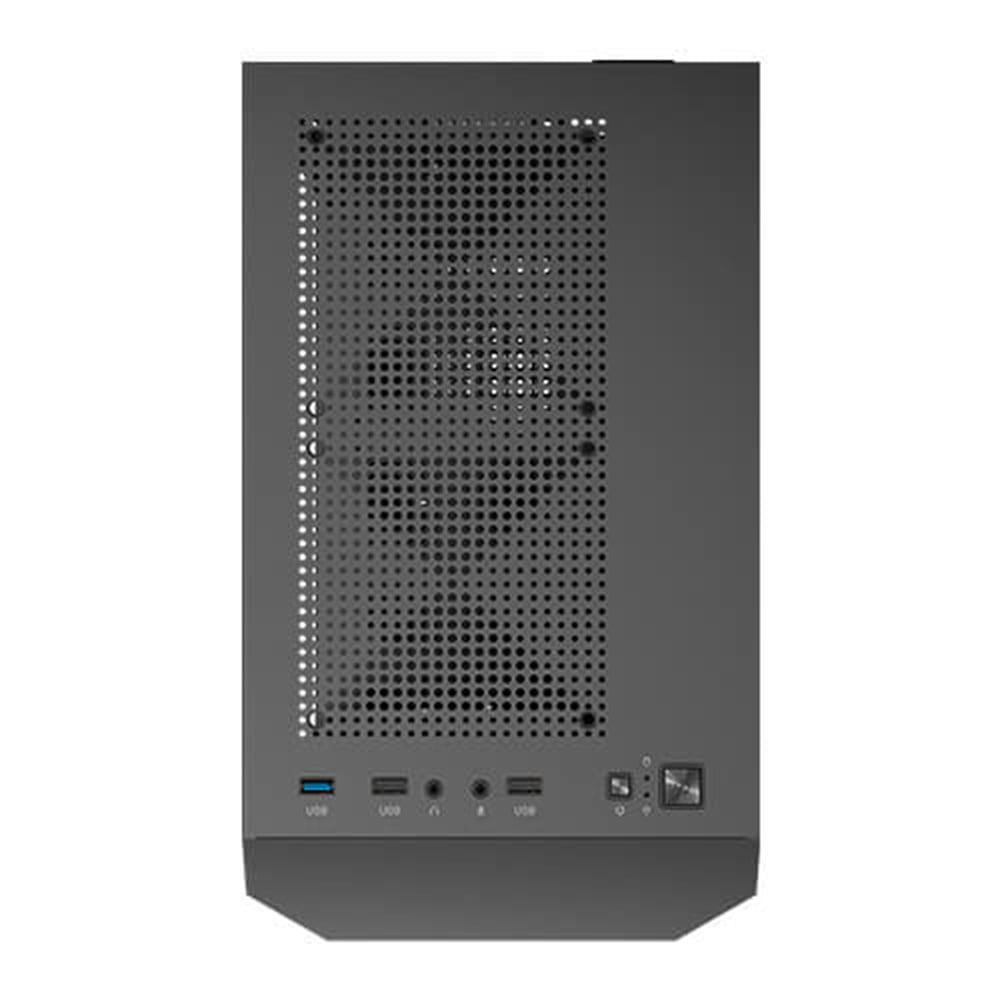

I/O Panel
Power, Reset, USB2.0 x 2, MIC/HD-AUDIO, USB3.0 x 1
Specifications :
| Dimensions | 358 x 207 x 451mm (DWH) |
| Form Factor | Mid Tower |
| Materials | Steel+Plastic |
| Mainboard Support | ATX, Micro-ATX, ITX |
| Front Access & Controls | Power, Reset, 2 x USB 2.0, 1 x USB 3.0, MIC / HD-AUDIO |
| Side Panel | Tempered Glass |
| Drive Bays | |
| 3.5″ / 2.5″ | 2 / 1 |
| 2.5″ | 2 |
| Expansion Slots | 7 |
| Fan Support | |
| Front | 3 x 120mm / 2 x 140mm |
| Top | 2 x 120mm |
| Power Supply | 2 x 120mm |
| Rear | 1 x 120mm |
| Included Fan(s) | 3 x 120 RGB fixed model fans in front (AX20) 3 x 120 RGB fixed mode fans in front + 1 x 120 RGB fixed mode fan in rear (AX20 Elite) |
| Radiator Support | |
| Front | 120 / 140 / 240 / 280mm |
| Clearance | |
| Max GPU Length | ≤ 270mm |
| Max CPU Cooler Height | ≤ 155mm |
| Max PSU Length | ≤ 170mm (with HDD) ≤ 295mm (without HDD) |
| Miscellaneous | |
| Dust Filter | Front |
| Net Weight | 4 Kg (AX20) / 4.12 Kg (AX20 Elite) |
| Gross Weight | 4.71 Kg (AX20) / 4.83 Kg (AX20 Elite) |
| Warranty | 1 year |
| UPC# | 0-761345-10060-1 (AX20) |
