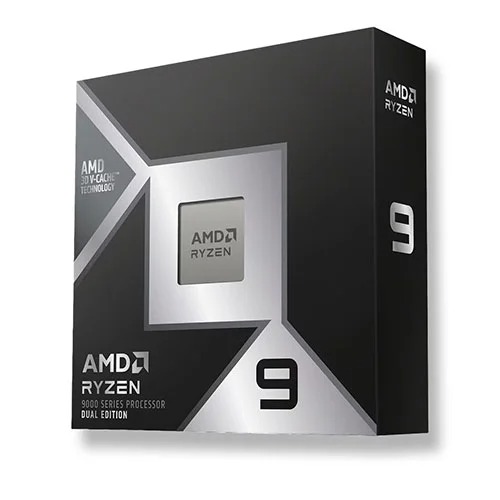

AMD Ryzen 9 9950X3D2 9000 Series Desktop Processor – 16 Cores / 32 Threads
Overview:
The AMD Ryzen 9 9950X3D2 Dual AMD 3D V-Cache Technology-Based Processor is a powerful gaming Ryzen 9000 series desktop CPU designed for both extreme gaming performance and serious workstation capability. With 16 CPU cores and 32 threads, it delivers excellent performance for both gaming and multitasking. The processor’s base clock operates at 4.3 GHz, providing solid performance for everyday tasks and gaming, while the maximum boost clock of up to 5.6 GHz ensures smooth gameplay and high responsiveness during more demanding applications.
AMD Ryzen 9 9950X3D2 is Equipped with a generous 208MB total cache, the AMD Ryzen 9 9950X3D2 ensures faster data access, which contributes to lower latency and improved overall system efficiency. The processor has a Thermal Design Power (TDP) of 200 W, making it energy-efficient while still delivering high performance. This combination of power and efficiency makes it ideal for users who need a balance of performance and energy savings, especially in gaming systems.
The AMD Ryzen 9 9950X3D2 supports the AM5 socket, offering compatibility with a wide range of motherboards. It is designed to work with chipset families such as A620, X670E, X670, B650E, B650, X870E, X870, B840, B850, providing users with a variety of options for building or upgrading their systems. It comes with AMD Radeon Graphics in AMD Ryzen 9 9950X3D2.
Key Details:
- Dual 3D V-Cache = uniform high performance across all cores
- Massive cache = industry-leading memory performance
- Zen 5 cores = modern architecture gains
- Hybrid design = gaming + workstation workloads
- Future-ready platform (AM5 + DDR5 + PCIe 5.0)
- Max. Operating Temperature: 95°C
- *OS Support: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit (*Please check the official Brand website for more details)
- Graphics Core Count: 2
- Graphics Frequency: 2200 MHz
Dual 3D V-Cache Technology:
- Better consistency across all 16 cores
- Reduced dependency on software scheduling
- Improved performance in cache-heavy workloads (games, simulations, AI)
Specification:
| General Specifications | Name: AMD Ryzen™ 9 9950X3D2 Dual Edition Family: Ryzen Series: Ryzen 9000 Series Form Factor: Desktops , Boxed Processor Market Segment: Enthusiast Desktop Regional Availability: Global Former Codename: Granite Ridge AM5 Architecture: Zen 5 # of CPU Cores: 16 Multithreading (SMT): Yes # of Threads: 32 Max. Boost Clock : Up to 5.6 GHz Base Clock : 4.3 GHz L1 Cache: 1280 KB L2 Cache: 16 MB L3 Cache: 192 MB Default TDP: 200W Processor Technology for CPU Cores: TSMC 4nm FinFET Processor Technology for I/O Die: TSMC 6nm FinFET Package Die Count: 3 Unlocked for Overclocking : Yes AMD EXPO Memory Overclocking Technology: Yes Precision Boost Overdrive: Yes Curve Optimizer Voltage Offsets: Yes AMD Ryzen Master Support: Yes CPU Socket: AM5 Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 CPU Boost Technology: Precision Boost 2 Instruction Set: x86-64 Supported Extensions: AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64 Thermal Solution (PIB): Not Included Recommended Cooler: Liquid cooler recommended for optimal performance Max. Operating Temperature (Tjmax): 95°C *OS Support: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | Native USB 3.2 Gen 2 (10Gbps) Ports: 4 Native USB 2.0 (480Mbps) Ports: 1 PCI Express® Version: PCIe® 5.0 Native PCIe® Lanes (Total/Usable): 28 , 24 NVMe Support: Boot , RAID0 , RAID1 , RAID5 , RAID10 System Memory Type: DDR5 Memory Channels: 2 Max. Memory: 256 GB System Memory Subtype: UDIMM Max Memory Speed 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support: Yes (Requires mobo support) |
| Graphics Capabilities | Graphics Model: AMD Radeon™ Graphics Graphics Core Count: 2 Graphics Frequency: 2200 MHz USB Type-C® DisplayPort™ Alternate Mode: Yes |
| Security | AMD Secure Processor: Yes AMD Platform Secure Boot: Yes Windows Secure Boot: Yes UEFI Secure Boot: Yes Windows Device Guard: Yes Supervisor Mode Execution Prevention (SMEP): Yes Guest Mode Execution (GMET) Trap: Yes Virtualization-Based Security (VBS): Yes Windows Secured-Core PC: Yes Firmware TPM: Yes AMD-V (SVM): Yes AMD AVIC (Interrupt Virtualization): Yes AMD-Vi (I/O MMU Virtualization): Yes Second Level Address Translation (SLAT): Yes Advanced Encryption Standard New Instructions (AES-NI): Yes AMD Enhanced Virus Protection (NX bit): Yes AMD Shadow Stack: Yes |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
