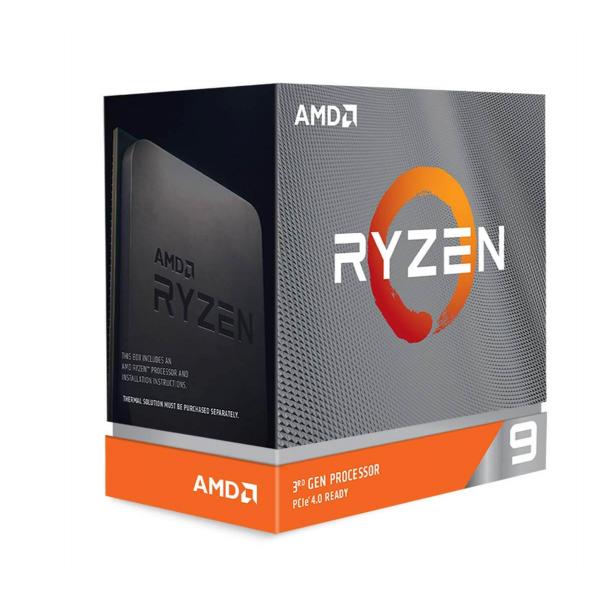

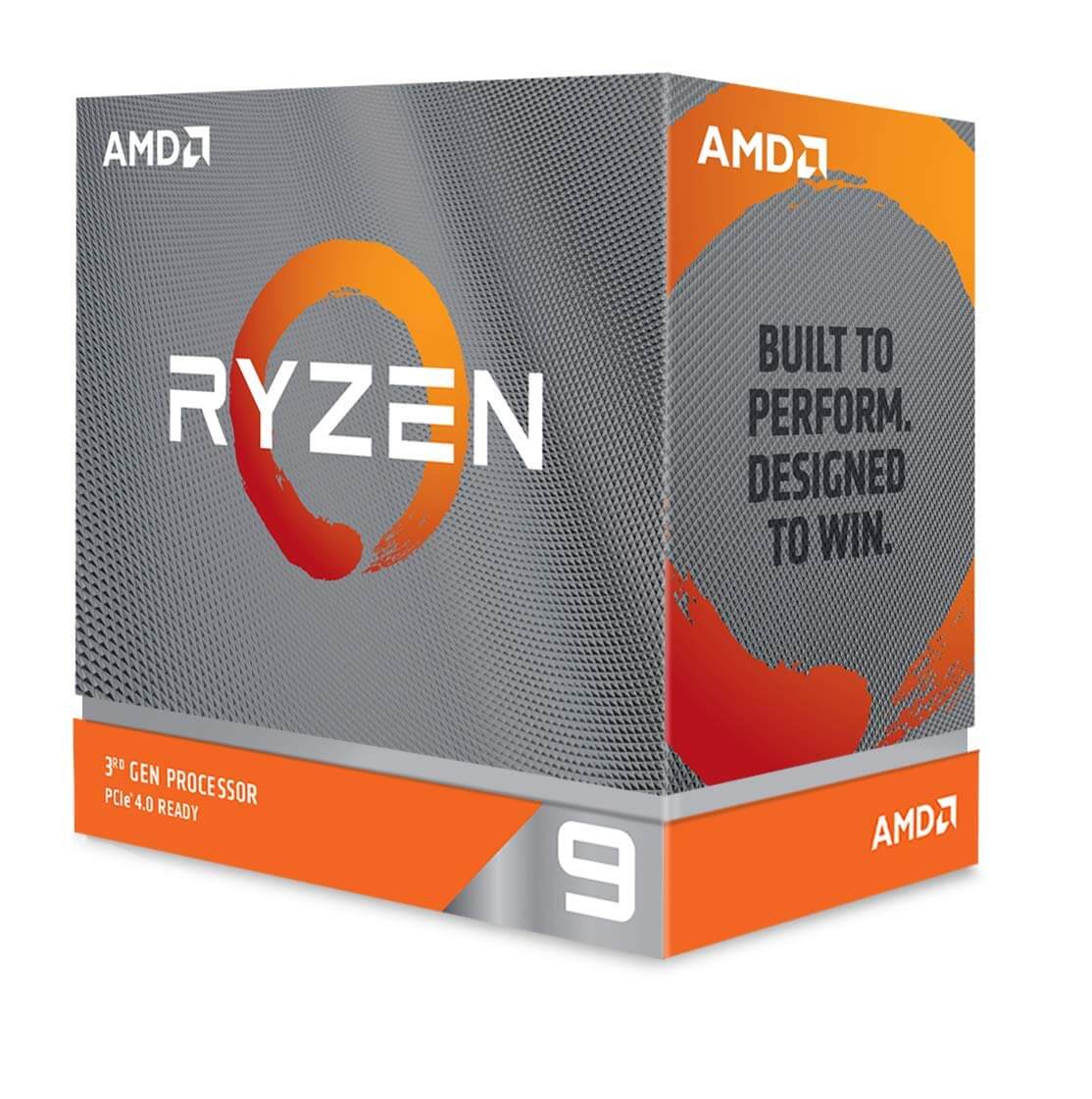

AMD Ryzen 9 3950X 3000 Series Desktop Processor – 16 Cores / 32 Threads
Overview:
AMD Ryzen™ Ready Socket AM4 Platform
AMD Socket AM4 represents the company’s future-proof platform targeting the fastest DDR4 memory, PCIe® 3.0, and NVMe technologies available, as well as the first native USB 3.1 Gen2 support on a chipset. With processor-direct SATA and USB connectivity, configurable for real-world flexibility, the AM4 platform takes advantage of the leading-edge features of today, and tomorrow.
7nm “Zen 2” Architecture
AMD Ryzen 9 3950X “Zen 2” cores are designed to efficiently use available microarchitectural resources for optimal compute performance. Compared to our previous architecture, 2X floating point capabilities and up to 15% higher instructions per cycle enable new performance thresholds.
Specifications
| Number Of CPU Cores | 16 |
| Number Of CPU Threads | 32 |
| Max Boost Clock | 4.7GHz |
| Base Clock | 3.5GHz |
| Separate Graphics Card support | YES (MANDATORY) |
| PCIe Version | 4 |
| Total L2 Cache | 8MB |
| Total L3 Cache | 64MB |
| CMOS | TSMC 7nm FinFET |
| System Memory Specification | 3200MHz |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| TDP | 105W |
| Unlocked | Yes |
| In Box Cooler | Not Included (Separate cooler required) |
| Socket | AM4 |
| OPN PIB | 100-100000051WOF |
| Warranty | 3 years from Manufacture |
| Note | ***Features, Price and Specifications are subject to change without notice. |
