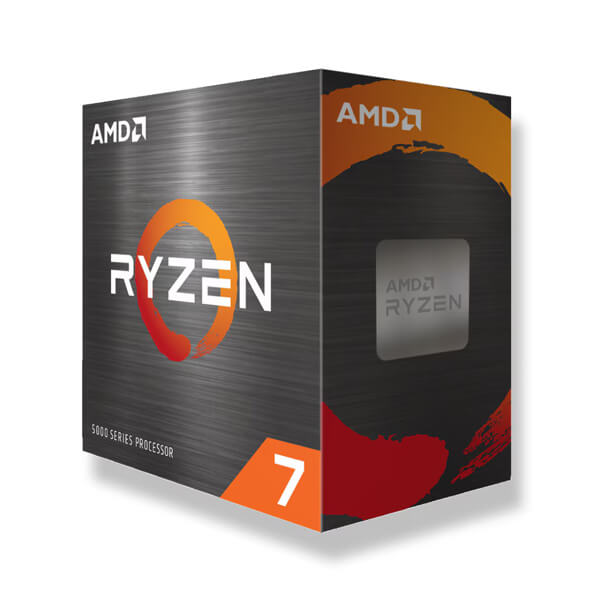

AMD Ryzen 7 5800XT 5000 Series Desktop Processor – 8 Cores / 16 Threads
Overview:
- Core Configuration of AMD Ryzen 7 5800XT: 8 Cores, 16 Threads, leveraging AMD’s Zen 3 architecture for exceptional performance.
- Clock Speeds: Base clock of 3.8 GHz and a boost clock of up to 4.8 GHz, delivering rapid processing capabilities from AMD Ryzen 7 5800XT.
- Cache: Equipped with 32 MB of L3 cache for efficient data access and improved application responsiveness.
- Memory Support: Supports up to DDR4-3200MHz memory speeds for optimal system performance.
- TDP: Maintains a thermal design power (TDP) of 105W, ensuring efficient power consumption. Thermal solution-AMD Wraith Prism
- Socket Compatibility: Designed for AMD Socket AM4 motherboards for easy system integration.
Precision Boost 2
AMD Ryzen processors monitor the system’s energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
Precision Boost Overdrive
AMD Ryzen 7 5800XT has Precision Boost Overdrive technology takes advantage of your compatible motherboard’s design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.
AMD StoreMI Technology
AMD Ryzen 7 5800XT AMD StoreMI technology helps to improve load times and overall system performance by combining solid-state drives and mechanical hard drives into a single hybrid storage drive. Frequently used files and programs are cached onto the fast SSD while other files are stored on the high-capacity HDD.
AMD Ryzen VR Ready Premium
Ryzen VR Ready Premium processors are designed to meet or exceed the recommended specifications from the top HMD manufacturers, including Oculus Rift, HTC Vive, and Windows Mixed Reality for smooth performance.
AMD Ryzen Master Utility
Personalized Performance
with The AMD Ryzen 7 5800XT it has AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine-tune your favorite applications.
System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.
Specification:
| Â General Specifications | |
| Â Name | Â AMD Ryzenâ„¢ 7 5800XT |
| Â Family | Â Ryzen |
| Â Series | Â Ryzen 5000 Series |
| Â Form Factor | Â Boxed Processor , Desktops |
| Â Market Segment | Â Enthusiast Desktop |
| Â Consumer Use | Â Yes |
| Â Commercial Use | Â No |
| Â Regional Availability | Global |
| Â Former Codename | Â Vermeer |
| Â Architecture | Â Zen 3 |
| Â # of CPU Cores | Â 8 |
| Â Multithreading (SMT) | Â Yes |
| Â # of Threads | Â 16 |
| Â Max. Boost Clock | Â Up to 4.8 GHz |
| Â Base Clock | Â 3.8 GHz |
| Â L1 Cache | Â 512 KB |
| Â L2 Cache | Â 4 MB |
| Â L3 Cache | Â 32 MB |
| Â Default TDP | Â 105W |
| Â Processor Technology for CPU Cores | Â TSMC 7nm FinFET |
| Â Processor Technology for I/O Die | Â 12nm (Globalfoundries) |
|  CPU Compute Die (CCD) Size |  74mm² |
|  I/O Die (IOD) Size | 125mm² |
| Â Package Die Count | 2 |
| Â Unlocked for Overclocking | Â Yes |
| Â CPU Socket | AM4 |
| Â Supporting Chipsets | Â X570 , B550 , A520 , X470 , B450 |
| Â CPU Boost Technology | Precision Boost 2 |
| Â Instruction Set | x86-64 |
| Â Supported Extensions | AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Â Thermal Solution (PIB) | Â AMD Wraith Prism |
|  Max. Operating Temperature (Tjmax) |  90°C |
|  *OS Support |  Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Â Â Connectivity | |
| Â Native USB 3.2 Gen 2 (10Gbps) Ports | Â 4 |
| Â Native USB 3.2 Gen 1 (5Gbps) Ports | Â 0 |
| Â Native USB 2.0 (480Mbps) Ports | Â 0 |
| Â Native SATA Ports | Â 2 |
|  PCI Express® Version | PCIe® 4.0 |
|  Native PCIe® Lanes (Total/Usable) |  24 , 20 |
| Â Additional Usable PCIe Lanes from Motherboard | amd_x570 16x Gen 4 amd_x470 2x Gen 3, 8x Gen 2 |
| Â NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
| Â System Memory Type | DDR4 |
| Â Memory Channels | 2 |
| Â Max. Memory | 128 GB |
| Â System Memory Subtype | UDIMM |
| Â Max Memory Speed | Â 2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667 |
| Â ECC Support | Â Yes (Requires mobo support) |
| Â Â Graphics Capabilities | |
| Â Graphics Model | Discrete Graphics Card Required |
| Â Â Key Features | |
| Â Supported Technologies | Â AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzenâ„¢ Master Utility , AMD Ryzenâ„¢ VR-Ready Premium |
| Â Warranty | Â 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
