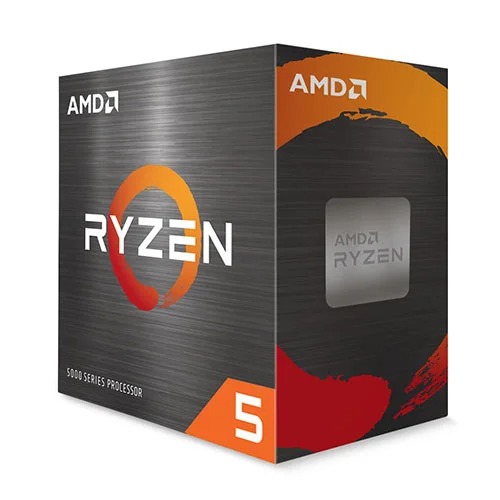

AMD Ryzen 5 5600F 5000 Series Desktop Processor – 6 Cores / 12 Threads
Overview:
The AMD Ryzen 5 5600F is a powerful gaming desktop processor from the Ryzen 5000 series, featuring the advanced Zen 3 architecture. With 6 CPU cores and 12 threads, it delivers excellent performance for both gaming and multitasking. The processor’s base clock operates at 3.0 GHz, providing solid performance for everyday tasks and gaming, while the maximum boost clock of up to 4.0 GHz ensures smooth gameplay and high responsiveness during more demanding applications.
Equipped with a generous 35MB total cache, the AMD Ryzen 5 5600F ensures faster data access, which contributes to lower latency and improved overall system efficiency. The processor has a Thermal Design Power (TDP) of 65W, making it energy-efficient while still delivering high performance. This combination of power and efficiency makes it ideal for users who need a balance of performance and energy savings, especially in gaming systems.
The AMD Ryzen 5 5600F supports the AM4 socket, offering compatibility with a wide range of motherboards. It is designed to work with chipset families such as X570, X470, X370, B550, B450, B350, and A520, providing users with a variety of options for building or upgrading their systems.
This Desktop Gaming CPU also supports PCIe 4.0 version and Supports Memory type DDR4 that has a system memory specification of up to 3200 MT/s with maximum memory capacity of 128GB
Whether you’re gaming at high settings or running intensive applications, the AMD Ryzen 5 5600F provides an outstanding experience, offering strong performance, multi-core efficiency, and future-proofing with its support for the latest technology.
Specification:
| Name | AMD Ryzen™ 5 5600F |
| Family | Ryzen |
| Series | Ryzen 5000 Series |
| Form Factor | Desktop, Boxed Processor |
| Market Segment | Mainstream Desktop |
| Regional Availability | APJ |
| Former Codename | Vermeer |
| Processor Architecture | Zen 3 |
| CPU Cores | 6 |
| Threads | 12 |
| SMT (Multithreading) | Yes |
| Base Clock | 3.0 GHz |
| Max Boost Clock | Up to 4.0 GHz |
| L1 Cache | 384 KB |
| L2 Cache | 3 MB |
| L3 Cache | 32 MB |
| Default TDP | 65 W |
| CPU Core Process Technology | TSMC 7nm FinFET |
| I/O Die Process Technology | 12nm (GlobalFoundries) |
| CPU Compute Die (CCD) Size | 74 mm² |
| I/O Die (IOD) Size | 125 mm² |
| Package Die Count | 2 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Supported Chipsets | X570, X470, X370, B550, B450, B350, A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, SSE4A, x86-64 |
| Max Operating Temperature (Tjmax) | 95°C |
| Launch Date | 9/16/25 |
| Supported Operating Systems | Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 3.2 Gen 1 (5Gbps) | 0 |
| Native USB 2.0 (480Mbps) | 0 |
| Native SATA Ports | 2 |
| PCI Express Version | PCIe® 4.0 |
| Native PCIe Lanes (Total / Usable) | 24 / 20 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
| Memory Type | DDR4 |
| Memory Channels | 2 |
| Maximum Memory Capacity | 128 GB |
| Memory Module Type | UDIMM |
| Memory Specification | Up to DDR4-3200 MT/s |
| Max Memory Speed (2×1R) | DDR4-3200 |
| Max Memory Speed (2×2R) | DDR4-3200 |
| Max Memory Speed (4×1R) | DDR4-2933 |
| Max Memory Speed (4×2R) | DDR4-2667 |
| ECC Support | Yes (Requires motherboard support) |
| Graphics Model | Discrete Graphics Card Required |
| Product ID (Tray) | 100-000001903 |
| Supported Technologies | AMD StoreMI Technology, AMD Ryzen™ Master Utility, AMD Ryzen™ VR-Ready Premium |
