Adata Legend 960 Max 2TB Gen4 M.2 NVMe Internal SSD :
Overview :
The Adata Legend 960 Max 2TB Gen4 M.2 NVMe Internal SSD is a high-performance storage solution designed for gamers, content creators, and professionals seeking rapid data access and reliable storage. Leveraging the PCIe Gen4 x4 interface and NVMe 1.4 protocol, Adata Legend 960 Max 2TB Gen4 M.2 NVMe Internal SSD delivers exceptional read and write speeds, ensuring swift system responsiveness and efficient workflows. Adata Legend 960 Max 2TB Gen4 M.2 NVMe Internal SSD compatibility with PS5 consoles and advanced features like SLC caching and LDPC error correction make it a versatile choice for various computing needs.
Key Features :
Ultra-Fast Performance: Sequential read speeds up to 7,400 MB/s and write speeds up to 6,800 MB/s, facilitating rapid data access and transfer.
Advanced NAND Technology: Utilizes 176-layer 3D TLC NAND flash memory with SLC caching and DRAM cache buffer for enhanced performance and multitasking.
Robust Data Protection: Incorporates LDPC (Low-Density Parity-Check) error correction and AES 256-bit encryption to ensure data integrity and security.

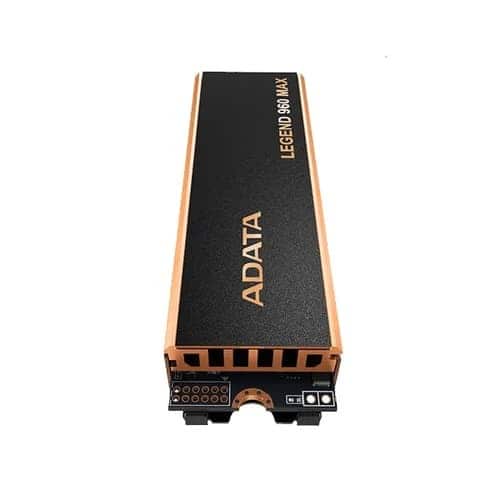

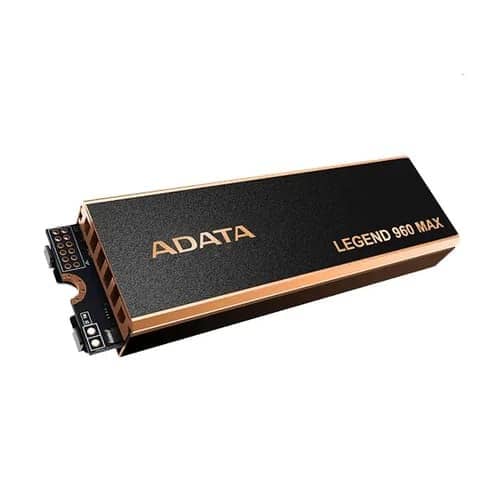

Efficient Thermal Management: Features a sleek black heatsink with bronzing trimming and sandblasted surfaces for effective heat dissipation.
Comprehensive Software Support: Includes ADATA SSD Toolbox software for monitoring drive health, firmware updates, and performance optimization.
Durability and Reliability: Offers a Total Bytes Written (TBW) rating of 1,560TB and a Mean Time Between Failures (MTBF) of 2 million hours, backed by a 5-year limited warranty.
Specifications Table :
| Capacity | 2TB (2000GB) |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4 x4, NVMe 1.4 |
| NAND Flash | 176-layer 3D TLC NAND |
| Controller | Silicon Motion SM2264 |
| DRAM Cache | DDR4 |
| Sequential Read (Max) | Up to 7,400 MB/s |
| Sequential Write (Max) | Up to 6,800 MB/s |
| Random Read (4KB) | Up to 750,000 IOPS |
| Random Write (4KB) | Up to 630,000 IOPS |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Shock Resistance | 1500G / 0.5ms |
| MTBF | 2,000,000 hours |
| TBW | 1,560TB |
| Dimensions (with heatsink) | 80.6 x 23.2 x 10.65 mm |
| Dimensions (without heatsink) | 80 x 22 x 3.3 mm |
| Weight (with heatsink) | 36.6g |
| Weight (without heatsink) | 7.3g |
| Encryption | AES 256-bit |
| Software | ADATA SSD Toolbox |
| Warranty | 5-year limited warranty |
