Deepcool PQ1000M 1000W 80 Plus Gold Power Supply

11,999 (Inclusive of GST)

Brand:

Out of stock

Email when back in stock

Deepcool PQ1000M 1000W 80 Plus Gold Power Supply

Overview :

Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes in Deepcool PQ1000M 1000W 80 Plus Gold Power Supply

A NEW GENERATION

In our dedication to the mission of self-improvement and higher quality standards, the Deepcool PQ1000M 1000W 80 Plus Gold Power Supply PSU is a commitment from DeepCool to provide a trustworthy and reliable power supply. With a strong and dependable foundation, DeepCool is helping build better systems today that meet the expectations of tomorrow.

GO FOR GOLD

Certified 80 PLUS Gold for generating clean and consistent power while reducing heat waste and noise. The Deepcool PQ1000M 1000W 80 Plus Gold Power Supply achieves 90% efficiency at 50% system loads.

Built Solid

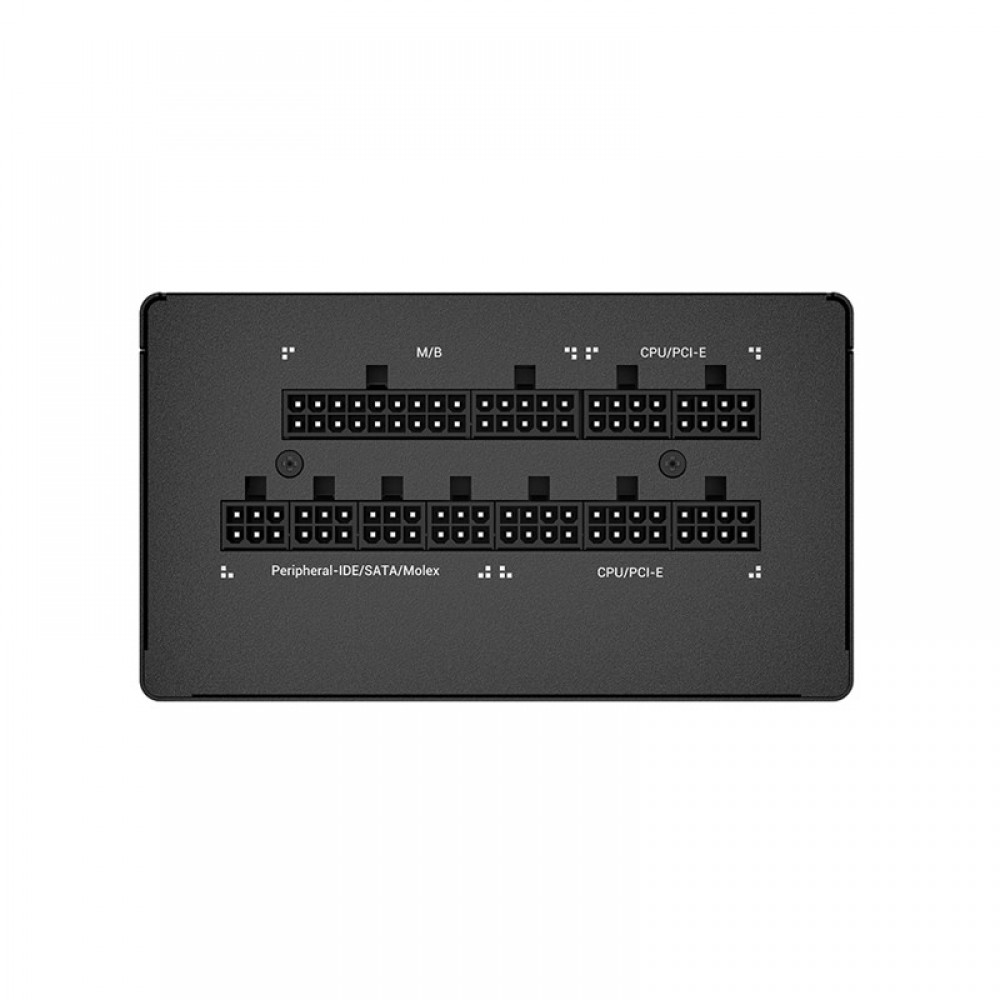

Carefully constructed throughout with quality components to ensure pristine power output quality. The modular board is hard connected to the circuit platform instead of traditional cables for added rigidity and less signal noise.

Silence is Golden

A fine-tuned silent fan curve helps produce a perfect balance between cooling and silence, with an additional fan stop option during low temperature conditions. A rear fan control button also allows the option for setting a minimum fan speed when fanless mode is not preferred.

– Optimized thermal performance

– Reduced noise levels overall

– Longer lasting lifespan

BEST OF THE BEST

Fluid Dynamic Bearing (FDB) fans are considered the best-in-class for operating noise and life expectancy compared to other fan bearing types. The hydrodynamic and fluid-based properties greatly reduce friction and vibration that enables better reliability and quiet operation.

Specifications:

TypeATX12V V2.4
Product Dimensions150×140×86mm (W x L x H)
80PLUS CertificationsGOLD
Fan Size120mm
Fan BearingFDB
TopologyActive PFC + Full Bridge SRC LLC + DC to DC
CapacitorsFull Japan Electrolytic Capacitors
Power Good Signal100-500ms
Hold Up Time≥16ms (80% load))
Efficiency≥90% Under Typical Load(50% Loading)
ProtectionOPP/OVP/SCP/OTP/OCP
Operation Temperature0 – 40 °C
RegulatoryCCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA
Erp RegulationErP 2013
MTBF100,000 Hours
Warranty10 Years

Additional information

Weight5 kg
Brand

Deepcool

Wattage

1000 Watt

Certification

80+ GOLD

Modular

Non Modular
