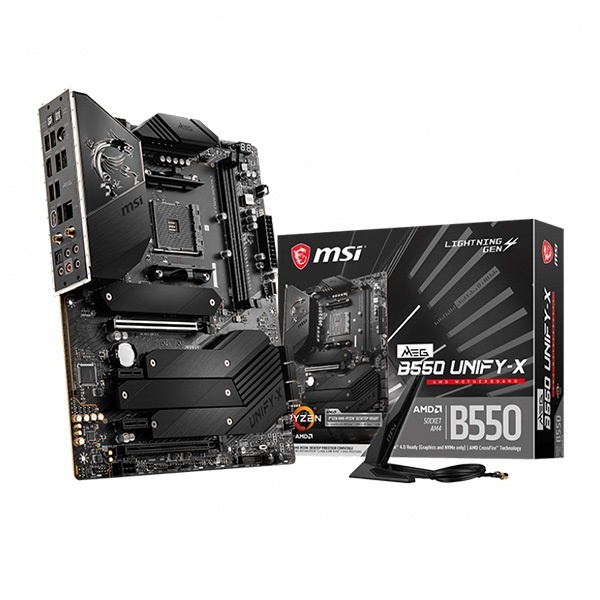

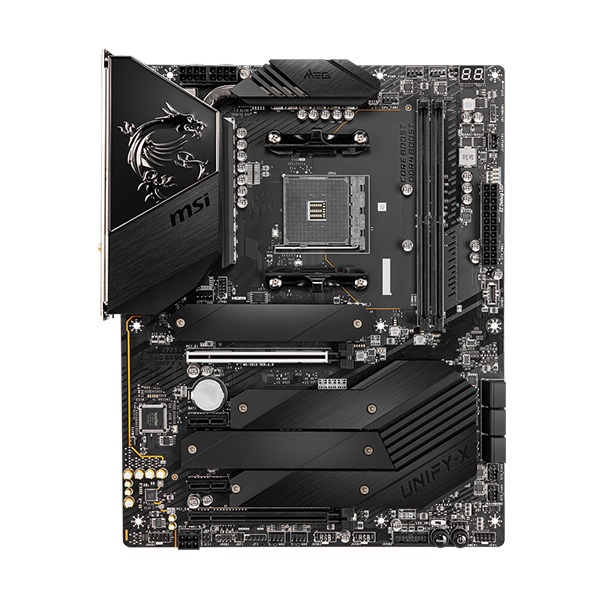

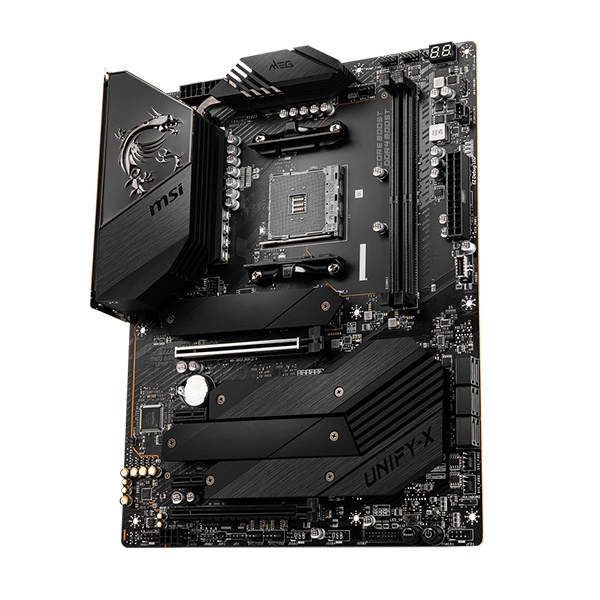

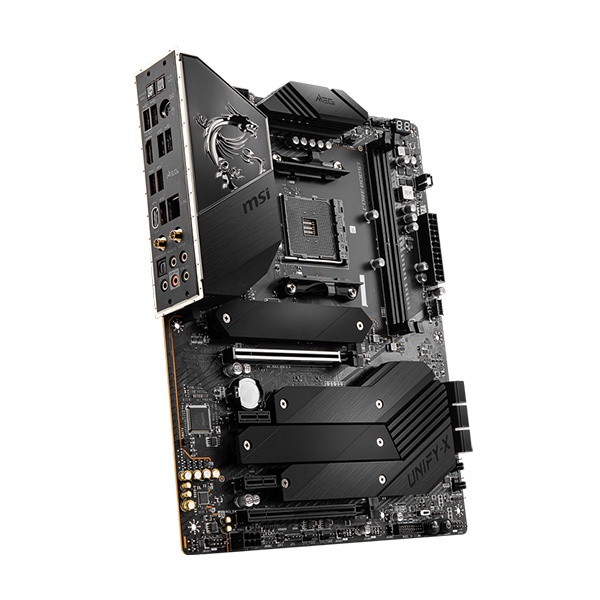

MSI MEG B550 Unify-X AMD RYZEN B550 ATX AM4 Socket GEN 4 Support Gaming Motherboard
Overview :
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ (MAX5800)
- Quadruple M.2 Connectors: Maximum onboard 4x M.2 slots, support the latest Gen 4 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Extreme Power Design: Direct 14+2 phases with 90A Power Stage and dual CPU power connectors to unleash your true power.
- Premium Thermal Solution: Aluminum Cover with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, AMD Turbo USB 3.2 GEN 2.
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.

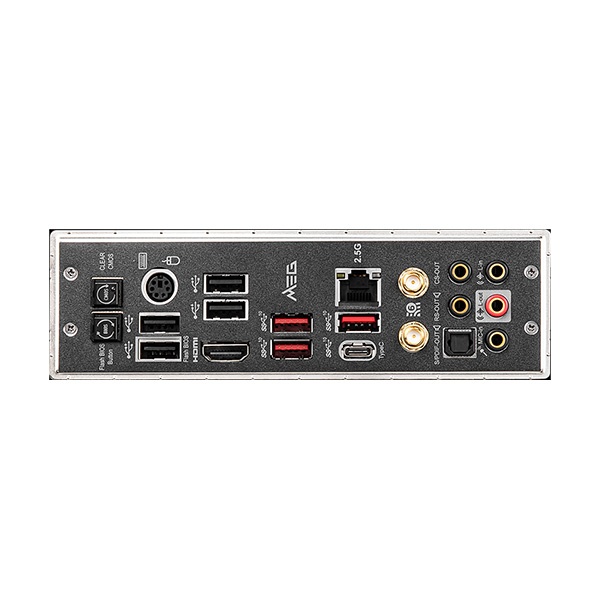

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
Extreme Power Design
Direct 14+2 phases with 90A Power Stage and dual CPU power
connectors to unleash your true power.
Double Side M.2 Shield Frozr
Double side M.2 thermal solution to keep M.2 SSDs safe while
preventing throttling, making them run cooler & faster.
Quadruple M.2 Connectors
Maximum onboard 4x M.2 slots, PCI-E 4.0 support.
WIFI 6
The latest wireless solution supports MU-MIMO and BSS color
technology, delivering speeds up to 2400Mbps.
Dedicated for Extreme OC
The top-notch R&D design and exclusive 2 DIMM solution deliver
the world class memory performance.
Outstanding Cooling Solution
Aluminum Cover design, VRM Heat-pipe, 7W/mK thermal pads,
M.2 Shield Frozr and Aluminum Backplate ensure the extreme
performance with low temp.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
Aluminum Cover
Fully aluminum IO cover provide the maximum surface of heat
dissipation, ready for breaking the world record!
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
Dual M.2 Connectors
Onboard dual M.2 connectors for the maximum storage
performance with one Lightning Gen 4 solution.
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and
performance reliability.
Specifications :
CPU (MAX SUPPORT) | RYZEN 9 |
SOCKET | AMD Socket AM4 |
CHIPSET | AMD® B550 Chipset |
DDR4 MEMORY | 2 DIMMs, Dual Channel DDR4-5300MHz+ (MAX 5800) |
MEMORY CHANNEL | Dual |
DIMM SLOTS | 2 |
MAX MEMORY (GB) | 64 |
PCI-E X16 | 2 |
PCI-E GEN | Gen4 / Gen3 |
PCI-E X1 | 2 |
SATAIII | 6 |
M.2 SLOT | 2 |
RAID | 0/1/10 |
WIFI & BLUETOOTH | Intel® Wi-Fi 6 AX200 |
LAN | Realtek® 8125B-CG 2.5G LAN |
USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
USB 3.2 PORTS (REAR) | 1(Gen 2, Type C), 3(Gen 2, Type A) |
USB 2.0 PORTS (FRONT) | 4 |
USB 2.0 PORTS (REAR) | 4 |
AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC1220P Codec) |
HDMI | 1 |
DIRECTX | 12 |
FORM FACTOR | ATX |
CROSSFIRE | Y |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
