Noctua NF-F12 PWM
Noctua NF-F12 PWM Case Fan
2,599 Original price was: ₹2,599.2,029Current price is: ₹2,029. (Inclusive of GST) Add to cart
Sale!

Noctua NF-F12 PWM Case Fan

Original price was: ₹2,599.Current price is: ₹2,029. (Inclusive of GST)

-22%
Brand:

In stock

Noctua NF-F12 PWM Case Fan :

Teaming up eleven stator guide vanes with a specially conceived seven blade impeller, the NF-F12’s Focused Flow™ system creates outstanding static pressure and focuses the airflow for superior performance on heatsinks and radiators. At the same time, a wide range of advanced aerodynamic design measures, second generation SSO-Bearing and Noctua’s new, custom designed PWM IC for fully automatic control guarantee astounding quietness of operation. The NF-F12 comes with modular cabling, integrated anti-vibration pads and two speed settings for full flexibility. Its commanding performance, exhaustive set of features and Noctua’s trusted premium quality make it an elite choice for use on air coolers, radiators and other pressure demanding applications.

Features :

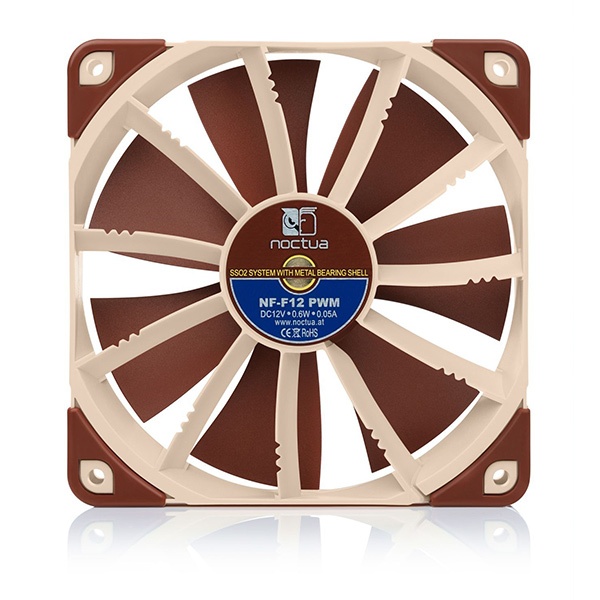

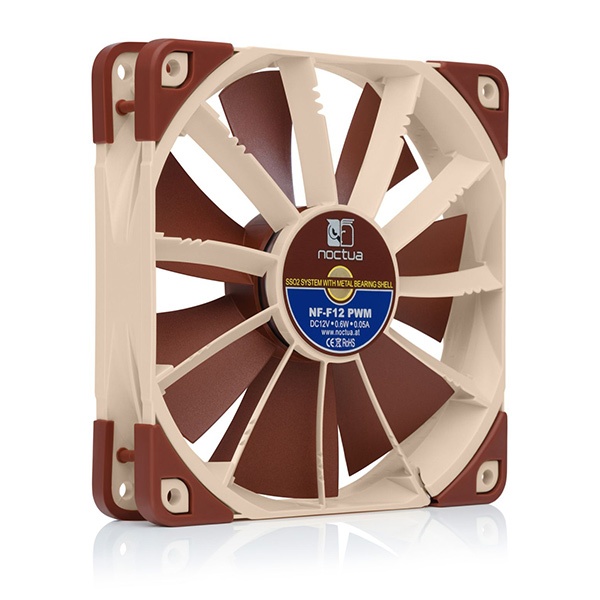

Focused Flow™ frame

Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.

Varying Angular Distance and Vortex Control Notches

Noctua NF-F12 PWM stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan’s sound pattern more agreeable to the human ear.

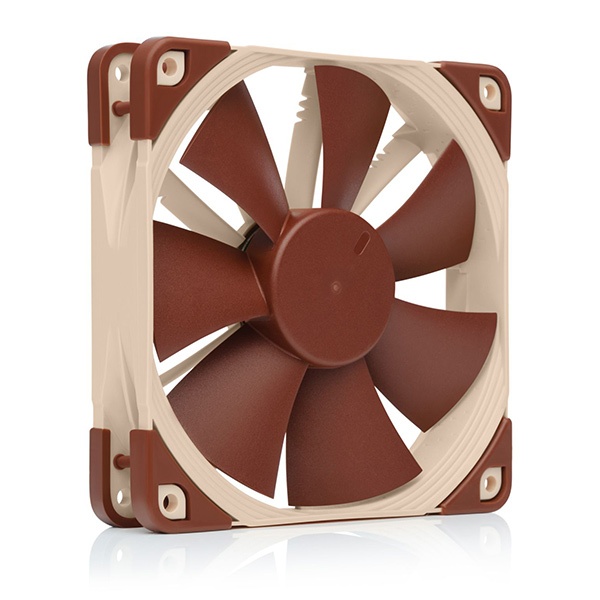

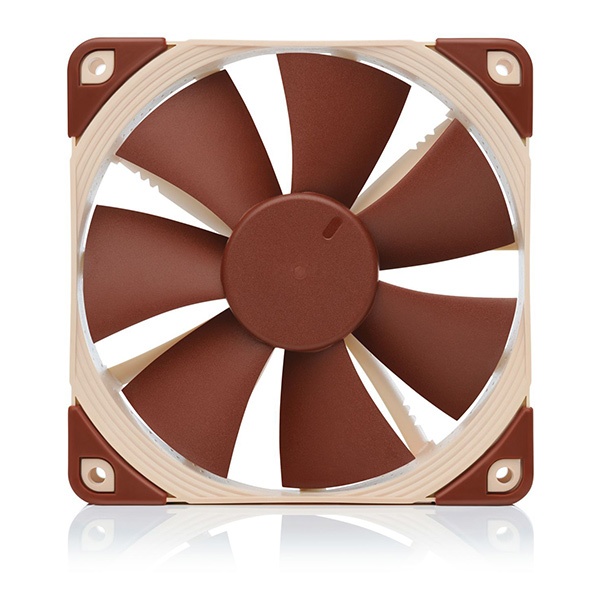

Heptaperf™ Impeller

Custom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12’s seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness.

Stepped Inlet Design

Noctua’s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

SSO2 Bearing

Noctua NF-F12 PWM is the first fan to feature the further optimised second generation of Noctua’s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass.

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-F12 uses Noctua’s novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.

Ultra-Low Power Consumption

Noctua NF-F12 PWM draws only 0.6W, which is more than 50% less than many fans in the same speed range. This doesn’t only make it eco-friendly but also cuts down the electricity bill: Compared to a typical 2W fan, this allows you to save about half the price of the NF-F12 after 5 years of continuous use.

Low-Noise Adaptor

Noctua NF-F12 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 1500 to 1200rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1200rpm or to cap the maximum speed when using automatic PWM control.

Extensive cabling options

The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-F12 fan to the same PWM fan header for automatic control.

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer’s warranty.

Specifications :

Size120x120x25 mm
Mounting hole spacing105×105 mm
Connector & pin-configuration4-pin PWM
Cable length20cm + 30cm NA-EC1 extension cable
BearingSSO2
Blade geometryHeptaperf™
Frame technology
Rotational speed (+/- 10%)1500 RPM
Rotational speed with L.N.A. (+/- 10%)1200 RPM
Min. rotational speed (PWM, +/-20%)300 RPM
Airflow93,4 m³/h
Airflow with L.N.A.74,3 m³/h
Acoustical noise22,4 dB(A)
Acoustical noise with L.N.A.18,6 dB(A)
Static pressure2,61 mm H₂O
Static pressure with L.N.A.1,83 mm H₂O
Max. input power0,6 W
Max. input current0,05 A
Operating voltage12 V
Voltage PWM signal5 V
MTTF> 150.000 h

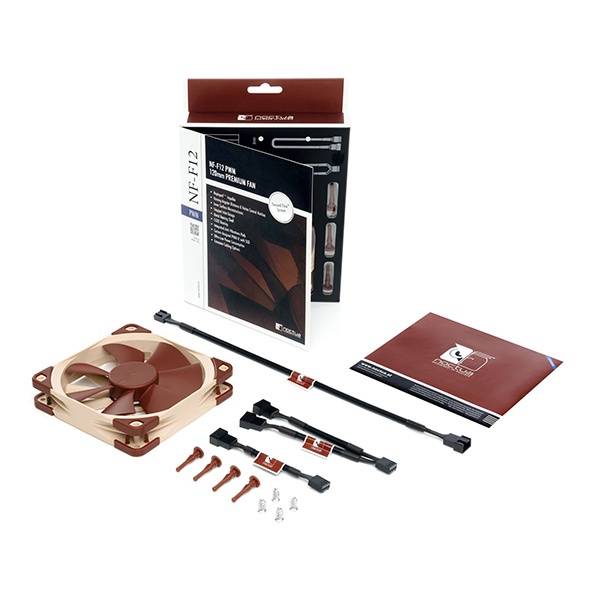

Scope of delivery
  • Low-Noise Adaptor (L.N.A.)
  • 4-pin y-cable
  • 30cm extension cable
  • 4 Vibration-Compensators
  • 4 Fan screws
Warranty6 Years

Additional information

Weight1 kg
Brand

Noctua

Available Models

NF-F12

EAN/UPC

4716123314660

Size

120 MM
