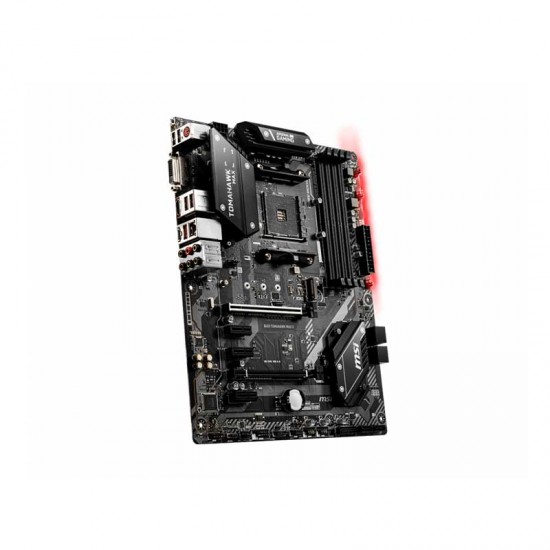

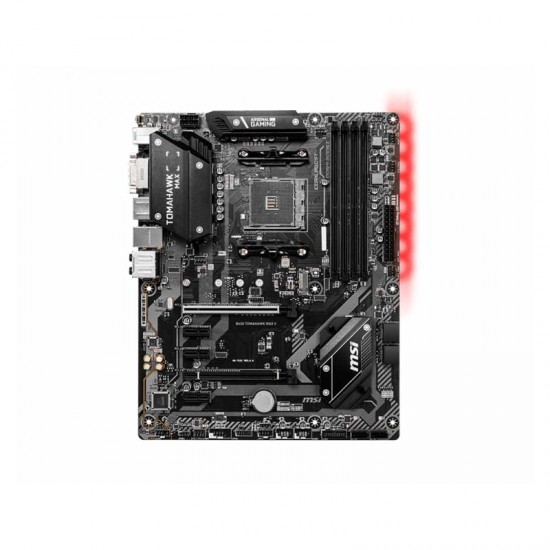

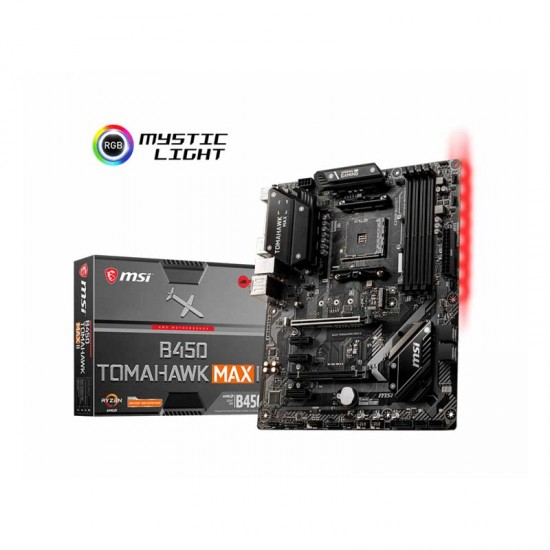

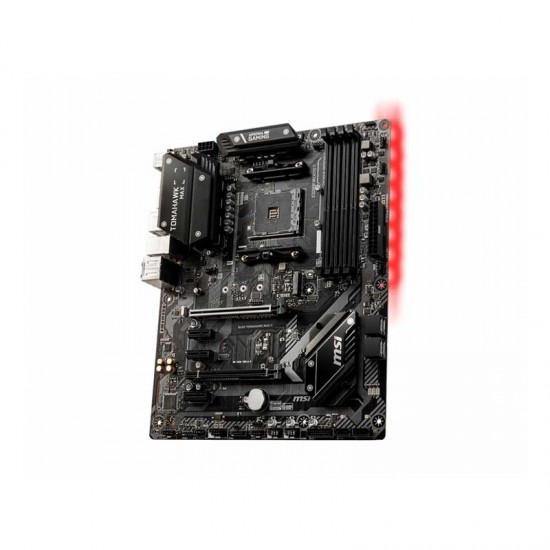

MSI B450 Tomahawk Max II Motherboard

10,199 (Inclusive of GST)

Brand:

Out of stock

Email when back in stock

MSI B450 Tomahawk Max II AMD RYZEN B450 ATX AM4 Socket  Gaming Motherboard

Overview :

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 4133(OC) MHz
  • Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
  • Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • DDR4 Boost:Advanced technology to deliver pure data signals for the best gaming performance and stability.
  • MULTI-GPU:Supports 2-Way AMD Crossfire™. By STEEL ARMOR PCI-E slot & STEEL PCI-E slot.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
  • Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.

Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without
installing a CPU, memory or graphics card.

DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.

Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.

Turbo M.2
Running at PCI-E Gen3 x4 maximizes performance for NVMe
based SSDs.

MULTI-GPU
Supports 2-way AMD CrossFire™ with optimal slot placement for
the best airflow.

Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.

AMD Turbo USB 3.2 Gen2
Powered by AMD, ensure an uninterrupted connection with more
stability and fastest USB speeds.

Specifications :

CPU (MAX SUPPORT)RYZEN 9
SOCKETAM4
CHIPSETAMD® B450 Chipset
DDR4 MEMORY1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133 by A-XMP OC mode
For AMD Other CPU
2667/2800/2933/3000/3066/3200/3466 by A-XMP OC mode
MEMORY CHANNELDual
DIMM SLOTS4
MAX MEMORY (GB)128
PCI-E X162
PCI-E GENGen3(PCI_E1), Gen2(PCI_E4)
PCI-E X13
SATAIII6
M.2 SLOT1
RAID0/1/10
TPM (HEADER)1
LAN1x Realtek® 8111H Gigabit LAN controller
USB 3.2 PORTS (FRONT)2(Gen1, Type A)
USB 3.2 PORTS (REAR)1(Gen2, Type C), 1(Gen2, Type A), 2(Gen1, Type A)
USB 2.0 PORTS (FRONT)4
USB 2.0 PORTS (REAR)2
SERIAL PORTS(FRONT)1
AUDIO PORTS (REAR)Realtek® ALC892/ALC897 Codec
DVI-D1
HDMI1
DIRECTX12
FORM FACTORATX
CROSSFIREY
OPERATING SYSTEMSupport for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Additional information

Weight5 kg
Dimensions25.4 × 0.1 × 35.5 mm
Brand

MSI

Socket

AM4

Chipset

B450

Form Factor

ATX

Memory Slot

4 Slot

Platfrom

AMD

EAN/UPC

4719072764562

Memory Slot Type

DDR4
