Gigabyte Nvidia GeForce RTX 5070 Windforce OC SFF 12GB GDDR7 Triple Fan Graphics Card :
Overview :
Experience high-performance gaming and content creation with the Gigabyte Nvidia GeForce RTX 5070 Windforce OC SFF 12GB GDDR7 Triple Fan Graphics Card. Featuring NVIDIA’s Blackwell architecture and DLSS 4, Gigabyte Nvidia GeForce RTX 5070 Windforce OC SFF 12GB GDDR7 Triple Fan Graphics Card compact GPU delivers exceptional graphics and AI-enhanced capabilities. The WINDFORCE cooling system with triple Hawk fans ensures optimal thermal performance, while Gigabyte Nvidia GeForce RTX 5070 Windforce OC SFF 12GB GDDR7 Triple Fan Graphics Card the reinforced structure and server-grade thermal conductive gel enhance durability and reliability.
Key Features :
GPU Architecture: NVIDIA Blackwell with DLSS 4 support
Memory: 12GB GDDR7, 192-bit interface

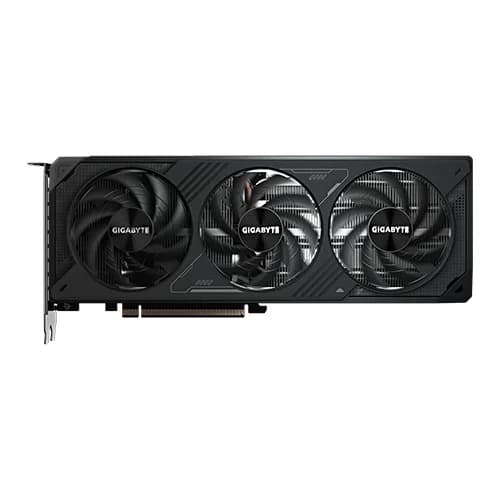

Cooling System: WINDFORCE with triple Hawk fans and vapor chamber
Form Factor: Small Form Factor (SFF) compliant

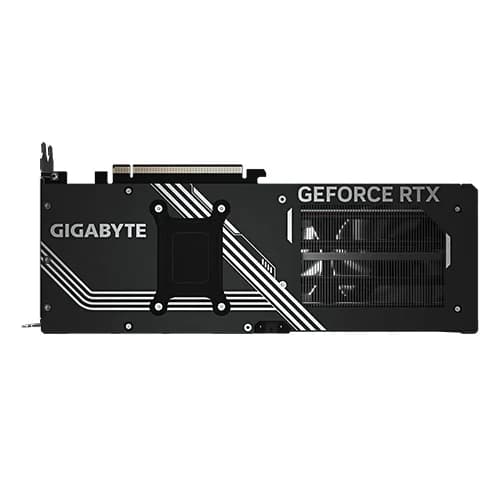

Build: Reinforced structure with metal backplate
Specifications :
| GPU | NVIDIA GeForce RTX 5070 (Blackwell architecture) |
| CUDA Cores | 6144 |
| Base Clock | 2325 MHz |
| Boost Clock | 2542 MHz |
| Memory | 12GB GDDR7 |
| Memory Interface | 192-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 672 GB/s |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| PCI Express | PCIe 5.0 x16 |

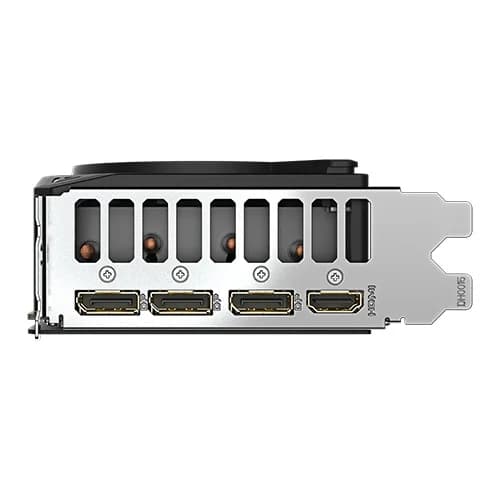

| Outputs | 3 x DisplayPort 2.1a, 1 x HDMI 2.1b |
| Max Resolution | 7680 x 4320 |
| Power Connectors | 1 x 16-pin (12VHPWR) |
| TDP | 250W |
| Recommended PSU | 750W |
| Dimensions (L x W x H) | 282 x 110 x 50 mm (Dual-slot) |
| Cooling System | WINDFORCE with triple Hawk fans and vapor chamber |
| RGB Lighting | Not specified |
| BIOS Modes | Not specified |
| Warranty | 3 years |
