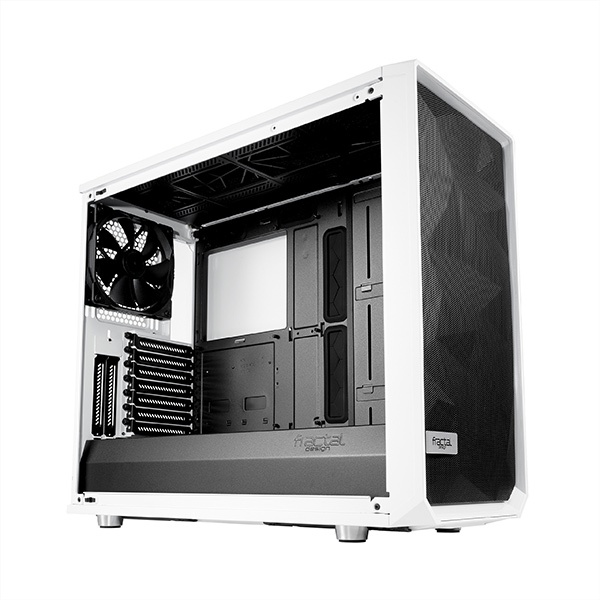

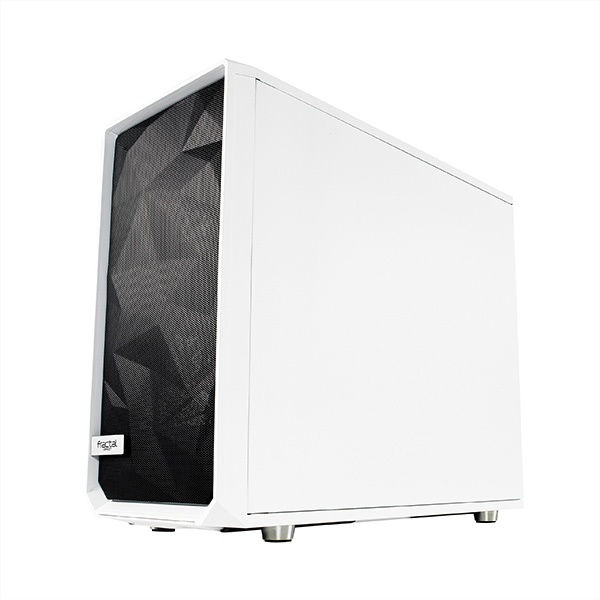

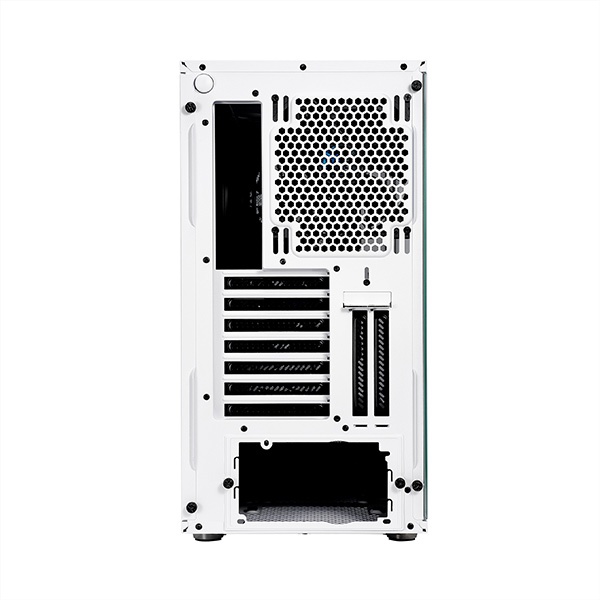

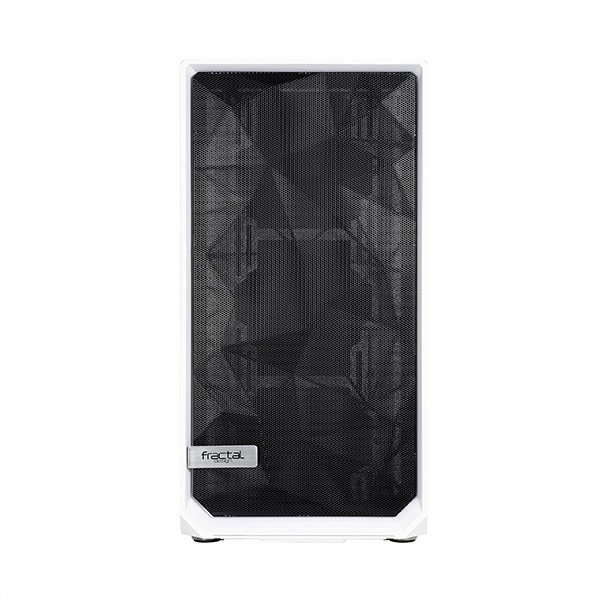

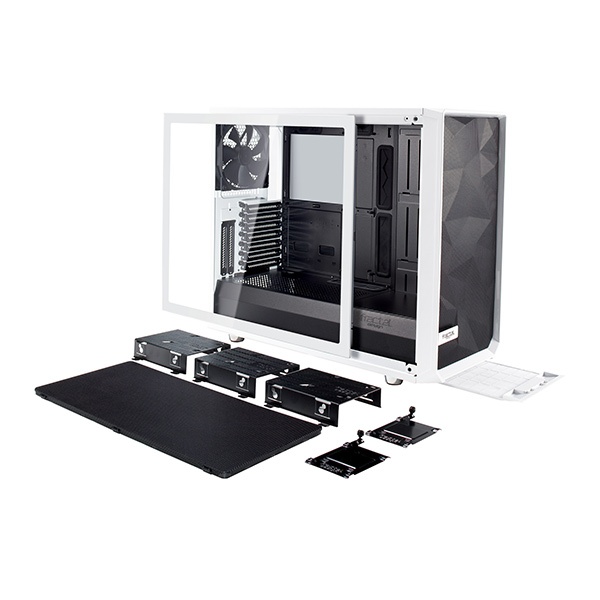

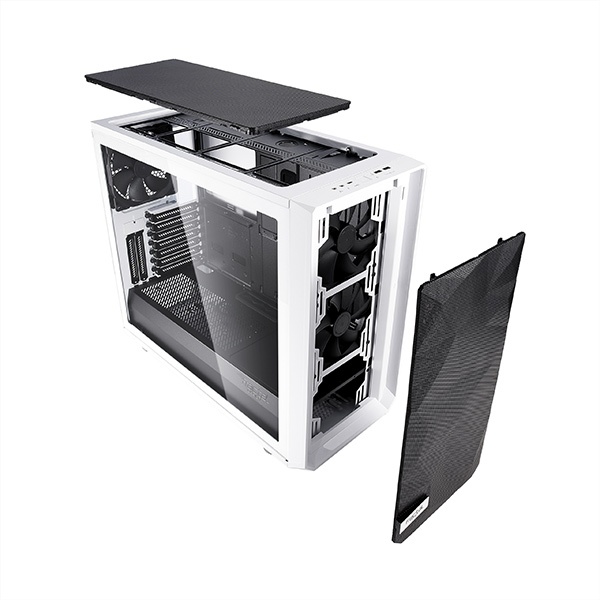

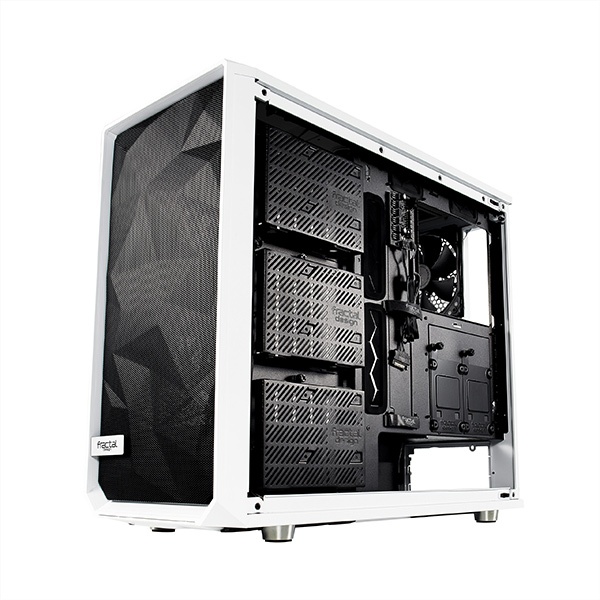

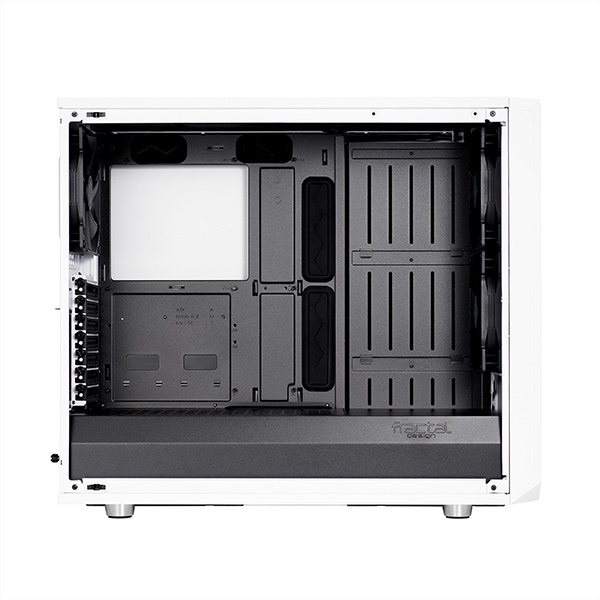

Fractal Design Meshify S2 TG Clear White Cabinet

9,799 (Inclusive of GST)


Out of stock

Email when back in stock

Fractal Design Meshify S2 TG Clear White Cabinet

Meshify exhibits powerful performance with bold aesthetics magnified to an all new degree in the larger and even more capable Meshify S2. In a unique instance of refinement eliminating constraint, the Meshify S2’s modular open layout is all but an end to hardware restrictions.

Meshify S2 boasts immense cooling capacity with three Dynamic X2 fans, nine total fan positions, 420/360/280mm radiator mounts, built-in pump and reservoir support, and an innovative removable top bracket. Other new additions include USB Type-C, a versatile PSU shroud, Flex-VRC Vertical GPU Riser support, and bolt-free tempered glass.

The largest Meshify case to date combines all the strengths of its predecessors with Fractal Design’s most revolutionary modular design elements. Its iconic angular mesh offers more than just a distinctive look—it augments air intake and unleashes the true potential of the open-layout PC.

Unrivalled performance demands to be seen in the Meshify S2

Key features :

● Modular high-airflow open layout design
● Stealth inspired angular mesh ventilation
● Seamless, bolt-free tempered glass (TG versions only)
● Push-to-lock latching on both side panels for easy access
● USB 3.1 Gen 2 Type-C with fast charge support and speeds up to 10Gbps
● Built for advanced liquid cooling with adjustable reservoir brackets, pre-drilled pump mounts, and an innovative removable top bracket with dedicated fill port
● Nine fan positions with clear airflow paths for massive cooling capacity
● Support for radiators up to 420 mm in the top, 360 mm in front, and 280 mm in the base
● Full-length ventilated PSU shroud with removable front cover and alternate SSD mounts
● Vertical 2.5 slot GPU support using the Flex VRC-25 vertical PCIE riser (sold separately)
● Concealed drive mounts for two SSDs and three HDDs with vibration dampened enclosures
● Three Dynamic X2 fans pre-installed as dual intakes and rear exhaust for balanced airflow
● Nexus+ Smart Hub allows motherboard control of up to three PWM devices and six case fans
● Easy to clean front, top, and base filters with full PSU coverage and convenient front access

Specifications :

Product CodeFD-CA-MESH-S2-WT-TGC
3.5″ or 2.5″ Drive capacity3
Dedicated 2.5″ drive capacity2 included, 4 positions total
Expansion slots7 + 2 vertical
Front ports1x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, Audio I/O
Total fan mounts9
Front fan3x 120/140 mm (2 x Dynamic X2 GP-14 included)
Top fan3x 120/140 mm or 1x 180 mm with 165 mm hole spacing
Rear fan1x 120/140 mm (1 x Dynamic X2 GP-14 included)
Bottom fan2x 120/140 mm
Dust filtersBottom fan + PSU, Front fans, Top panel
Cable routing grommetsYes
Fixed velcro strapsYes
Tool-less push-to-lockBoth side panels
Captive thumbscrewsHDD brackets, SSD brackets
Left side panelLight tint tempered glass
Right side panelSteel
Power supply typeATX
Motherboard compatibilityEATX (up to 285 mm wide), ATX, mATX, ITX
Front radiator120/240/360 mm, 140/280 mm
Top radiator120/240/360 mm, 140/280/420 mm (max 35 mm motherboard component height)
Rear radiator120 mm
Bottom radiator120/240 mm, 140/280 mm
PSU max length300 mm
GPU max length440 mm with front fan mounted
CPU cooler max height185 mm
Cable routing space23 mm
Vertical GPU Support (with Flex VRC-25)31mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling
Case dimensions (LxWxH)538 x 233 x 465 mm
Case dimensions w feet/protrusions/screws530 x 233 x 448 mm
Net weight10.04 kg
Package dimensions (LxWxH)535 x 325 x 650 mm
Package weight11.79 kg
Volume55.3 liters
Warranty2 Years


Additional information

Weight35 kg

Fractal Design




Mid Tower
