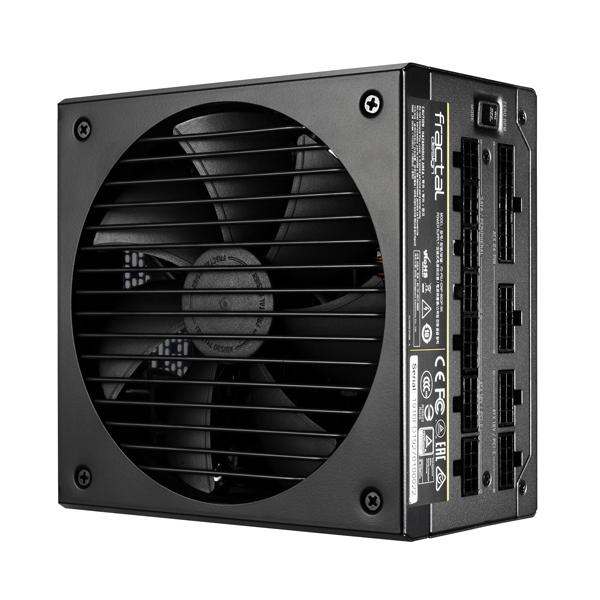

Fractal Design Ion+ 560W 80 Plus Platinum Power Supply

Original price was: ₹18,599.Current price is: ₹9,299. (Inclusive of GST)

Available Models: ION-PLUS-560W

Out of stock

Email when back in stock

Fractal Design Ion+ 560W Watts 80 Plus Platinum Fully Modular Power Supply

The Fractal Design Ion+ 560W Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality

  • UltraFlex DC wires for effortless cable-routing and connectors
  • Custom-tailored 140 mm fan with exceptionally low minimum speed
  • 80 PLUS® Platinum Efficiency for optimized electrical performance

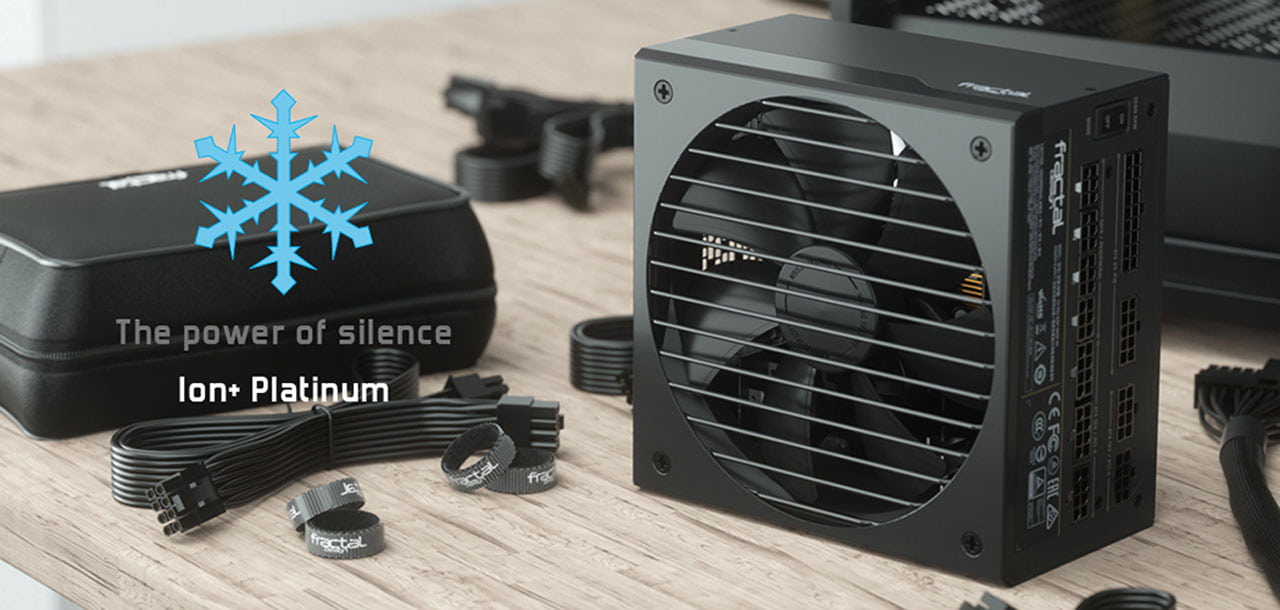

The power of silence
A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and under heavy use the custom-tailored 140 mm fan with FDB bearings barely breaks a whisper. The revolutionary UltraFlex cable in Fractal Design Ion+ 560W bends and twists effortlessly to make installation and cable-routing a breeze, thanks to an ultra-high strand count wire and special insulation.Ion+ is available now in 560, 660, 760 and 860 watt capacities, all with 80 PLUS® Platinum Efficiency, 10-year warranty, and a full electrical protection suite for your peace of mind.
Power with a plus

  • Fully modular design for reduced clutter and maximum ease of installation

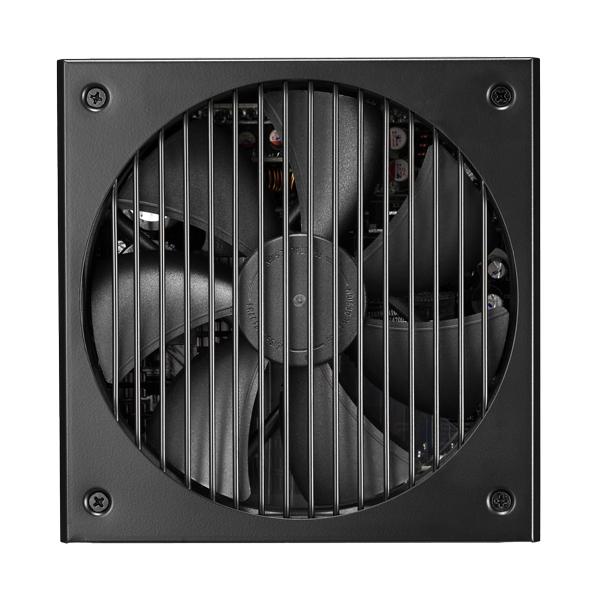

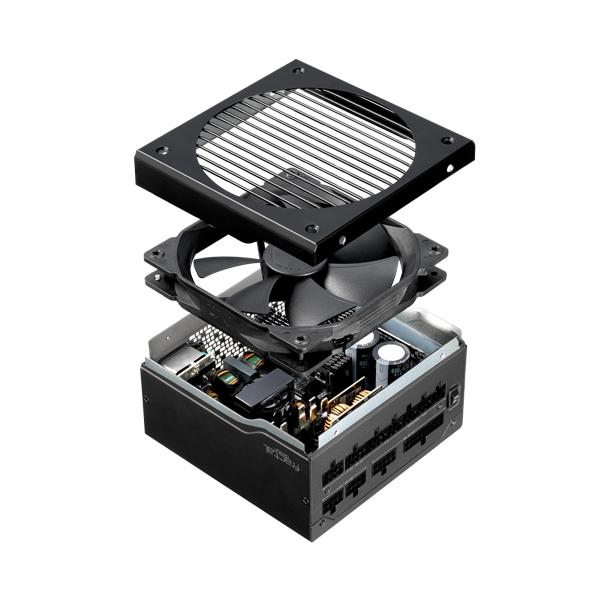

  • Equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan with low minimum speed and true long-life FDB bearing
  • Extensive 10 year warranty

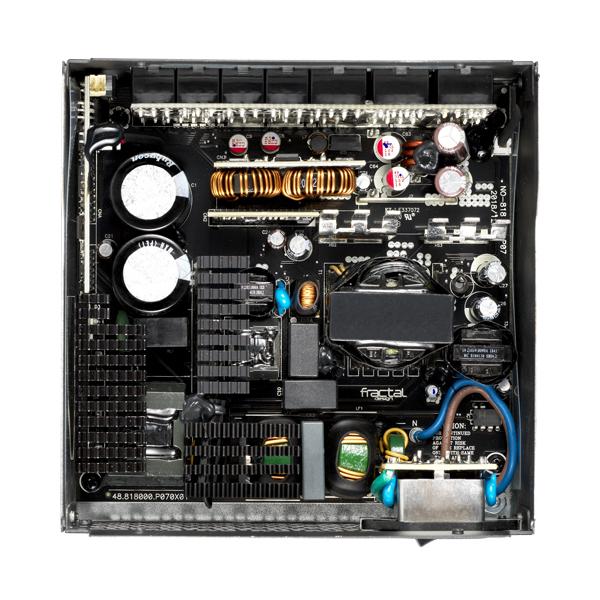

Japanese capacitors
Premium Japanese 105°C capacitors provide enhanced reliability and durability in Fractal Design Ion+ 560W

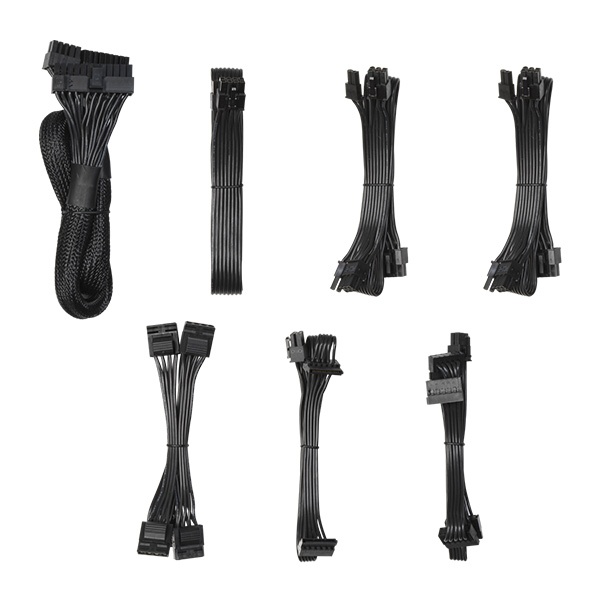

UltraFlex Cables
Fractal Design UltraFlex DC wires in Fractal Design Ion+ 560W have game-changing flexibility for cable-routing and connectors that twist and bend to fit your installation—not fight it

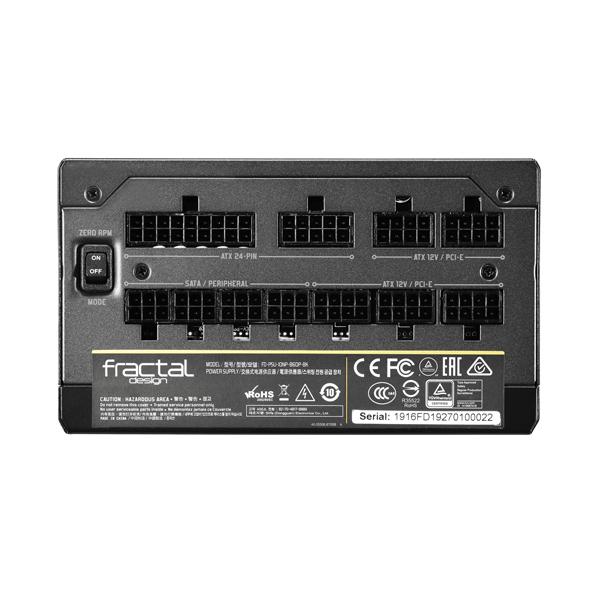

Zero RPM
User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
More power, less heat
The Fractal Design Ion+ 560W Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating little heat as possible.

  • 80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat
  • Outstanding output quality with tight voltage regulation and extremely low noise and ripple
  • Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection


80 PLUS® CertificationPlatinum
Modular cablesFully modular
Cable typeModular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire
Fan typeCustomized 140 mm FDB bearing Fractal Design Dynamic Series fan
Maximum operating temperature at full load50° C
Semi-passive operationYes, user selectable (Zero RPM)
Sleep State ComplianceC6/C7
Protection featuresOver voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection
Approvals & CertificationsCE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Life expectancy (MTBF) at max output load100,000 hours
Input voltage
100-240V AC
Input frequency50-60 Hz
Input current10A/5A
Number of 12V rails1
PSU specification complianceATX12V 2.4 / EPS12V 2.92
Standby efficiencyErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
Unit measurements150 x 150 x 86 mm
Unit weight (unit only)1.61 kg
ATX 24-pin1
ATX12V 4+4 pin / EPS12V 8-pin1
PCIe 6+2 pin4
Cable configuration (length between connectors)
ATX 24-pin600
ATX12V 4+4 pin700
EPS12V 8-pin600
PCIe 6+2 pin550+120
SATA400+120+120+120, 650+120
DC output
3.3 V20A
5 V20A
3.3 V and 5 V combined110W
12 V46.6A
-12 V0.3A
5 V Standby (+5 Vsb)3A
Total Power560W
Package dimensions (W x H x D)325 x 110 x 210 mm
Package weight2.6 kg
Package contentIon+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual
Warranty10 Years

Additional information

Weight5 kg


Available Models





560 Watt
