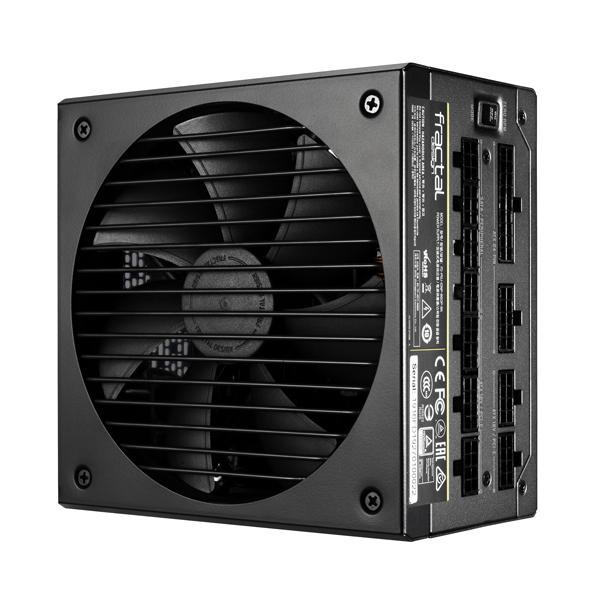

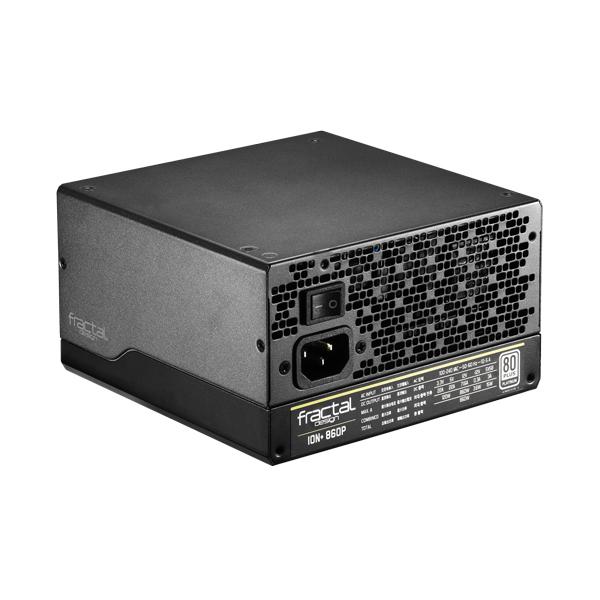

Fractal Design Ion+ 860W Watts 80 Plus Platinum Fully Modular Power Supply
The Fractal Design Ion+ 860W Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality
- UltraFlex DC wires for effortless cable-routing and connectors
- Custom-tailored 140 mm fan with exceptionally low minimum speed
- 80 PLUS® Platinum Efficiency for optimized electrical performance
The power of silence
A user selectable semi-passive Zero RPM mode maintains pure silence under light loads, and under heavy use the custom-tailored 140 mm fan with FDB bearings barely breaks a whisper. The revolutionary UltraFlex cable in Fractal Design Ion+ 860W bends and twists effortlessly to make installation and cable-routing a breeze, thanks to an ultra-high strand count wire and special insulation.

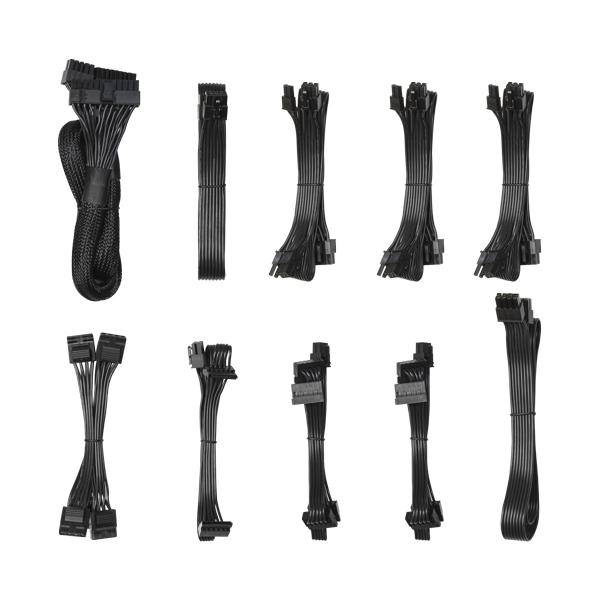

Introducing the game-changing UltraFlex cable
Thanks to an ultra-high strand count wire and special insulation, our UltraFlex DC wire bends and twists effortlessly to fit your installation instead of fighting it.
- Combining an increased strand-count and reduced diameter of just 0.08 mm allows thinner, more flexible cables
- Specially formulated insulation increases flexibility without impacting efficiency or current capacity
- Cables flex and flow with ease for near-effortless routing and superior cable management opportunities
- Connectors bend and twist to make for easy connections in tight spaces with less resistance and strain

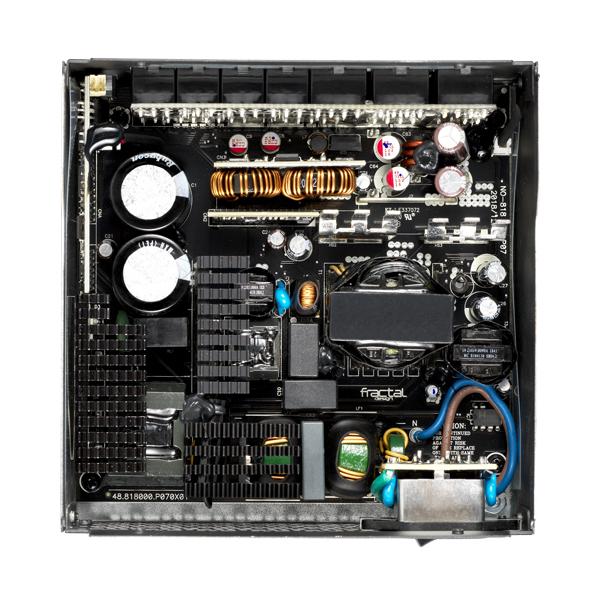

Japanese capacitors
Premium Japanese 105°C capacitors provide enhanced reliability and durability in Fractal Design Ion+ 860W
UltraFlex Cables
Fractal Design UltraFlex DC wires in Fractal Design Ion+ 860W have game-changing flexibility for effortless cable-routing and connectors that twist and bend to fit your installation—not fight it
Zero RPM
Fractal Design Ion+ 860W has User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
More power, less heat
The Fractal Design Ion+ 860W Platinum is rated 80 PLUS® Platinum Efficiency for its ability to offer electrical output of the highest quality, while generating as little heat as possible.
- 80 PLUS® Platinum Efficiency for optimized electrical performance and reduced heat generation
- Outstanding output quality with tight voltage regulation and extremely low noise and ripple
- Premium Japanese 105°C capacitors provide enhanced reliability and durability
- Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Current Protection and Over Temperature Protection

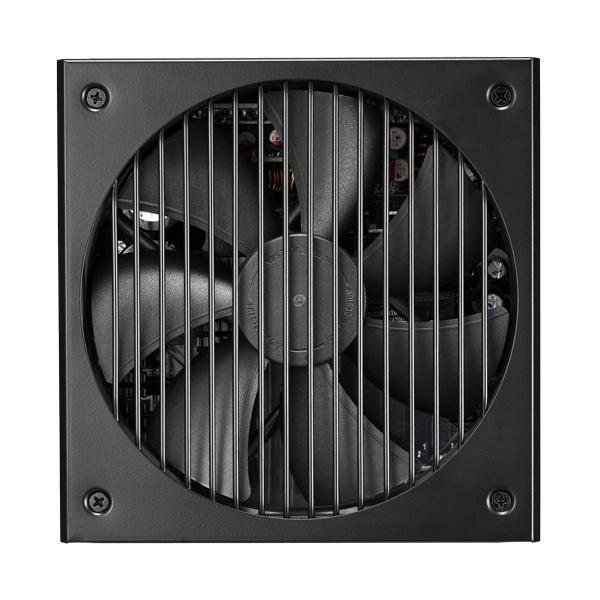

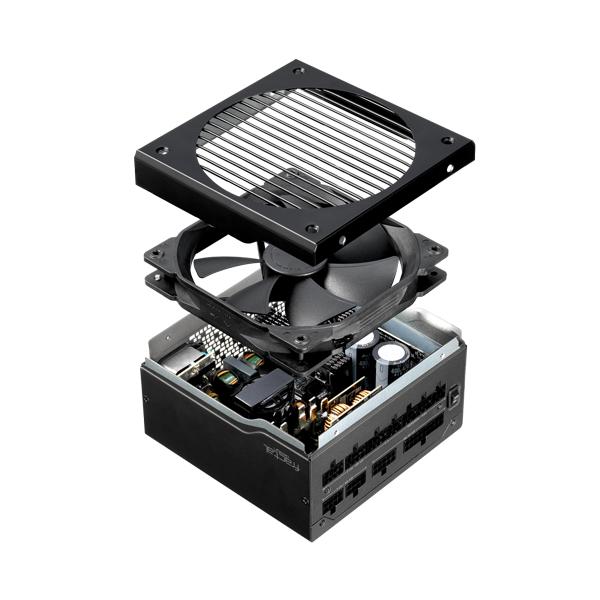

Slow, silent and smooth
The Fractal Design Ion+ 860W Platinum comes equipped with a custom-tailored Fractal Design Dynamic Series 140 mm fan that offers exceptionally low minimum speed as well as true long-life Fluid Dynamic Bearing.
- Fractal Design Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing
- User selectable Zero RPM mode allows for either silent, passive operation in low load situations or continuous low speed fan operation for additional cooling
Specifications
| Model | FD-PSU-IONP-860P-BK-EU |
| 80 PLUS® Certification | Platinum |
| Modular cables | Fully modular |
| Cable type | Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire |
| Fan type | Customized 140 mm FDB bearing Fractal Design Dynamic Series fan |
| Maximum operating temperature at full load | 50° C |
| Semi-passive operation | Yes, user selectable (Zero RPM) |
| Sleep State Compliance | C6/C7 |
| Capacitors | Japanese |
| Protection features | Over voltage protection. Under voltage protection. Over power protection. Short circuit protection. Over current protection. Over temperature protection |
| Approvals & Certifications | CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Life expectancy (MTBF) at max output load | 100,000 hours |
Input voltage | 100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Number of 12V rails | 1 |
| PSU specification compliance | ATX12V 2.4 / EPS12V 2.92 |
| Standby efficiency | ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb) |
| Unit measurements | 150 x 150 x 86 mm |
| Unit weight (unit only) | 1.665 kg |

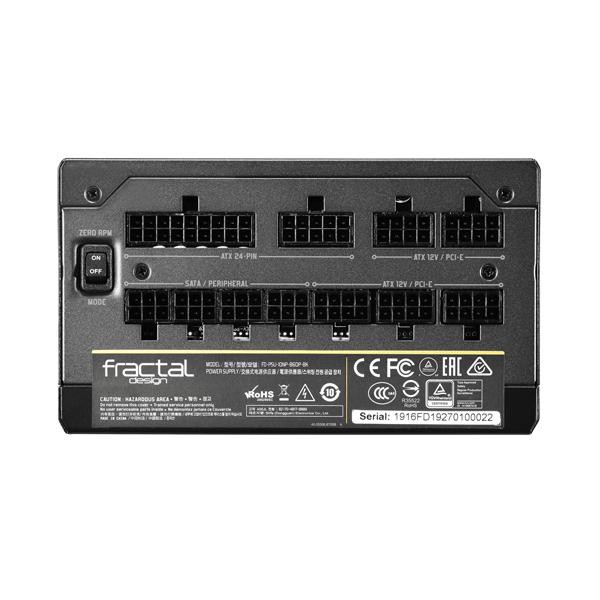

| Connectors | |
| ATX 24-pin | 1 |
| ATX12V 4+4 pin / EPS12V 8-pin | 2 |
| PCIe 6+2 pin | 6 |
| SATA | 10 |
| Peripheral | 4 |
| Cable configuration (length between connectors) | |
| ATX 24-pin | 600 |
| ATX12V 4+4 pin | 700 |
| EPS12V 8-pin | 600 |
| PCIe 6+2 pin | 550+120 mm x2 |
| SATA | 400+120+120+120 mm & 650+120 mm |
| Peripheral | 400+120+120+120 |

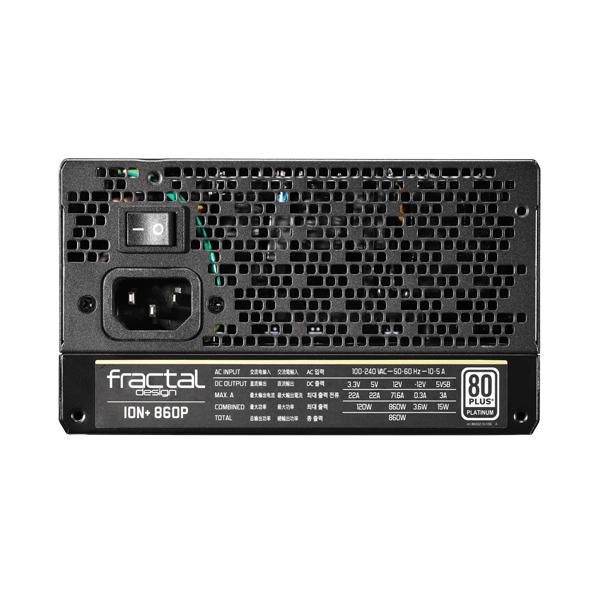

| DC output | |
| 3.3 V | 22A |
| 5 V | 22A |
| 3.3 V and 5 V combined | 120W |
| 12 V | 71.6 A |
| -12 V | 0.3A |
| 5 V Standby (+5 Vsb) | 3A |
| Total Power | 860 W |
| Other | |
| Package dimensions (W x H x D) | 325 x 110 x 210 mm |
| Package weight | 2.975 kg |
| Package content | Ion+ PSU with protective bag, Modular cables in a convenient storage bag, Screw pack with Velcro cable ties, AC power cord (localized), User manual |
| Warranty | 10 Years |
