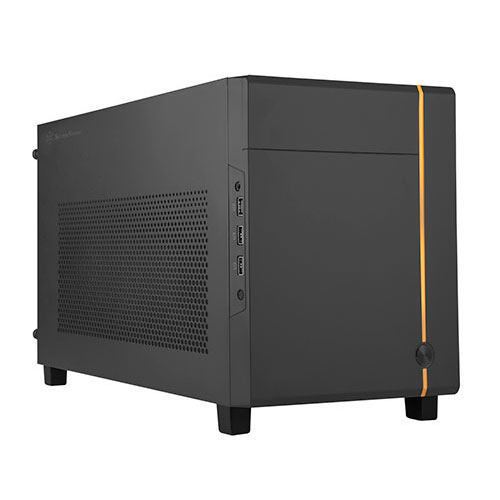

Silverstone SUGO 14 Mini-ITX Cabinet SST-SG14B
Overview :
￭ Supports 3 slot full length graphics cards with adjustable graphics card holder
￭ Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU
￭ Supports up to 240mm radiators
￭ Modular design with 4 removable panels (top, left, right, bottom)
￭ Silverstone SUGO 14 Mini have Different configurations support various storage components for 5.25″, 3.5″ and 2.5″
￭ Front I/O port includes: USB 3.0 x 2, USB 2.0 x 1, combo audio x 1
High compatibility with no compromise
Unlike most SFF Mini-ITX chassis on the market, SUGO 14 is capable of fitting a 3 slot full length graphics cards on the left side and up to 240mm radiators on the right side.
Exceptional usability & upgradability
Modular design allows for removal of 4 panels which eases the build process and ease of upgradability at a later date.
Substantial compatibility beyond expectations
SUGO 14’s chassis supports 3 x 2.5″ SSDs, and its multi-purpose bracket allows for different configurations to support various cooling and storage components
2-way placement
SUGO 14 comes included with 8 foot pads, the design allows users the flexibility in choosing how they wish to place their chassis
Specification :
| Model No. | SST-SG14B (black) |
| Material | Plastic front panel, steel body |
| Motherboard | Mini-DTX, Mini-ITX |
| Drive bay | |
| External | 5.25″ x 1 (without radiator and 3.5″ x 1 installed) |
| Internal | 3.5″ x 2 (without radiator and 5.25″ installed) |
| 2.5″ x 3 | |
| Cooling system | |
| Front | — |
| Rear | 120mm / 140mm x 1 (120mm black fan x 1 included) |
| Side | 120mm / 140mm x 2 |
| Top | — |
| Bottom | — |
| Internal | — |
| Radiator support | |
| Front | — |
| Rear | 120mm |
| Side | 120mm / 240mm |
| Bottom | — |
| Expansion slot | 3 |
| Front I/O port | USB 3.0 x 2 |
| USB 2.0 x 1 | |
| Combo audio x 1 | |
| Power supply | Standard PS2(ATX) |
| Limitation of VGA card | Length: 330mm |
| Width: 148mm | |
| Limitation of CPU cooler | Air cooler: 182mm (without top fan) |
| 240mm AIO water block: 55mm | |
| Limitation of PSU | 150mm |
| Net weight | 4.89 kg |
| Dimension | 247mm (W) x 215mm (H) x 368.1mm (D), 19.55 liters |
| 9.72″ (W) x 8.46″ (H) x 14.49″ (D), 19.55 liters |
