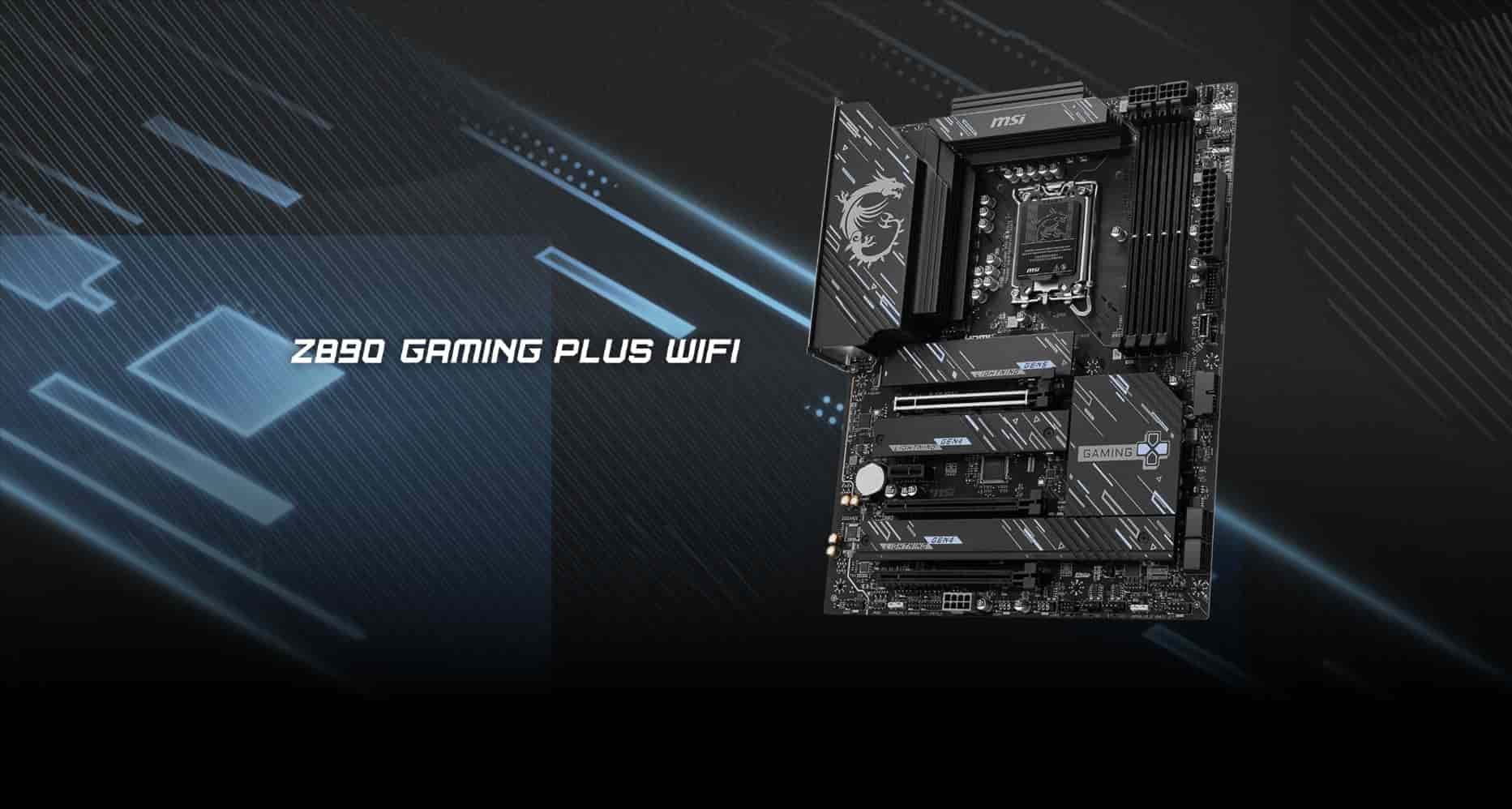

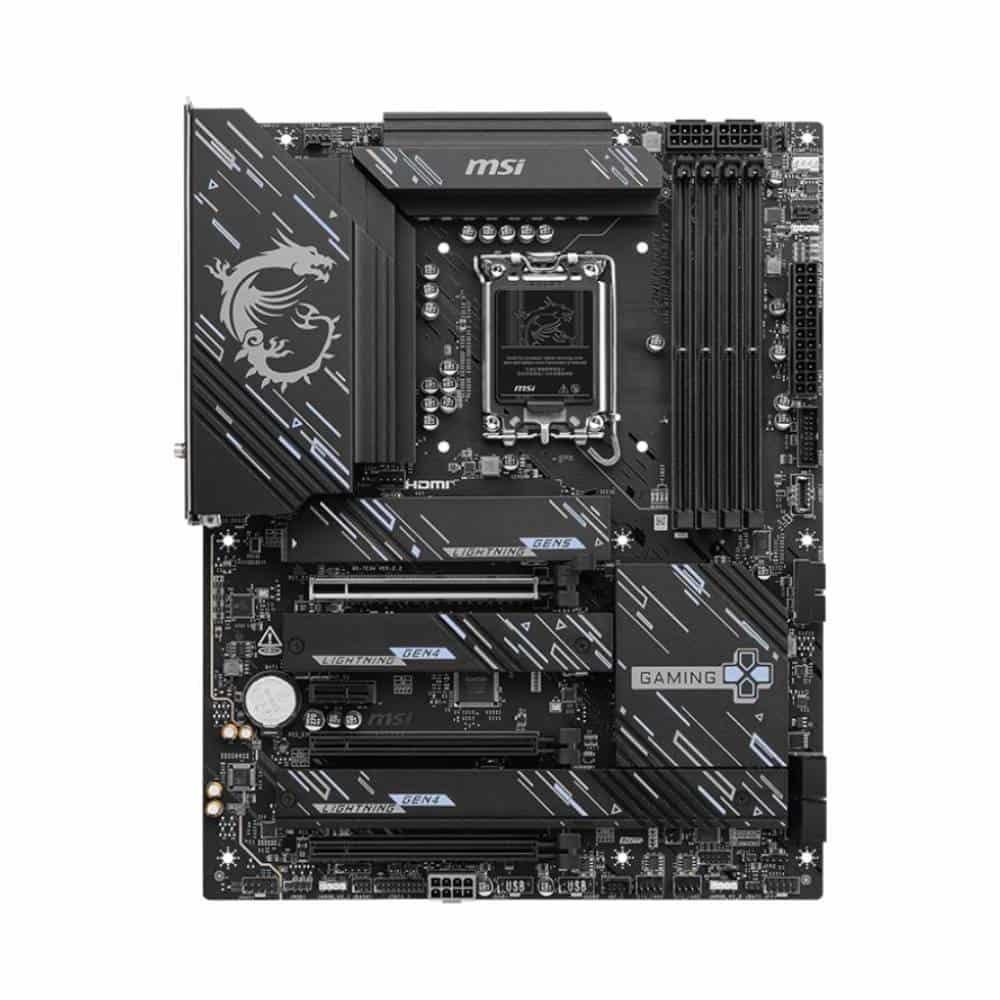

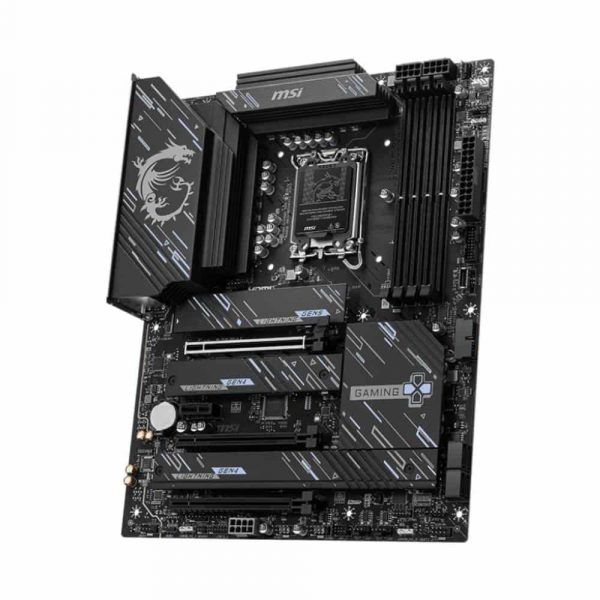

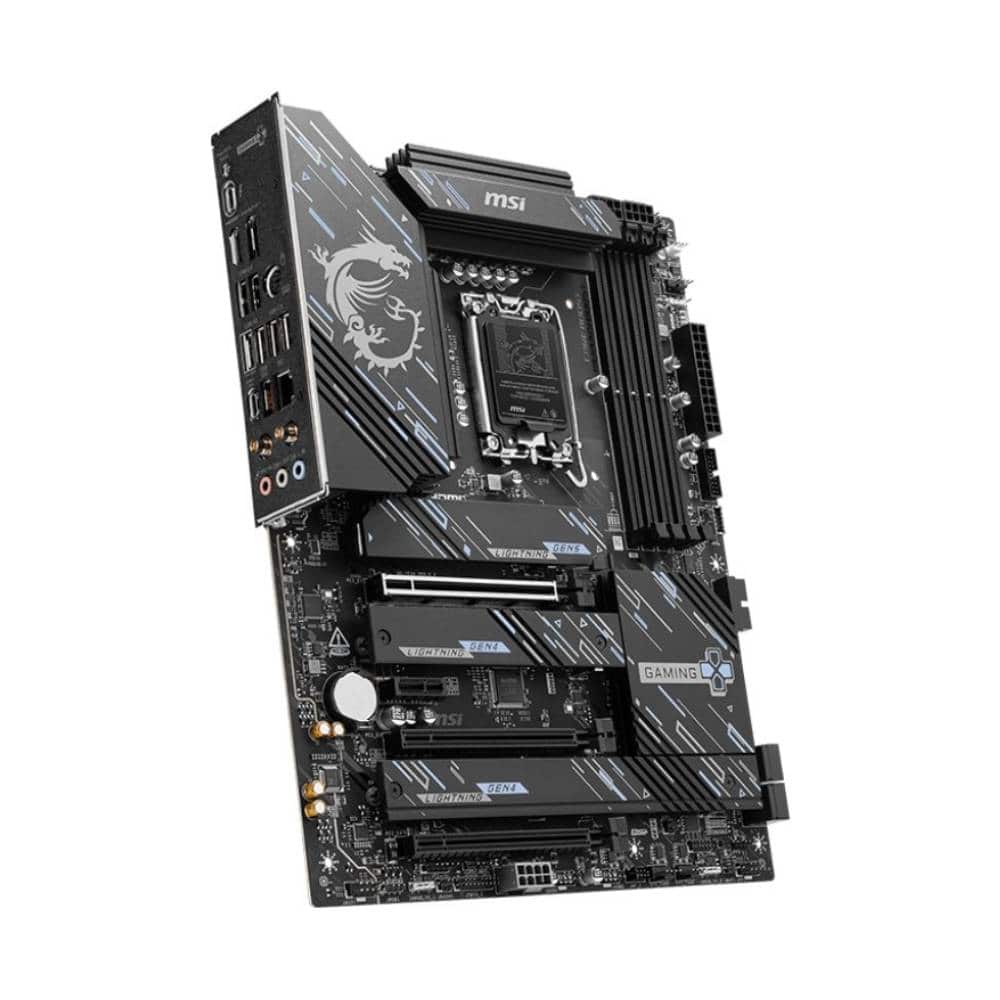

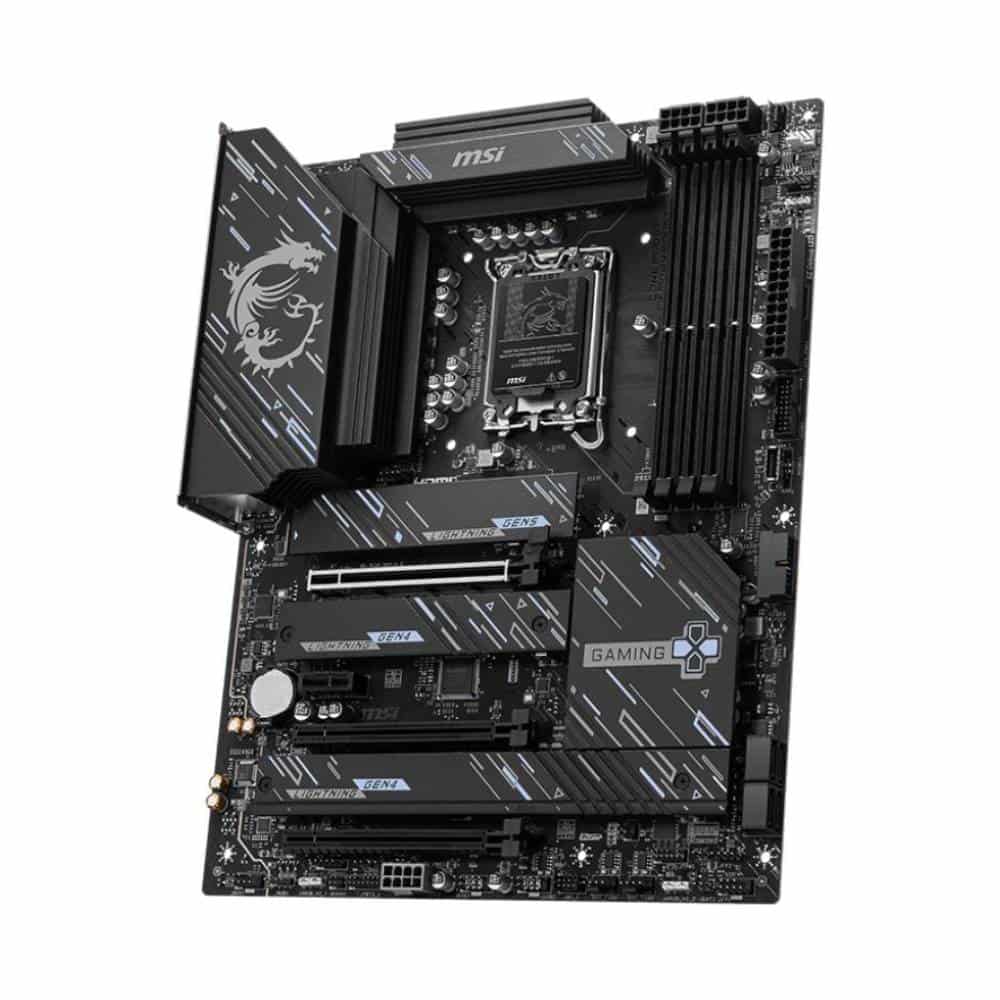

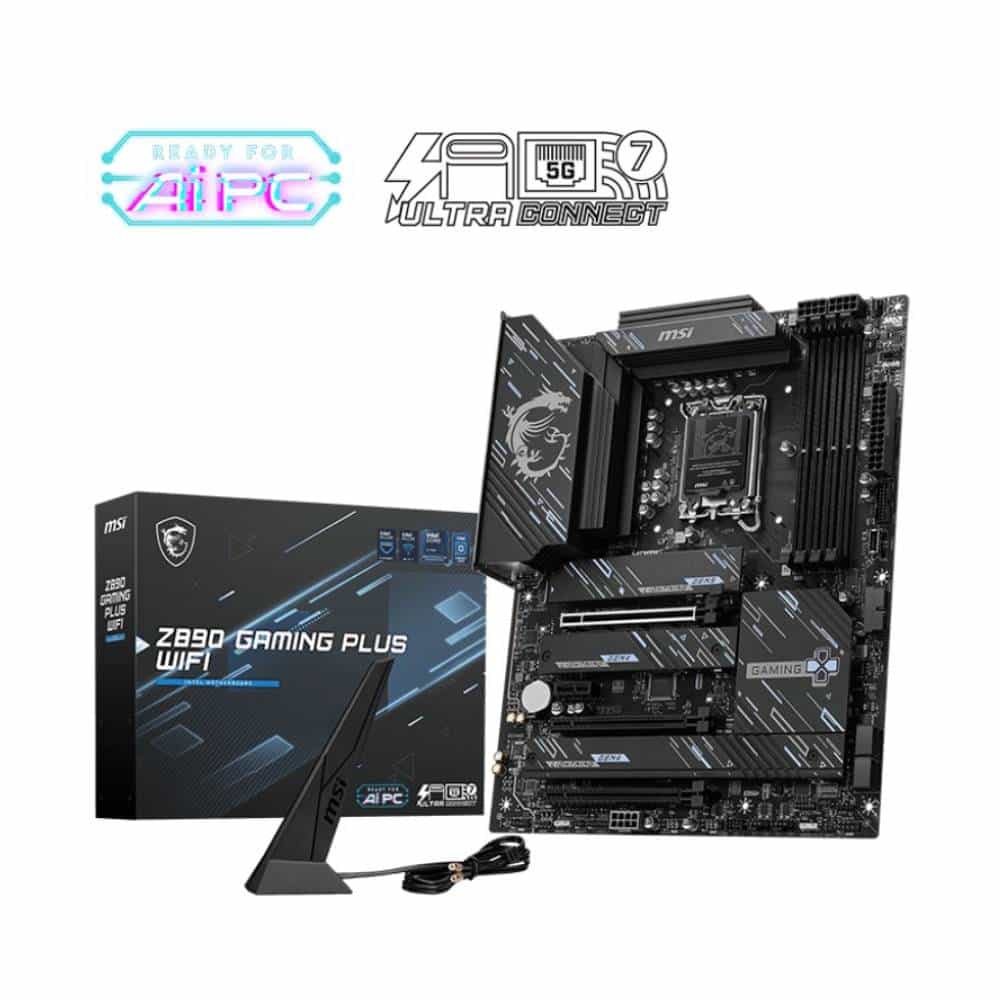

MSI Z890 Gaming Plus WiFi Intel LGA 1851 ATX DDR5 WiFi 7 PCIe 5.0 Gaming Motherboard :
Overview :
The MSI Z890 Gaming Plus WiFi is a high-performance ATX motherboard designed for gamers and PC enthusiasts seeking advanced features and robust connectivity. Built on the Intel Z890 chipset, it supports Intel® Core™ Ultra Series 2 processors via the LGA 1851 socket, offering compatibility with the latest CPUs. With support for DDR5 memory up to 9200+ MHz (OC), PCIe 5.0, and Wi-Fi 7, this motherboard ensures robust performance for various computing needs.
Features :
- Supports Intel® Core™ Ultra Series 2 processors (LGA 1851)
- DDR5 memory support up to 9200+ MHz (OC), up to 256GB

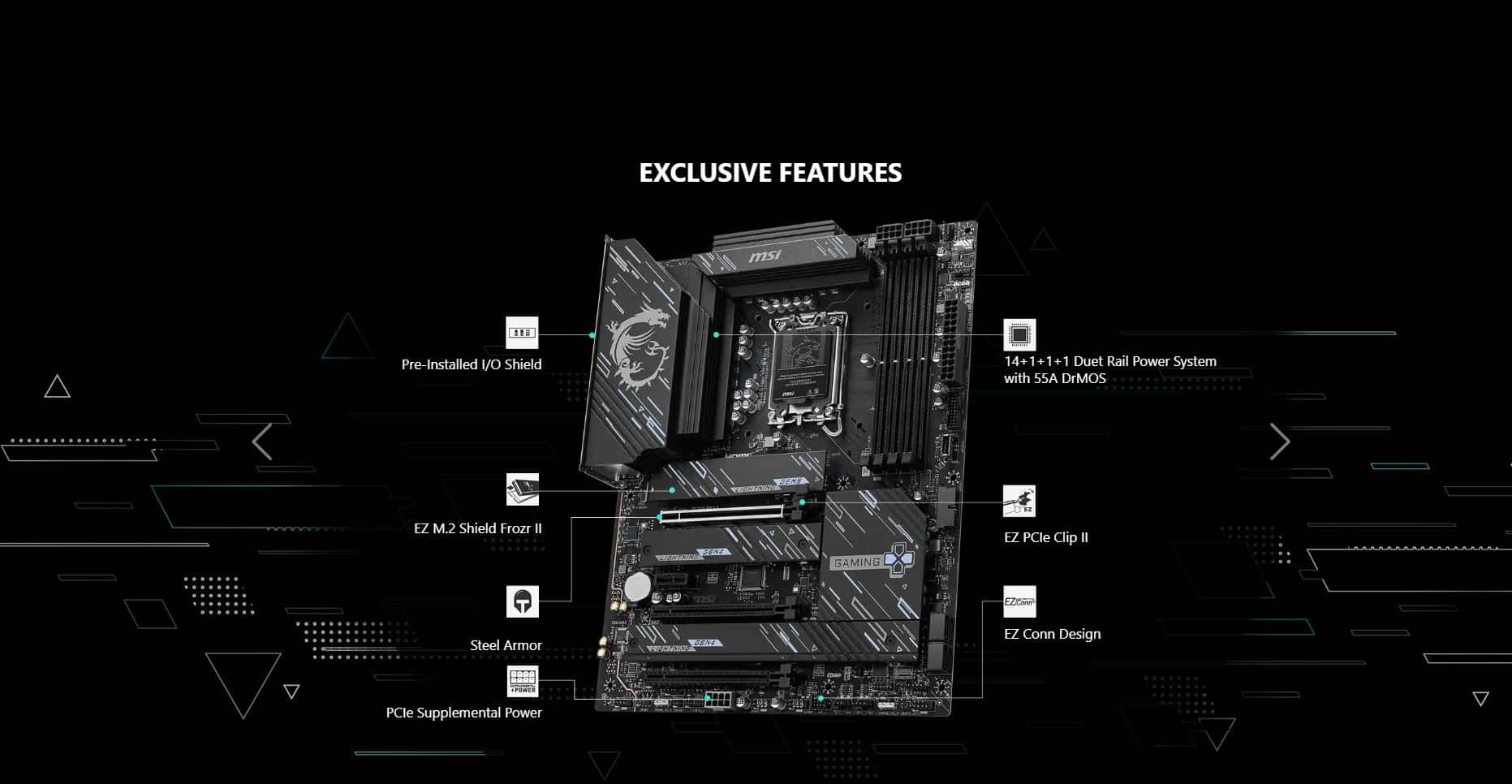

- 14+1+1+1 Duet Rail Power System with 55A DrMOS
- 1 x PCIe 5.0 x16 slot for next-gen graphics cards
- 1 x M.2 PCIe 5.0 slot and 3 x M.2 PCIe 4.0 slots with EZ M.2 Shield Frozr II

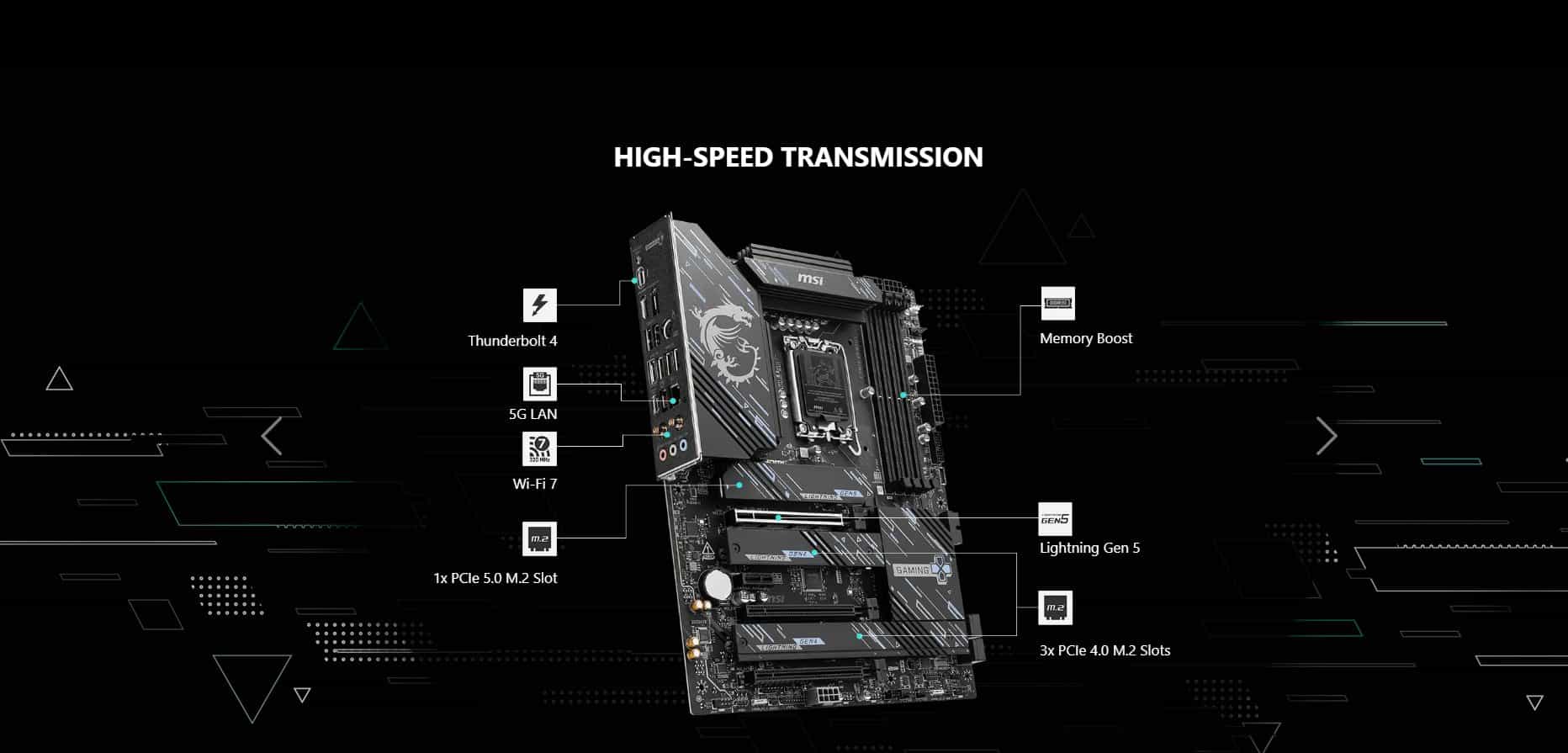

- Wi-Fi 7 and 5G LAN for high-speed networking
- 2 x Thunderbolt 4 ports for 40Gbps data transfer and 8K display support
- Audio Boost 5 with Realtek ALC897 codec
- Extended Heatsink Design with heat-pipe for enhanced thermal performance
- EZ Debug LED, Smart Button, and Pre-installed I/O Shield for streamlined installation
Specifications :
| Model | MSI Z890 GAMING PLUS WIFI |
| CPU Socket | LGA 1851 |
| Chipset | Intel Z890 |
| Form Factor | ATX |
| Memory Support | DDR5, Dual Channel, 4 DIMMs, up to 9200+ MHz (OC), Max 256GB |
| Expansion Slots | 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1 |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4), 3 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s |

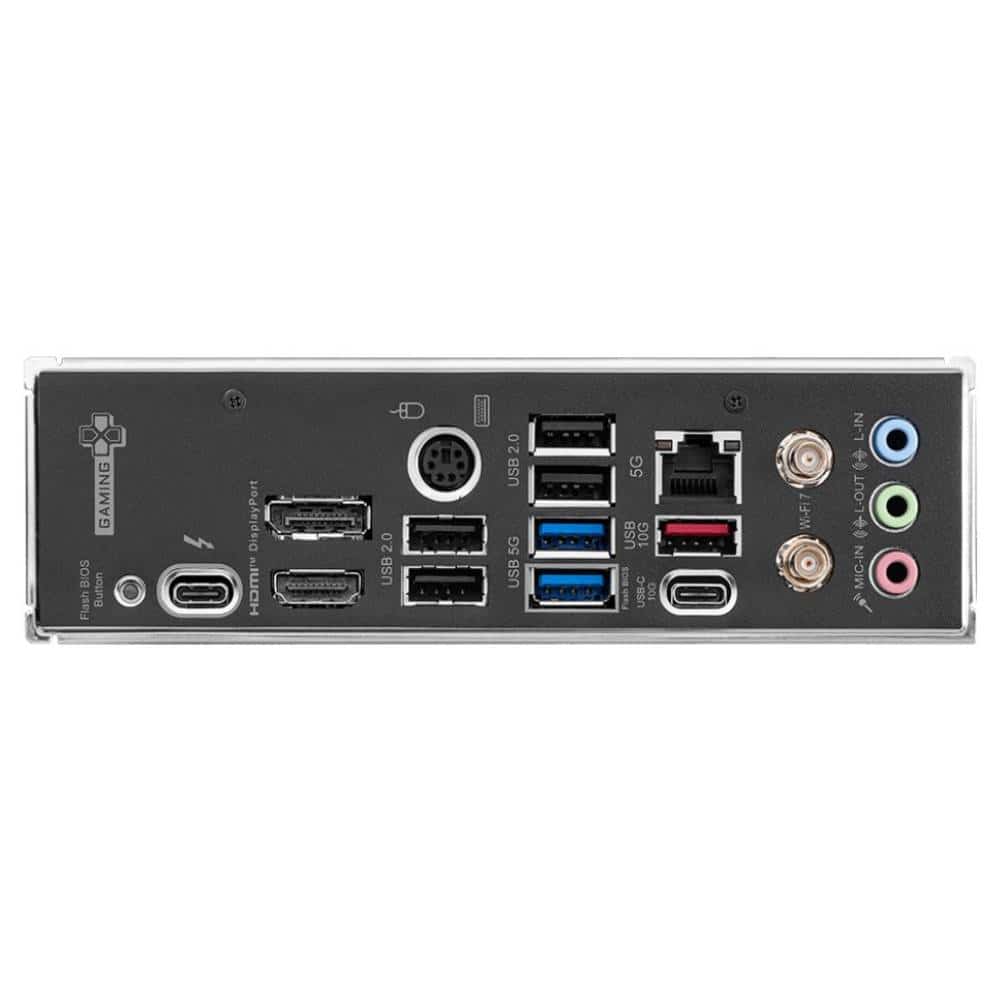

| USB Ports (Rear) | 2 x Thunderbolt 4 (USB-C), 1 x USB 3.2 Gen 2×2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| USB Ports (Internal) | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1 Headers, 2 x USB 2.0 Headers |
| Networking | Intel Wi-Fi 7, Killer 5G LAN, Bluetooth 5.4 |
| Audio | Realtek ALC897 with Audio Boost 5 |
| RGB Lighting | Mystic Light with ARGB & RGB headers |
| Power Phases | 14+1+1+1 Duet Rail VRM with 55A DrMOS |
| Cooling Features | Extended Heatsinks, Heat-pipe, M.2 Shield Frozr II, Multiple Fan Headers |
| BIOS Features | Click BIOS 5, Flash BIOS Button, EZ Debug LED, Smart Button |
| OS Compatibility | Windows 11 / 10 64-bit |
| Warranty | 3 Years |
