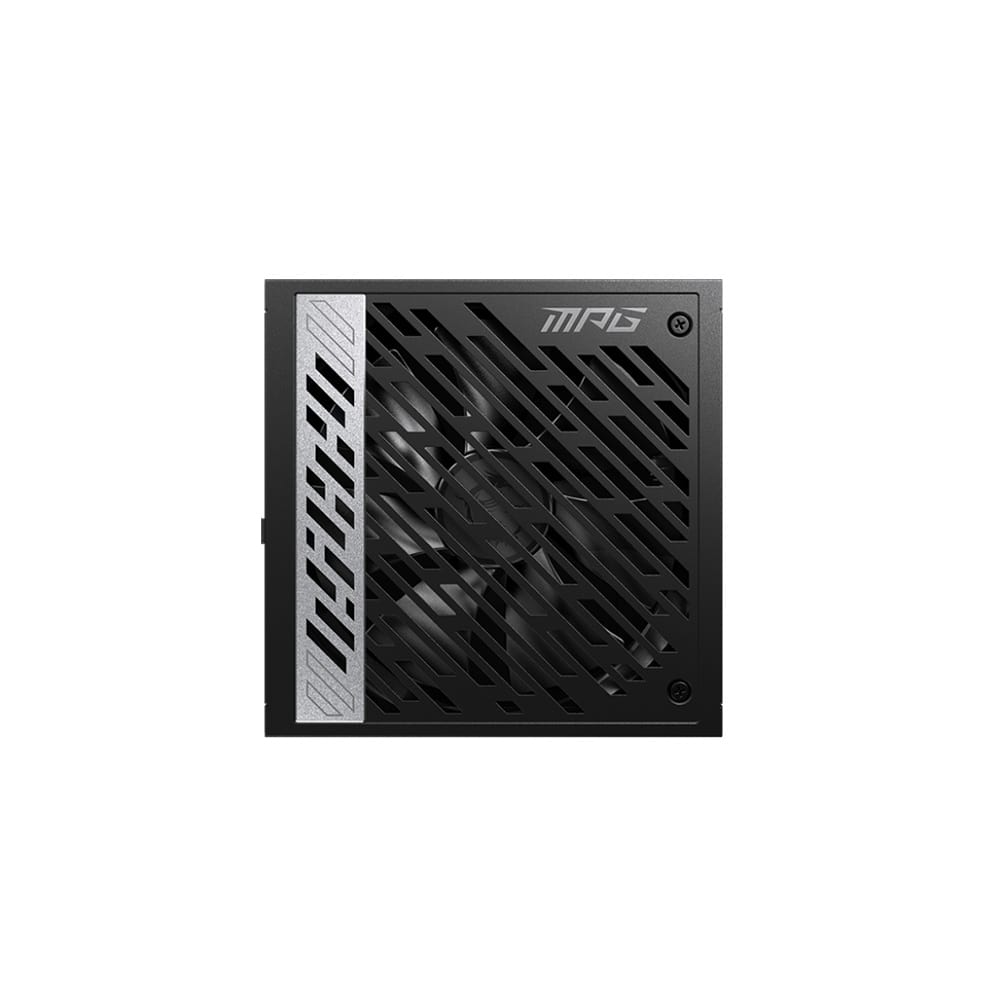

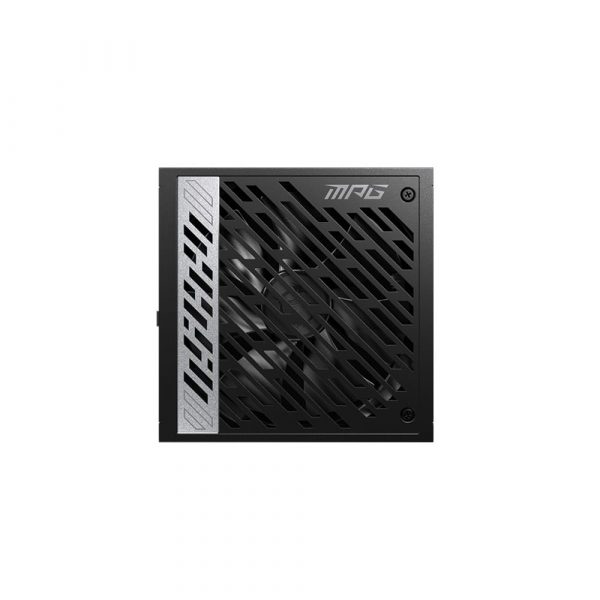

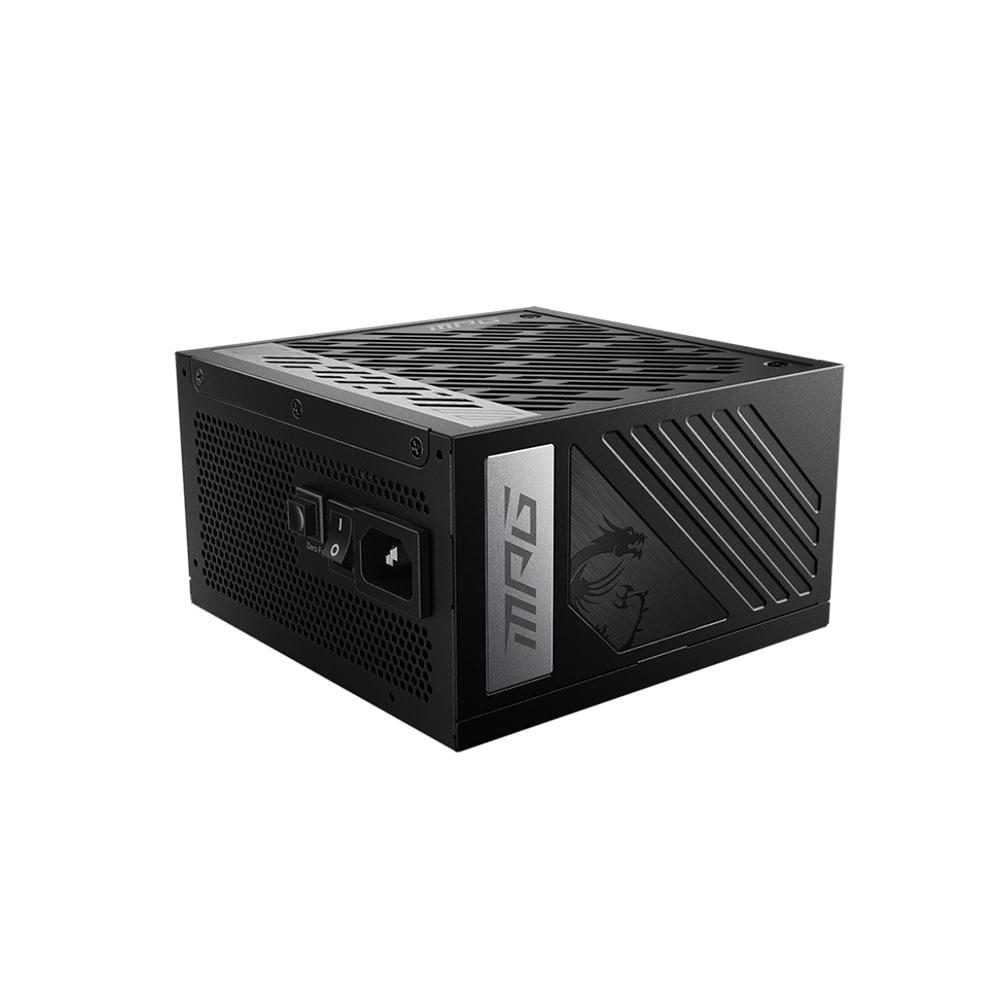

MSI MPG A850G PCIE5 ATX 3.0 850 Watts 80 Plus Gold Power Supply
Features:
- Supports Nvidia® GeForce RTXTM 40 Series graphics cards
- Full modular design
- Flat cables
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
Overview:
The MSI MPG A850G PCIE5 ATX 3.0 850 Watts 80 Plus Gold Power Supply brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
The MSI 850 watts atx 3.0 PSU showcases unique styles and color schemes with laser-like lines to create a masterful art piece with individuality, fully expressing the charm of MPG.
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
SINGLE-RAILED DESIGN
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s 5 CPU & PCI-E slots are more than plenty.
GPU SUPPORT FOR ALL
The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
SILENT OPERATION
THE MSI MPG A850G PCIE5 ATX 3.0 850 Watts 80 Plus Gold Power Supply IS CAPABLE OF QUIETLY OPERATING AT ALL TIMES WITHOUT DISTURBANCE.
o% RPM
The fan 0 RPM mode can stop the fan’s operation when TDP is below 40% to help with energy saving and providing silence.
*0% RPM Mode is on by default. Press the button to turn it off.
FLUID DYNAMIC BEARING
This power supply’s fan sports a fluid dynamic bearing, chosen to increase the life span of the fan while maintaining low noise level.
SAFETY & RELIABILITY
THE POWER SUPPLY IS HERE TO PROVIDE YOUR SYSTEM A WORRY FREE OPERATION UNDER ALL LOADINGS.
100% JAPANESE 105° C CAPACITORS
Aiming for unwavering product quality and performance stability, the MSI MPG A850GF gaming power supply comes with 100% Japanese 105° C capacitors and solid capacitors.
SYSTEM BUILD
THE MSI MPG A850G Pcie5 POWER SUPPLY CAN BE EASILY PLACED AND INSTALLED INTO YOUR BUILD

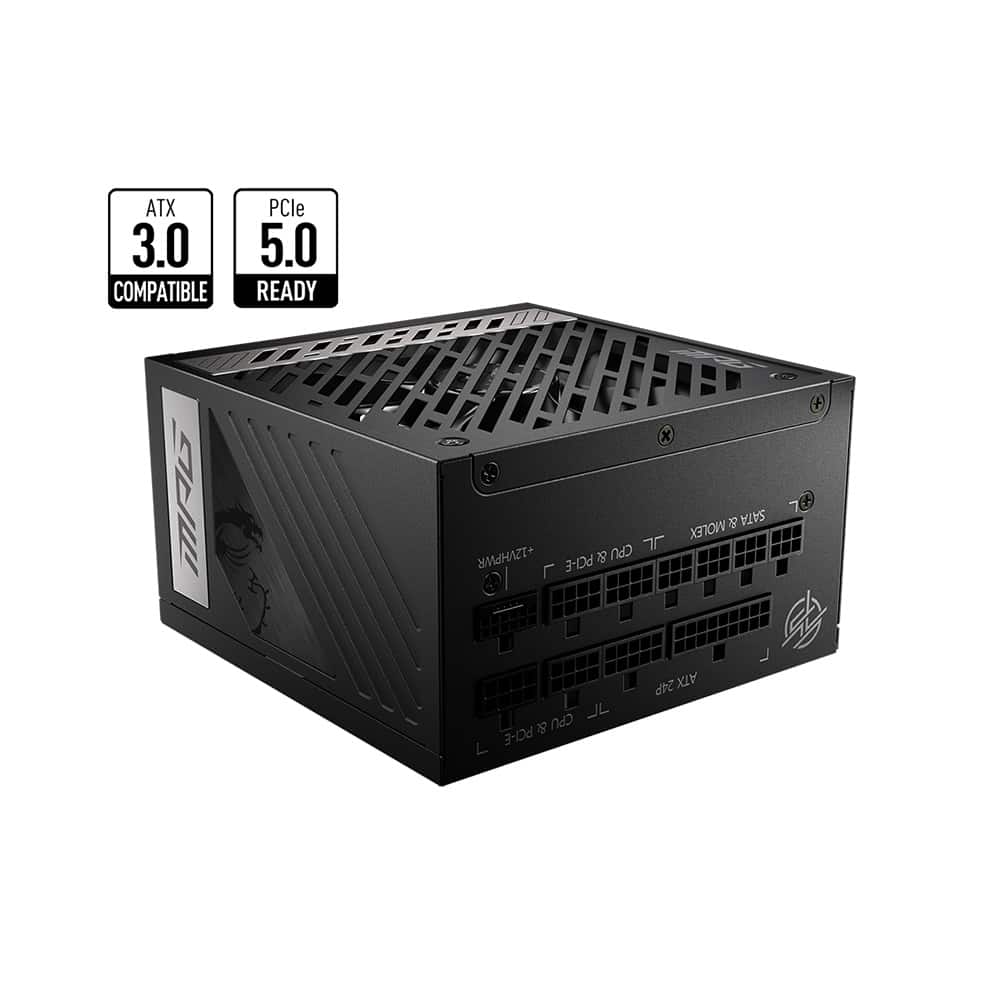

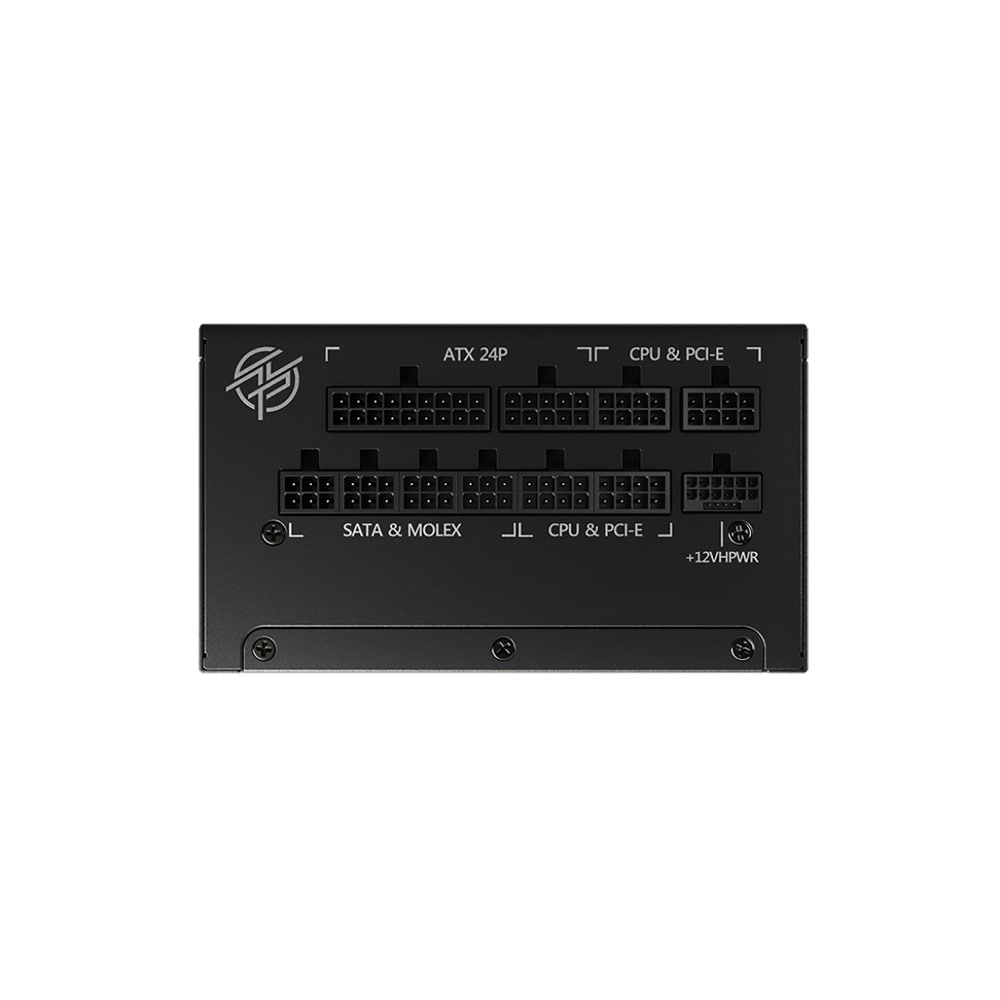

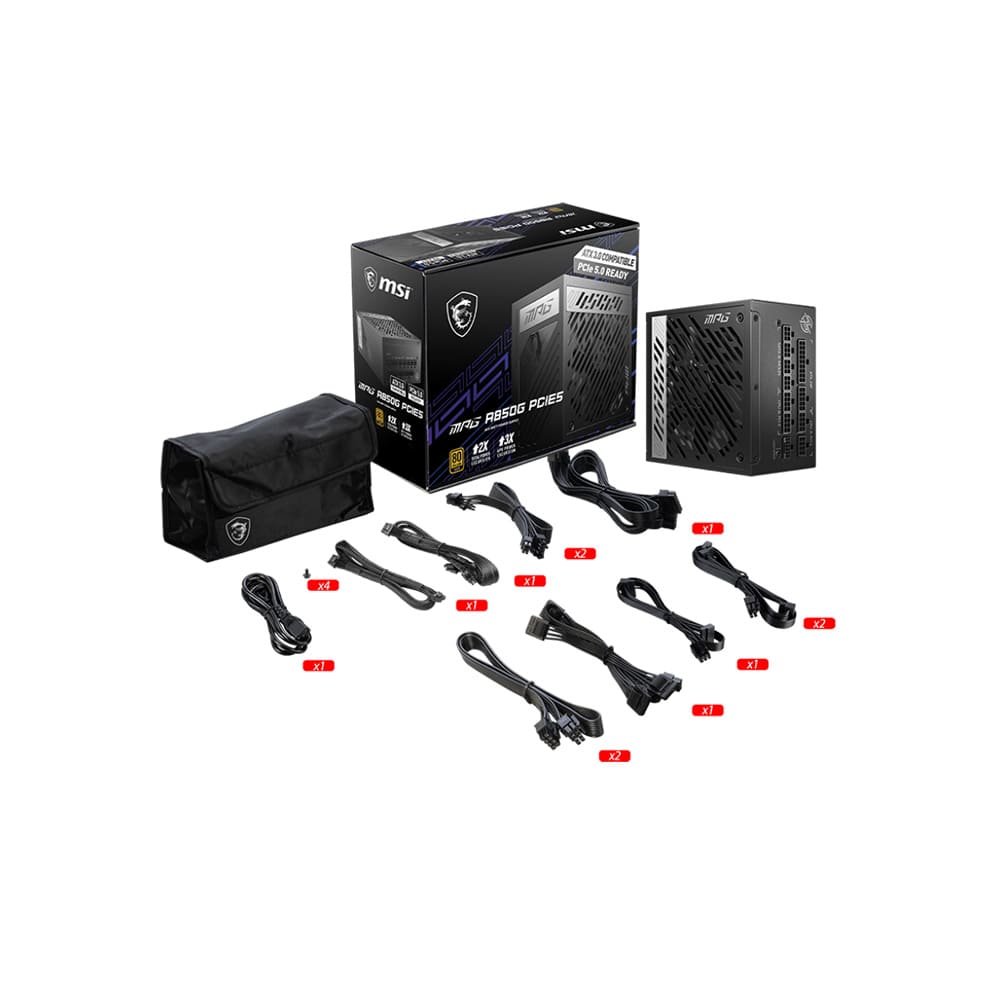

Fully Modular
The MSI MPG A850G Pcie5 power supply’s fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.
Specification :
| Model | MSI MPG A850G PCIE5 ATX 3.0 850 Watts 80 Plus Gold |
| EFFICIENCY RATING | 80 PLUS GOLD ( up to 90%) |
| MODULAR | Yes |
| FAN SIZE | 135 mm |
| FAN BEARING | Fluid Dynamic Bearing |
| DIMENSIONS (DXWXH) | 150 x 150 x 86 mm |
| PFC TYPE | Active PFC |
| INPUT VOLTAGE RANGE | 100-240 |
| POWER WATT | 850W |
| POWER EXCURSION | 1700W |
| INPUT FREQUENCY RANGE | 50 – 60 Hz |
| PROTECTION | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 PIN) | 1 |
| EPS (4+4 PIN) | 2 |
| PCI-E 5.0 (16 PIN) | 1 (600W) |
| PCI-E (6+2 PIN) | 6 |
| SATA (15 PIN) | 8 |
| MOLEX (4 PIN) | 4 |
| FDD (4 PIN) | 1 |
| WARRANTY | 10 Years |
