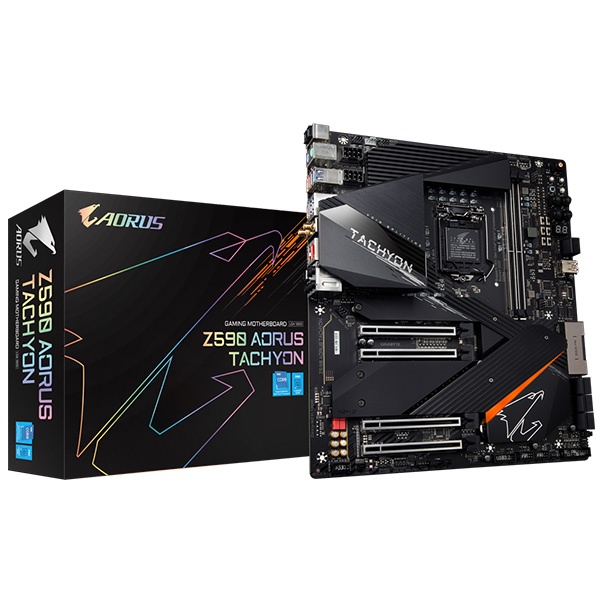

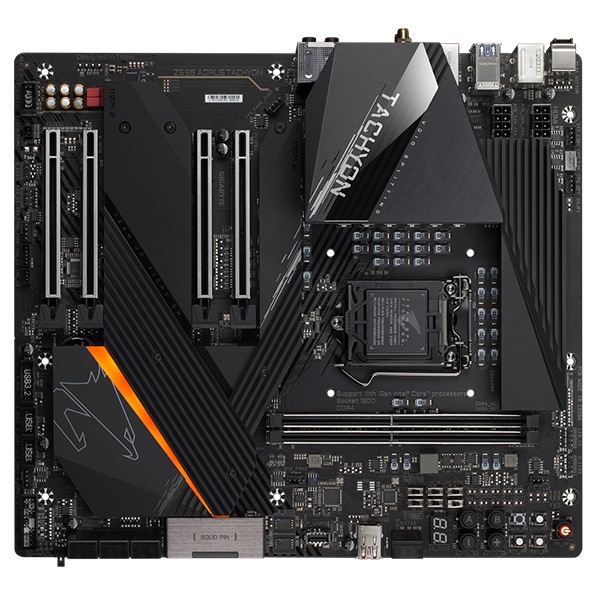

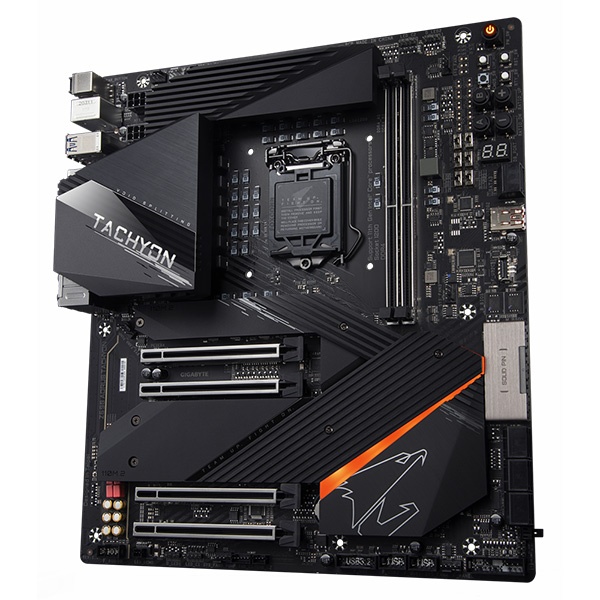

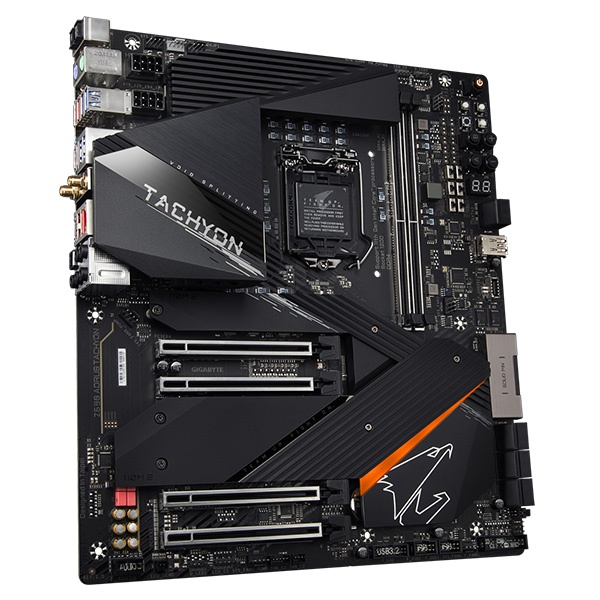

Gigabyte Z590 Aorus Tachyon Motherboard

77,999 (Inclusive of GST)

Available Models: Z590-AORUS-TACHYON
Brand:

Out of stock

Email when back in stock

Gigabyte Z590 Aorus Tachyon Motherboard :

Features :

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 12+1 Phases Digital VRM Solution with 100A DrMOS and Tantalum Polymer Capacitors Matrix
  • XTREME MEMORY with 2-DIMM Design and Shielded Memory Routing
  • Exclusive onboard Overclocking Kit for extreme overclocking
  • Onboard Intel® WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna
  • Amp-Up Audio with ALC1220 and WIMA Audio Capacitors
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards
  • SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Overview :

VRM Design :

  • + Direct 12 Phases VRM Design
  • + 100A DrMOS for each vCore phase
  • + Tantalum Polymer Capacitors Matrix
  • + Lower Temperature
  • + Better Transient Response

Digital PWM Controller

VRM design uses Intersil ISL69269 PWM controller that directly drives 12 phase for the highest efficiency.

100A DrMOS

Each vcore VRM phase uses 100A Vishay SiC840 DrMOS for maximum current capacity under extreme overclocking.

Tantalum Capacitor Matrix

VRM design uses 100% full tantalum polymer capacitors for better transient response and less mechanical interference with extreme overclocking cooling device.

Dual CPU Power Connectors

Dual 8 pin CPU power connectors with metal shielding provide maximal current input to processor.

Power Architecture

Z590 AORUS TACHYON uses direct 12 phases VRM design with the highest 100A DrMOS and full tantalum polymer capacitors around VRM area, to maximize power efficiency and transient response, and eliminate voltage ripple during extreme high frequency overclocking.

Tantalum Polymer Capacitor Matrix

By using 100% tantalum polymer capacitors design, it’s easier for professional overclockers to insulate VRM area and use LN2 pot to cool down CPU without mechanical interference.

Memory :

XTREME MEMORY

With 2-DIMM daisy chain memory trace layout, Z590 AORUS TACHYON can achieve the shortest memory DIMM distance between CPU, therefore reach the highest memory clock and the lowest latency.

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

Connectivity :

PCIe 4.0 M.2 Performance

Intel 2.5GbE LAN Onboard

2X Faster than ever

    Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds compared to general 1GbE networking. It’s perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet.

Intel 802.11ax WIFI 6E

Intel latest Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Benefit of WIFI 6E

  1. Dedicated spectrum in 6GHz band for less interference
  2. 5.5X throughput than 802.11ac 1×1*
  3. 4X better network capacity, no traffic jams especially in those dense area with lots of devices
  4. Network efficiency increase for better user experience

WIFI 6E Advantage

Spectrum congestion is huge problem in current WIFI environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. WIFI 6E is extended standard to WIFI 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With WIFI 6E, users can enjoy faster connection and stronger signal than before.

AORUS Antenna

  1. All new antenna supported 802.11ac 2.4GHz & 5GHz, 4dBi signal gain
  2. 2x signal strength compared to traditional antenna design
  3. Two antenna with smart antenna function for the best WIFI signal transmitting
  4. Multiple angle tilt and magnetic base for the best signal strength direction and location

Specifications :

  • CPU

    LGA1200 package:

    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU

    (Please refer to “CPU Support List” for more information.)

  • Chipset
    1. Intel® Z590 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek® ALC1220-VB codec
      * The back panel line out jack supports DSD audio.
    2. Support for DTS:X® Ultra
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module

    Intel® Wi-Fi 6E AX210

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
      * Supported by 11th Generation processors only.
    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    4. 1 x PCI Express x16 slot, running at x1 (PCIEX1)
      (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
      * Supported by 11th Generation processors only.

    Chipset:

    1. 2 x M.2 connectors (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)(M2M_SB)
    2. 6 x SATA 6Gb/s connectors (SATA3 0~5)
      * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Intel® Optane™ Memory Ready

    ASMedia® ASM1061 chip:

    1. 2 x SATA 6Gb/s connectors (SATA3 6,7), supporting IDE/AHCI mode only
  • USB

    Chipset:

    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
    2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    4. 4 x USB 2.0/1.1 ports available through the internal USB headers

    ASMedia® USB 3.2 Gen 2 controller:

    1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 1 x USB 3.2 Gen 2 Type-A port (red) onboard

    Chipset+Realtek® USB 3.2 Gen 1 Hub:

    1. 4 x USB 3.2 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 4 x system fan headers
    6. 2 x system fan/water cooling pump headers
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 3 x M.2 Socket 3 connectors
    10. 8 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
    14. 1 x USB 3.2 Gen 2 Type-A port (red)
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x noise detection header
    18. 2 x Thunderbolt™ add-in card connectors
    19. 1 x Clear CMOS jumper
    20. 1 x power button (PW_SW)
    21. 1 x reset button (RST_SW)
    22. 1 x Clear CMOS button (CMOS_SW)
    23. 2 x BIOS switches (BIOS_SW)(SB)
    24. 1 x Cold Reset button (RTY_SW)
    25. 1 x Protection Mode button (LIMP_MODE)
    26. 1 x CPU Ratio up button (RATIO_UP)
    27. 1 x CPU Ratio down button (RATIO_DW)
    28. 1 x Profile A button (PROFILE_A)
    29. 1 x Profile B button (PROFILE_B)
    30. 1 x OC Trigger switch (TGR)
    31. 1 x LN2 Mode switch (LN2_SW)
    32. 1 x Enhanced LN2 Mode switch (LN2_OFFSET)
    33. 1 x Reserved switch (RSV_SW)

    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

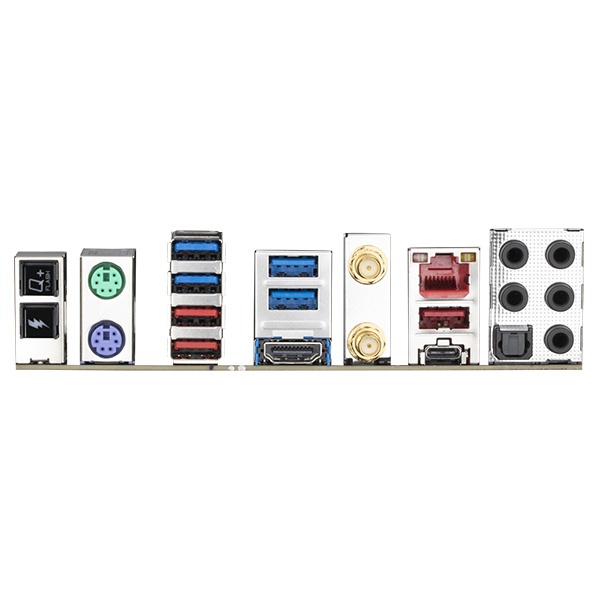

  • Back Panel Connectors
    1. 1 x Q-Flash Plus button
    2. 1 x OC Ignition button
    3. 1 x PS/2 keyboard port
    4. 1 x PS/2 mouse port
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x HDMI port
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
    8. 3 x USB 3.2 Gen 2 Type-A ports (red)
    9. 4 x USB 3.2 Gen 1 ports
    10. 1 x RJ-45 port
    11. 1 x optical S/PDIF Out connector
    12. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    7. Noise detection
  • BIOS
    1. 2 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. E-ATX Form Factor; 30.5cm x 27cm

Additional information

Weight5 kg
Brand

Gigabyte

Socket

LGA1200

Chipset

Z590

Form Factor

ATX

Memory Slot

2 Slot

Platfrom

Intel

Available Models

Z590-AORUS-TACHYON

EAN/UPC

4719331814847

Memory Slot Type

DDR4
