Gigabyte B450M Gaming Motherboard

6,749 (Inclusive of GST)

Available Models: B450M-GAMING
Brand:

Out of stock

Email when back in stock

Gigabyte B450M Gaming Motherboard :

AMD B450 Gaming Motherboard with Hybrid Digital PWM, GIGABYTE Gaming LAN with Bandwidth Management, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistors Design

Features :

  • Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • HDMI, DVI-D, D-sub Ports for Multiple Display
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • RGB Fusion supports RGB LED Strips in 7-Colors
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers
  • APP Center Including EasyTune™ and Cloud Station™ Utilities

Specifications :

  • CPU
    1. AM4 Socket: Supports AMD Ryzen™ 5000 series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. AMD B450
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.2.
      * Actual support may vary by CPU.

    Maximum shared memory of 16 GB

  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slot
      (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2* SSD support)
      * Actual support may vary by CPU.
      * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
  • USB

    Chipset:

    1. 2 x USB 3.1 Gen 1 ports available through the internal USB header
    2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

    CPU:

    1. 4 x USB 3.1 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x M.2 Socket 3 connector
    6. 4 x SATA 6Gb/s connectors
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x CPU cooler LED strip/RGB LED strip header
    11. 1 x USB 3.1 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module (TPM) header (2×10 pin, for the GC-TPM2.0 module only)
    14. 1 x speaker header
    15. 1 x serial port header
    16. 1 x Clear CMOS jumper
    17. 1 x chassis intrusion header

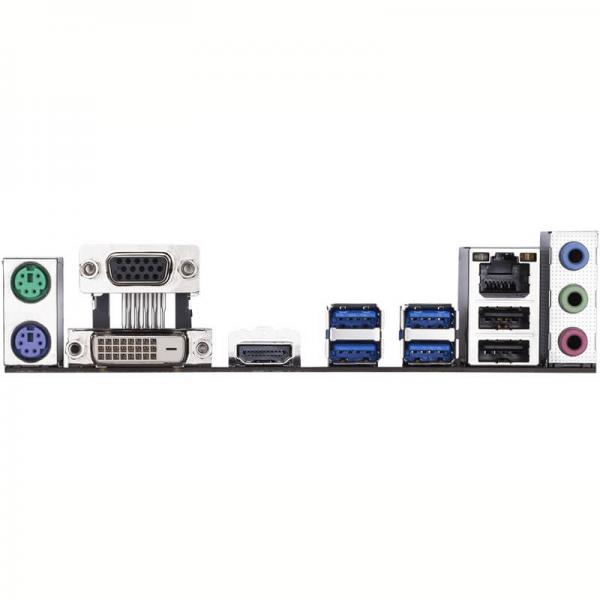

  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 1 x HDMI port
    6. 4 x USB 3.1 Gen 1 ports
    7. 2 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      Smart Survey
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
    2. Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
      * Please download the “Windows USB Installation Tool” from GIGABYTE’s website and install it before installing Windows 7.
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 20.5cm

Additional information

Weight5 kg
Dimensions24.4 × 0.1 × 20.5 mm
Brand

Gigabyte

Socket

AM4

Chipset

B450

Form Factor

M-ATX

Memory Slot

4 Slot

Platfrom

AMD

Available Models

B450M-GAMING

EAN/UPC

4719331804497

Memory Slot Type

DDR4
