Gigabyte Z590 Vision D Motherboard

34,449 (Inclusive of GST)

Available Models: Z590-VISION-D
Brand:

Out of stock

Email when back in stock

Gigabyte Z590 Vision D Motherboard

Features :

Intel® Z590 Creators Motherboard with unique VisionLINK TB I/O design, Effective thermal solution, Thunderbolt™ 4, Intel® Wi-Fi 6 802.11ax and dual Intel® 2.5GbE LAN, Dual PCIe 4.0 x16 slots, Triple NVMe PCIe X4 M.2 Connectors, Front USB 3.2 Gen2x2 Type-C® Header
  • Powerful performance support 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4 memory, 4 DIMMs
  • Go further without more cables by VisionLINK TB I/O design
  • The limitless connectivity by Thunderbolt™ 4
  • High-bandwidth and low-latency network support by dual Intel® 2.5GbE LAN
  • Intel® Wi-Fi 6 2×2 802.11ax with all new antenna support for better signal
  • SuperSpeed USB 3.2 Gen2x2 Type-C® Header
  • Triple Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards
  • Comprehensive cooling solution design for the better thermal dissipation
  • Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card

Overview :

VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It’s the perfect fit for DIY creators to build their own ideal machine.

Amazing Sound

DTS:X® Ultra
Immersive sounds to go.

DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener and expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, and object-based audio. Also, it takes movies, music, and interactive gaming experiences to an exciting new level.

Specifications :

  • CPU

    LGA1200 package:

    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU

    (Please refer to “CPU Support List” for more information.)

  • Chipset
    1. Intel® Z590 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:

    1. 1 x VisionLINK TB connector (Intel® Thunderbolt™ 4/USB Type-C® port)
    2. 1 x Intel® Thunderbolt™ 4 connector (USB Type-C® port)
      * The Intel® Thunderbolt™ 4 connectors support DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120×2880@60 Hz with 24 bpp (via single display output)
      * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, “Back Panel Connectors,” for more information.)
      * Support for DisplayPort 1.4 version and HDCP 2.3.

    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.

    (Graphics specifications may vary depending on CPU support.)

  • Audio
    1. Realtek® ALC4080 codec
    2. Support for DTS:X® Ultra
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
  • LAN
    1. 2 x Intel® 2.5GbE LAN chips (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module

    Intel® Wi-Fi 6 AX200

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
      * Supported by 11th Generation processors only.
    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      * The PCIEX4 slot shares bandwidth with the M2P_SB connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_SB connector.
    4. 1 x PCI Express x1 slot
      (The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
      * Supported by 11th Generation processors only.

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2P_SB)
    3. 6 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to “1-8 Internal Connectors,” for the installation notices for the PCIEX4, M.2, and SATA connectors.
    Intel® Optane™ Memory Ready

  • USB

    Chipset+Intel® Thunderbolt™ 4 Controller:

    1. 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support

    Chipset:

    1. 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header

    Chipset+USB 3.2 Gen 1 Hub:

    1. 4 x USB 3.2 Gen 1 ports on the back panel

    Chipset+USB 2.0 Hub:

    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x system fan/water cooling pump headers
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 3 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x noise detection header
    18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    19. 2 x temperature sensor headers
    20. 1 x Clear CMOS jumper
    21. 1 x Q-Flash Plus button

    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

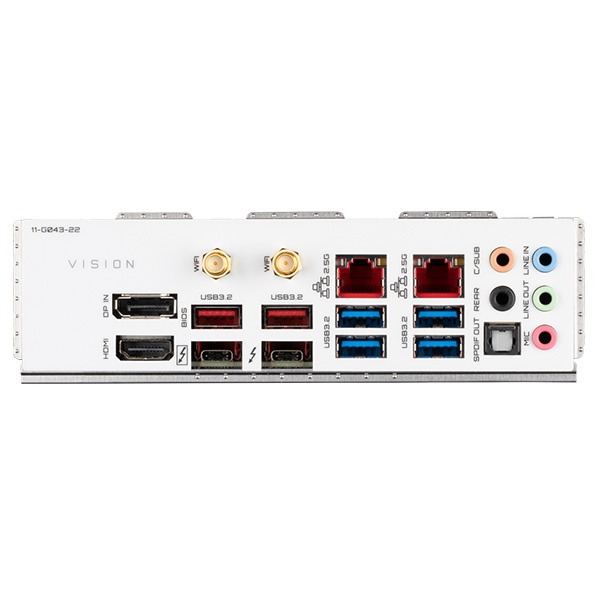

  • Back Panel Connectors
    1. 1 x DisplayPort In port
    2. 1 x HDMI port
    3. 2 x SMA antenna connectors (2T2R)
    4. 2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support)
    5. 2 x USB 3.2 Gen 2 Type-A ports (red)
    6. 4 x USB 3.2 Gen 1 ports
    7. 2 x RJ-45 ports
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    7. Noise detection
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm

Additional information

Weight5 kg
Brand

Gigabyte

Socket

LGA1200

Chipset

Z590

Form Factor

ATX

Memory Slot

4 Slot

Platfrom

Intel

Available Models

Z590-VISION-D

EAN/UPC

4719331817459

Memory Slot Type

DDR4
