Fractal Design Flex B-20 Vertical Graphics Card Holder With PCI-E 3.0 Riser Cable

Original price was: ₹7,454.Current price is: ₹5,489. (Inclusive of GST)

-26%
Brand:

Out of stock

Email when back in stock

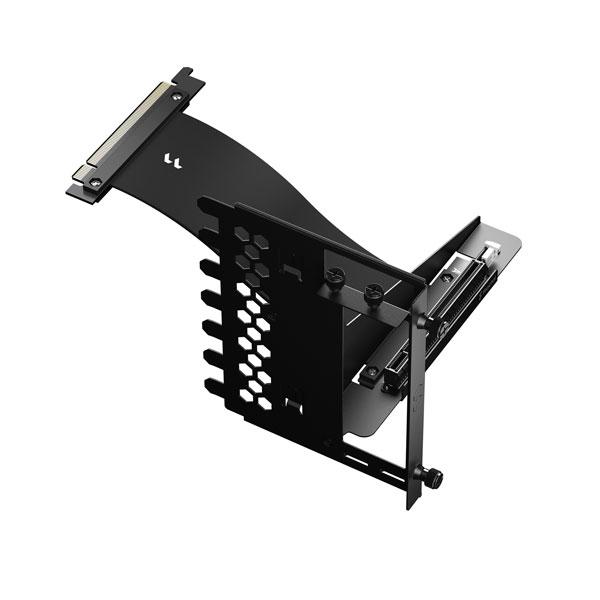

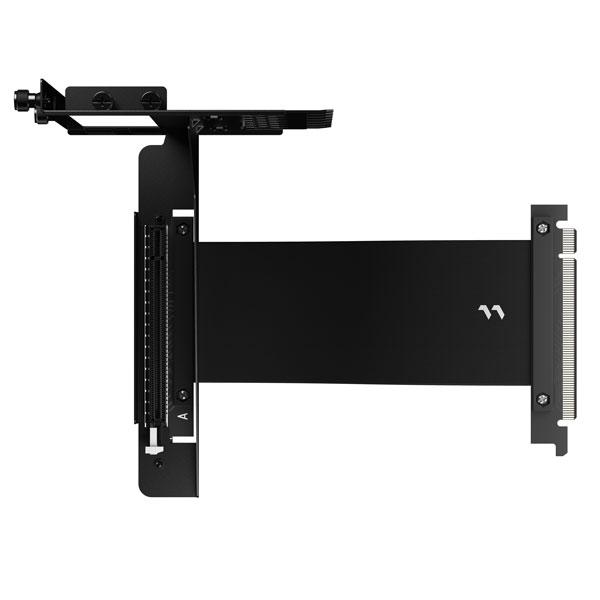

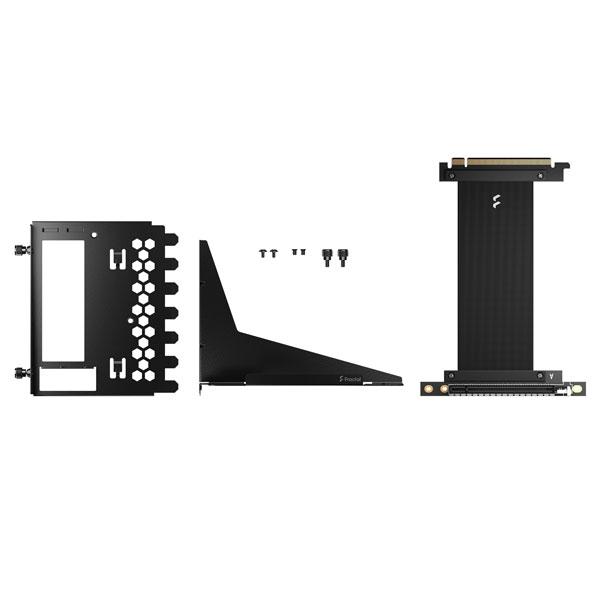

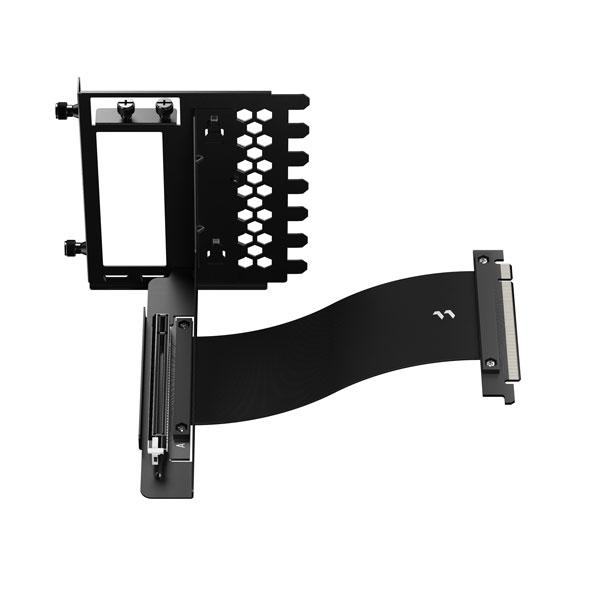

Fractal Design Flex B-20 Vertical Graphics Card Holder With PCI Express 3.0 x16 Riser Cable

Flex B-20

The Flex B-20 bracket is a great supplement to your case, allowing you to mount your GPU vertically. This makes Flex B-20 an attractive companion to select Fractal cases like the Define 7, Define 7 XL, Meshify 2 and the Meshify 2 XL.

  • Fits ATX cases with bridgeless expansion slot covers (no bars between slots), such as the Define 7, Define 7 XL, Meshify 2 and the Meshify 2 XL
  • Supports full-length GPUs with single or dual-slot brackets and coolers of any size
  • Places the GPU away from the side panel

No holds barred

  • Fits ATX cases with bridgeless expansion slots (no bars between slots) like the Define 7, Define 7 XL, Meshify 2 and the Meshify 2 XL
  • Mounts easily with included captive thumbscrews

Cool as can be

  • Accommodates full-length GPUs with single or dual-slot brackets and coolers of any size
  • Places the GPU away from the side panel

Triple the power

  • Heavy-duty double-sided wiring delivers up to 3x the power of traditional riser cables.
  • Full PCIe 3.0 x16 support for a wide range of compatibility.

Specifications

GPU supportAny PCIe compatible card with single or dual-slot bracket (no maximum cooler height)
Case requirements7 available bridgeless expansion slots (no bars between slots when covers are removed)
Captive thumbscrewsTwo, for installation of the riser into the case
PCIe standardPCIe Gen 3.0 x16*
Cable length200 mm
Cable width57 mm
Cable colorMatte Black
Bracket colorBlack powder coated steel
Dimensions
Product dimensions (LxWxH)182 x 134 x 145 mm
Dimensions w/o protrusions/screws182 x 125 x 145 mm
Package dimensions (LxWxH)230 x 168 x 56 mm
Net weight248g
Package weight360g
Warranty2 Years
NoteIf you wish to use the Flex B-20 PCIe 3.0 riser cable together with a PCIe 4.0 compatible motherboard and graphics card, make sure you first set the PCIe Slot Configuration in your motherboard BIOS or UEFI to PCIe Gen3 for best system stability.

Additional information

Weight2 kg
Brand

Fractal Design

EAN/UPC

7340172702689
