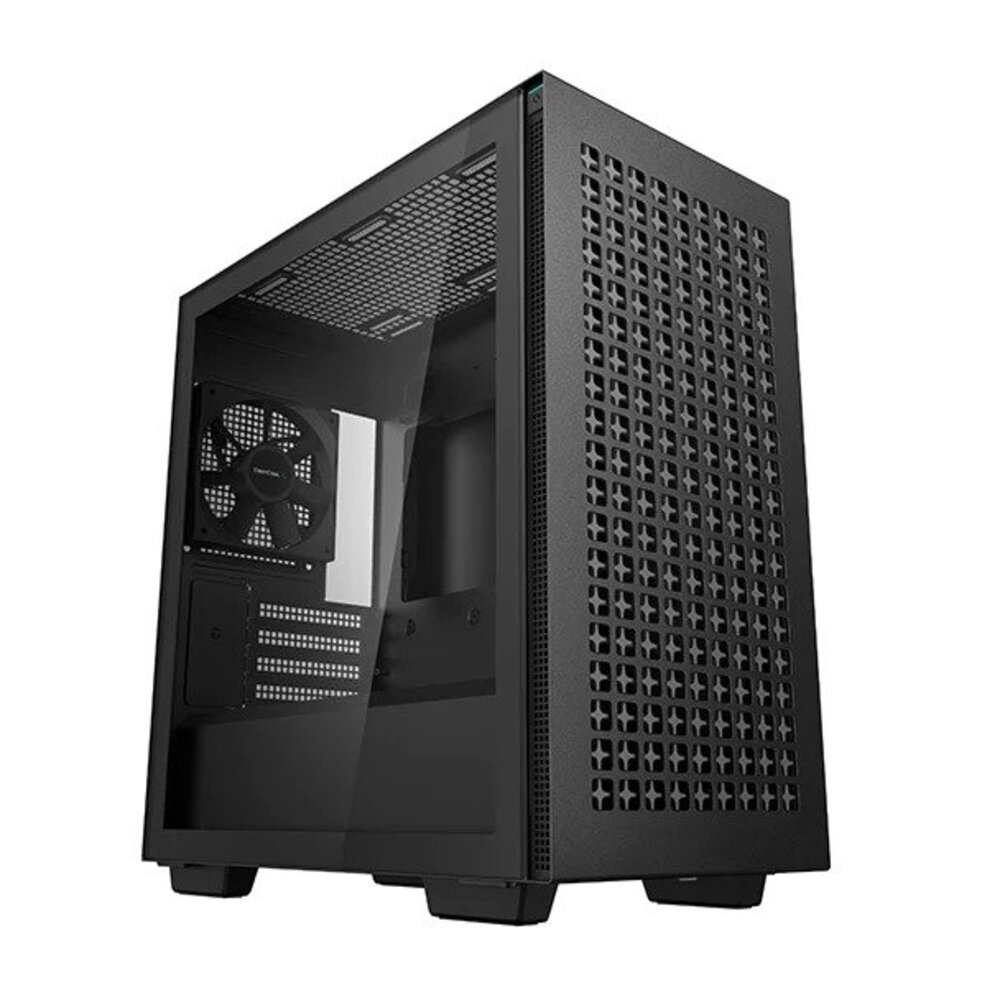

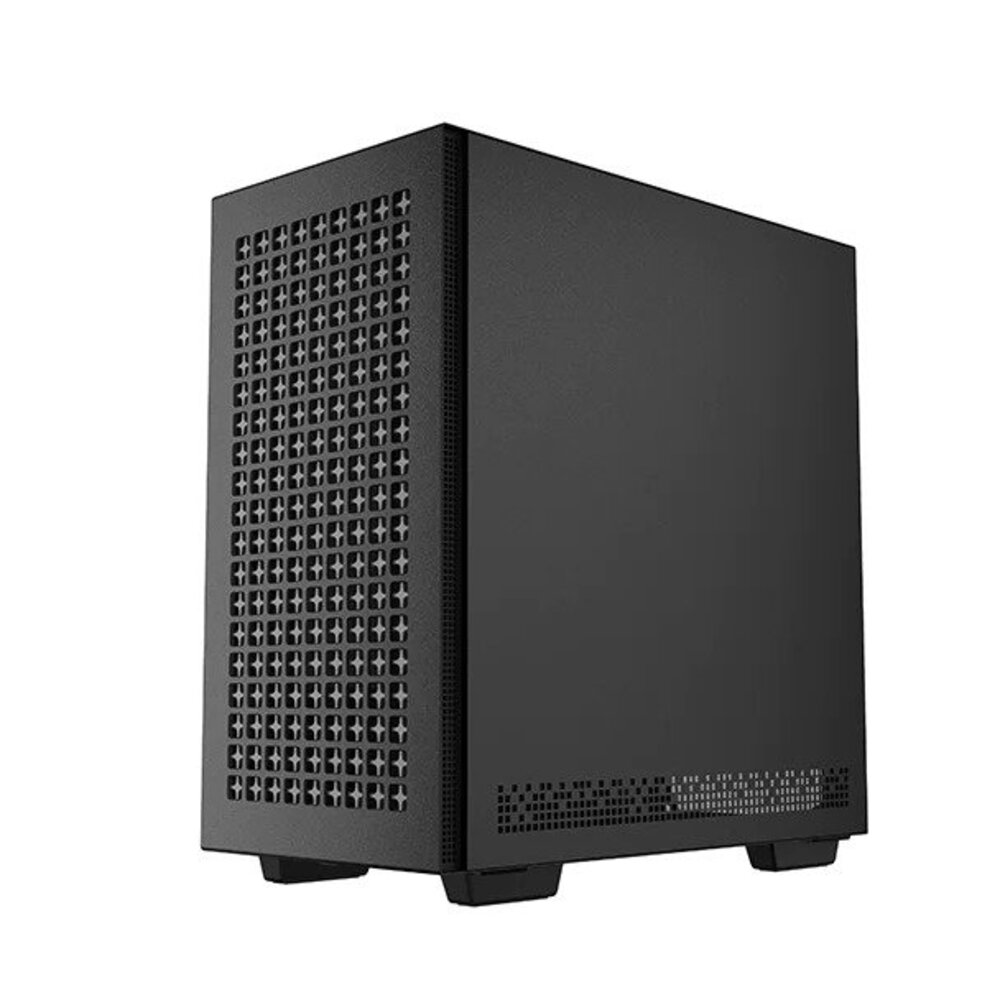

Deepcool CH370 Black Cabinet :
EXPERIENCE WITH COMPACT AND COMPLETE BUILDING
For any level builder that need a roomy interior and a comprehensive feature set built for a high-performance PC system, the CH370 is the perfect micro ATX case. Ample cooling is made possible by the front panel’s high airflow, and there are expansion opportunities for future expansions. For aesthetic purposes, the front panel has a shiftable, optional plastic insert.
SPREAD OUT YOUR COOLING
While having a smaller footprint, the Deepcool CH370 Black supports up to 8x 120mm or 4x 140mm cooling fans for proper airflow ventilation that also reaches your GPU. It also supports installation of up to a 360mm radiator in front or a 240mm radiator on top for water cooling systems.
SIDE VENTILATION ADDITIONAL
When using PSU shroud fans, the steel side panel has venting to let air to pass.

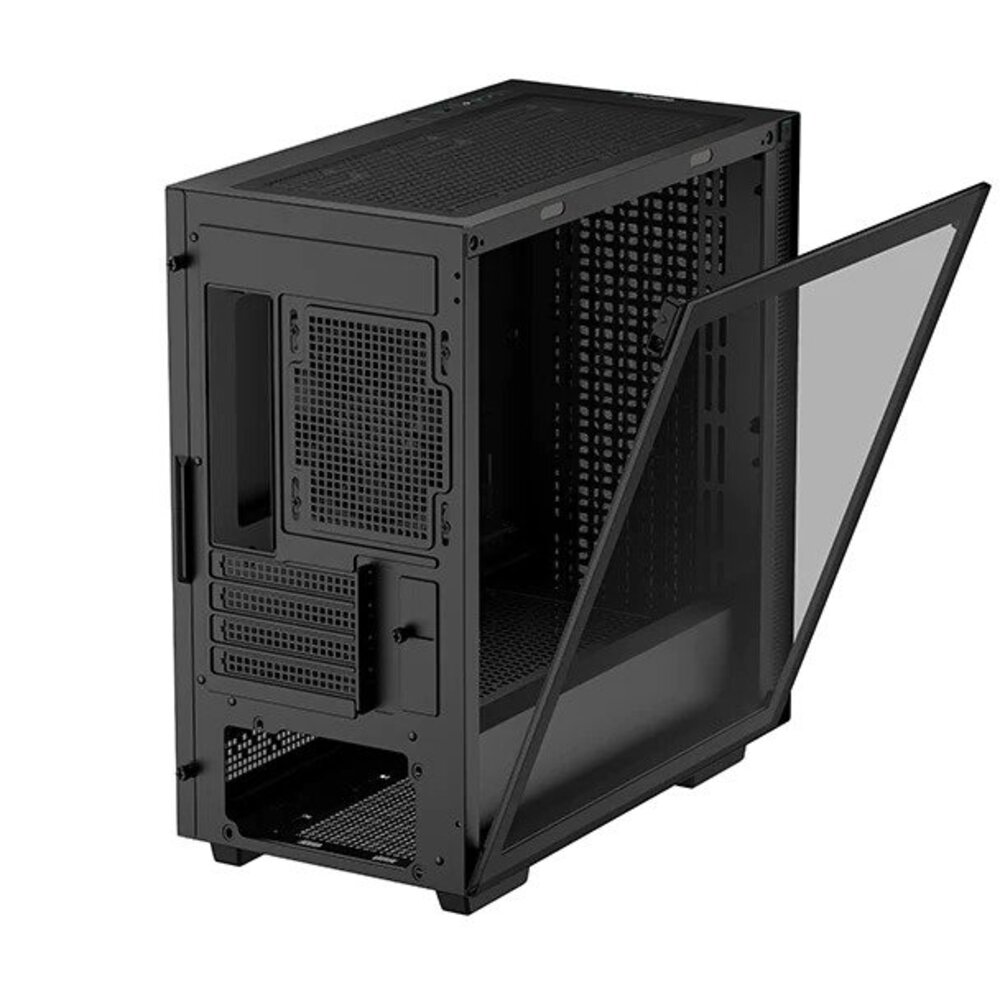

The most practical technique to mount glass panels that includes an optional safety lock for further security is a magnetic tempered glass side panel.
RETARDANT HEADPHONE HOLDER
You may get organised by removing the handy headset holder from the front panel.
|Motherboard Support||Mini-ITX / Micro-ATX|
|Front I/O Ports||USB3.0×2、Audio×1|
|3.5″ Drive Bays||2|
|2.5″ Drive Bays||2+1|
|Expansion Slots||4 Slots|
|Pre-Installed Fans||Rear: 1×120mm|
|Fan Support||Front: 3×120 / 2×140mm|
|Top: 2×120 / 2×140mm|
|PSU Shrouded: 2×120mm|
|Radiator Support||Front: 120/140/240/280/360mm|
|CPU Cooler Height Limit||165mm|
|GPU Length Limit||320mm|
|Power Supply Type||ATX PS2 （maximum length: 160mm）|
