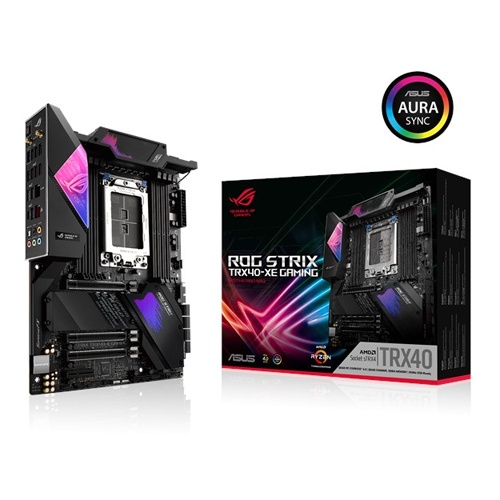

AMD TRX40 ATX motherboard sTRX4 for 3rd Gen AMD Ryzen Threadripper series processors, with 16 power stages, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2 Gen 2, SATA, three M.2, OLED and Aura Sync RGB lighting
Features
- Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors (support up to 64 core) to maximize connectivity and speed with up to three M.2 drives, USB 3.2 Gen 2.
- Unmatched personalization: OLED and Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
- Optimal Power Solution: 16 power stages with ProCool II power connector, high-quality chokes and durable 70A capacitors to support multi-core processors
- Comprehensive cooling: Active cooling VRM and Chipset heatsink, stacked-fin heatsink, with on-board dual M.2 heatsinks and a water pump+ header
- Gaming connectivity: Three M.2, USB 3.2 Gen 2 Type-C port and Type-C front panel connector
- Gaming networking: 2.5Gbps LAN and Intel® Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO, and gateway teaming via GameFirst V
- Gaming audio: High fidelity audio with SupremeFX S1220, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
- Easy DIY: ROG-patented pre-mounted I/O shield, Flexkey, ASUS SafeSlot, ASUS Node connector and BIOS FlashBack™ for a friendlier building experience
Overview
ROG Strix TRX40-XE Gaming blends stunning gaming aesthetics with high-end desktop performance for do-it-all builds for users that like to work hard and play hard. A variety of design touches show off its cyberpunk origins, including a translucent I/O shroud glows under Aura lighting and a striking rainfall pattern on the VRM & chipset heatsinks. When it comes to performance, ROG Strix TRX40-XE Gaming delivers with a wealth of ultrafast connectivity options, including three PCIe 4.0 M.2 slots, the latest 2.5G Ethernet and Wi-Fi 6 networking, and eight USB 3.2 Gen 2 ports.
SOLID HARDWARE SPECS
With comprehensive cooling options and robust power delivery to fuel CPUs with more cores, plus faster storage and memory, ROG Strix TRX40-XE Gaming provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.
GAMING ENHANCEMENT
ROG Strix TRX40-XE Gaming is engineered with the latest connectivity for the best gaming experiences. Transfer files faster and banish lag as you secure more victories.
DESIGN & CUSTOMIZATION
A host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix TRX40-XE Gaming wonderfully easy.
TUNE YOUR RIG YOU WANT
The ROG Strix TRX40-XE Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.
AMD TRX40 Chipset
The AMD TRX40 chipset delivers outstanding overclocking capabilities for the latest AMD Socket sTRX4 3rd Gen Ryzen™ Threadripper™ series processors. It provides PCIe 4.0 support, 10 Gbps USB 3.2 Gen 2 ports, and eight SATA 6 Gbps ports for faster data retrieval.
Ready for AMD Socket sTRX4 3rd Gen Ryzen Threadripper
ROG Strix TRX40-XE Gaming motherboard supports the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors that boast up to 64 cores. It features quad-channel DDR4 memory, 64 lanes of PCI Express® 4.0, 16 GT/s transfer speed for Gen 4 M.2 SSDs, and built-in native USB 3.2 Gen 2 (10 Gbps) for superior performance.
Specifications
| CPU | Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors |
| Supports CPU up to 64 cores | |
| * Refer to www.asus.com for CPU support list | |
| Chipset | AMD TRX40 |
| Memory | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors |
| 8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory | |
| Quad Channel Memory Architecture | |
| * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). | |
| Multi-GPU Support | Supports NVIDIA® 2-Way SLI® Technology |
| Supports AMD 2-Way CrossFireX Technology | |
| Expansion Slots | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors |
| 3 x PCIe 4.0 x16 (x16/x16/x16) | |
| 1 x PCIe 4.0 x4 | |
| Storage | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : |
| 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) | |
| AMD TRX40 chipset : | |
| 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) | |
| AMD TRX40 chipset : | |
| 8 x SATA 6Gb/s port(s), | |
| Support Raid 0, 1, 10 | |
| LAN | Realtek® RTL8125-CG 2.5G LAN |
| Intel® I211-AT, 1 x Gigabit LAN Controller(s) | |
| Anti-surge LANGuard | |
| ROG GameFirst V Technology | |
| Wireless Data Network | |
| Intel® Wi-Fi 6 AX200 | |
| Wi-Fi 802.11 ax, Bluetooth® 5.0 | |
| Supports dual band frequency 2.4/5 GHz | |
| Supports 2×2 MU-MIMO | |
| Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed | |
| Bluetooth | Bluetooth v5.1* |
| *BT 5.1 function will be ready in Windows 10 build 19041 or later. | |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 |
| Dual OP Amplifiers | |
| Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
| High quality 120 dB SNR stereo playback output 108 dB SNR recording input | |
| Supports up to 32-Bit/192kHz playback | |
| Audio Feature : | |
| SupremeFX Shielding™ Technology | |
| Sonic Studio III + Sonic Studio Virtual Mixer | |
| DTS® Sound Unbound | |
| Optical S/PDIF out port(s) at back panel | |
| Sonic Radar III | |
| USB Ports | 3rd Gen AMD Ryzen™ Threadripper™ Processors : |
| 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) | |
| AMD TRX40 chipset : | |
| 1 x USB 3.2 Gen 2 front panel connector port(s) | |
| AMD TRX40 chipset : | |
| 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C) | |
| AMD TRX40 chipset : | |
| 8 x USB 2.0 port(s) | |
| ASMedia® USB 3.2 Gen 1 controller : | |
| 4 x USB 3.2 Gen 1 port(s) (4 at mid-board) | |
| ROG Exclusive Features | ROG Exclusive Software |
| RAMCache III | |
| CPU-Z | |
| GameFirst V | |
| Sonic Studio III + Sonic Studio Link | |
| Sonic Radar III | |
| Overwolf | |
| Special Features | |
| 5-Way Optimization by Dual Intelligent Processors 5 | |
| Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. | |
| Gamer’s Guardian: | |
| DRAM Overcurrent Protection | |
| Highly Durable Components | |
| DIGI+ VRM | |
| SafeSlot | |
| ESD Guards on LAN, Audio,and USB ports | |
| LiveDash OLED 1.3 ” | |
| AURA : | |
| Aura Lighting Control | |
| Addressable Gen 2 Header | |
| ASUS Exclusive Features : | |
| USB BIOS FlashBack™ | |
| AI Suite 3 | |
| Ai Charger | |
| Pre-mounted I/O Shield | |
| ASUS NODE: hardware control interface | |
| BIOS FlashBack™ Button | |
| ASUS EZ DIY : | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS Q-Design : | |
| ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| ASUS Q-Slot | |
| ASUS Q-DIMM | |
| ASUS Q-Connector | |
| Back I/O Ports | 1 x LAN (RJ45) port(s) |
| 8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C) | |
| 4 x USB 2.0 | |
| 1 x Optical S/PDIF out | |
| 5 x Audio jack(s) | |
| 1 x Anti-surge 2.5G LAN (RJ45) port | |
| 1 x USB BIOS FlashBack™ Button(s) | |
| Internal I/O Ports | 2 x Aura RGB Strip Header |
| 2 x Addressable Gen 2 header(s) | |
| 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) | |
| 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) | |
| 2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) | |
| 1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) | |
| 1 x TPM header | |
| 8 x SATA 6Gb/s connector(s) | |
| 1 x CPU Fan connector(s) | |
| 1 x CPU OPT Fan connector(s) | |
| 3 x Chassis Fan connector(s) | |
| 1 x AIO_PUMP connector | |
| 1 x W_PUMP+ connector | |
| 1 x 24-pin EATX Power connector(s) | |
| 2 x 8-pin ATX 12V Power connector(s) | |
| 1 x Front panel audio connector(s) (AAFP) | |
| 1 x Thermal sensor connector(s) | |
| 1 x Power-on button(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 x Node Connector(s) | |
| 1 x USB BIOS FlashBack™ button(s) | |
| 1 x System panel connector | |
| 1 x USB 3.2 Gen 2 front panel connector | |
| 1 x Speaker connector | |
| 1 x Chipset Fan Header | |
| 1 x VRM_HS_FAN Header | |
| Accessories | 1 x Vertical M.2 bracket set |
| 4 x SATA 6Gb/s cable(s) | |
| 1 x M.2 Screw Package | |
| 1 x pack of cable tie | |
| 1 x Supporting DVD | |
| 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) | |
| 1 x Strix door hanger | |
| 1 x ROG Strix stickers | |
| 1 x Q-Connector | |
| 1 x Thermal sensor cable pack(s) | |
| 1 x Extension Cable for RGB strips (80 cm) | |
| 1 x Extension cable for Addressable LED | |
| User manual | 1 x ROG Thank you card |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
| Support Disc | |
| Drivers | ASUS Utilities |
| EZ Update | |
| Anti-virus software (OEM version) | |
| Operating System | Windows® 10 64-bit |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
