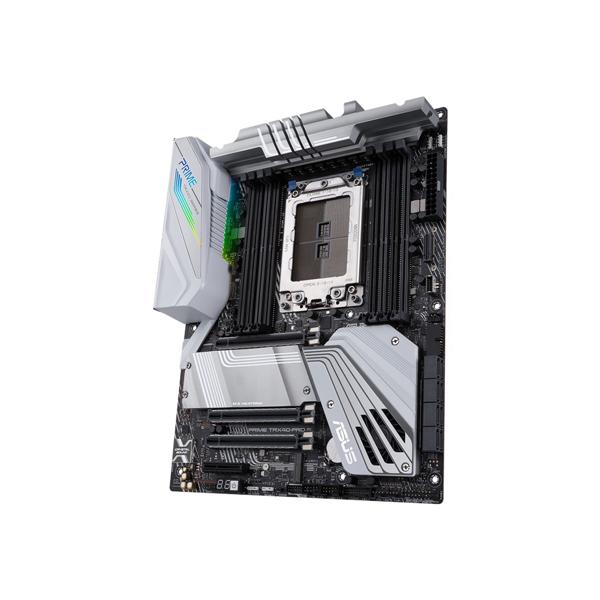

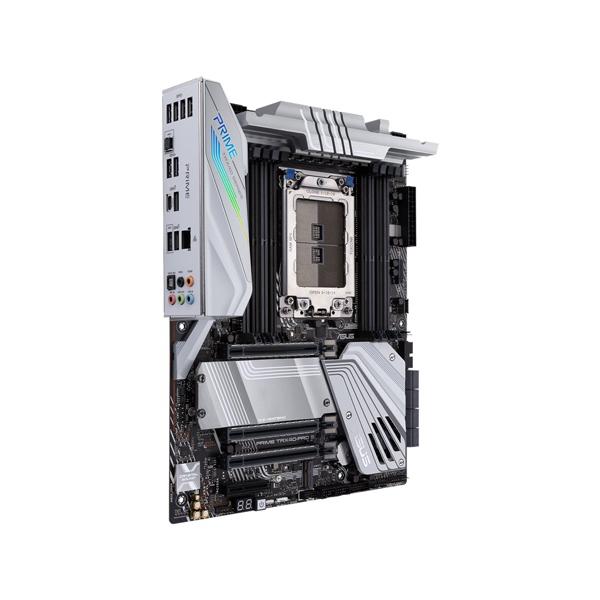

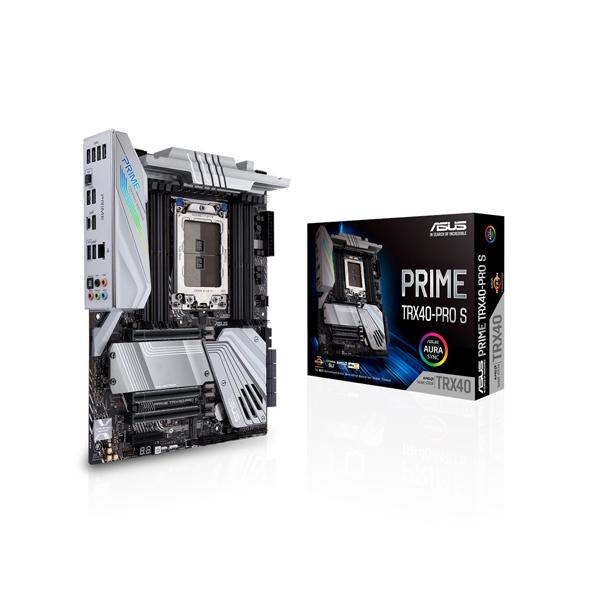

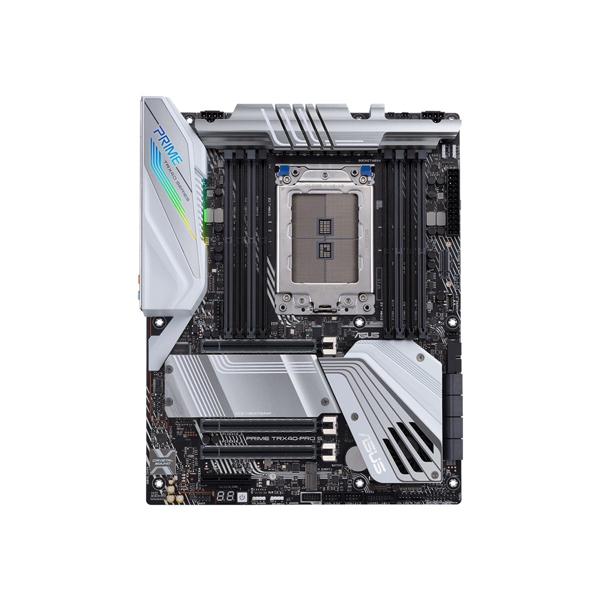

AMD TRX40 ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper-series processors (up to 64 cores) with 16 power stages, DDR4 4666+ MHz (O.C.), triple PCIe 4.0 M.2s, USB 3.2 Gen 2 Type-C front-panel connector and Aura Sync RGB lighting
- AMD Socket sTRX4: Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors (support up to 64 cores)
- Robust power design: 16 power stages, ProCool II connectors with solid pins, and premium chokes and capacitors for stable power delivery
- Comprehensive thermal solutions: VRM heatsink, M.2 heatsink, SoC VRM heatsink, active chipset heatsink solution, and an array of hybrid fan headers
- Next-gen connectivity: Three PCIe 4.0 NVMe M.2 slots, USB 3.2 Gen 2 Type-C™ front-panel connector, and Intel Gigabit Ethernet
- Intelligent tuning: ASUS 5-Way Optimization software and renowned UEFI BIOS offer easy configuration options for all experience levels
ASUS Prime TRX40-Pro S is expertly engineered to unleash the full potential of AMD’s latest high-core-count processors for content creators, designers and professional use. Combining a robust power design, comprehensive cooling solutions, ultrafast PCIe 4.0 connectivity and intelligent tuning options, the high-end desktop motherboard delivers the performance and stability needed to turn every creative vision into reality.
Get the Most out of All Your Cores
AMD’s HEDT platform raises the stakes with the latest AMD 3rd Gen Ryzen™ Threadripper™ processors that boast more cores and higher bandwidth than ever before. Prime TRX40-Pro S is ready for the additional processing power that plows through intensive tasks such as 3D rendering and video editing, and the extra bandwidth allows you to add multiple graphics cards and NVMe SSDs to accelerate your productivity.
Robust Power Design
The new AMD Socket sTRX4 is compatible with 3rd Gen AMD Ryzen Threadripper CPUs with up to 64 cores, up to 64 PCIe 4.0 lanes, and 280-watt thermal design power (TDP). Such specifications require serious power, so Prime TRX40-Pro S is equipped with an enhanced power solution that includes 16 power stages to ensure your processor keeps up with your creativity.
ProCool II Connectors
ProCool II connectors ensure a snug and reliable connection to the EPS 12V power lines. The second-generation features upgrades of metal amour and solid pins for better heat dissipation, as well as a warning LED-display with a BIOS POST message to indicate improper connections.
Cool to the Core
Effective content creation demands a reliable, professional foundation. Prime TRX40-Pro S is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads, so that your focus remains fixed on your creative goals.
Two M.2 slots are covered by a massive heatsink to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads.
Tune It Your Way
Comprehensive controls form the foundation of the ASUS Prime series. Prime TRX40-Pro S packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.
One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
- Fans stay quiet as a whisper for everyday computing, and deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.
- The stress test allows you to optimize and overclock for CPU- or memory-centric workloads.
Little Things Make a Big Difference
We pay careful attention to all the little details that improve your overall experience, from utilizing exclusive codecs for pristine audio quality to intuitive RGB lighting controls for a customized look. Prime TRX40-Pro S provides the tools you need to personalize your build for a more enjoyable creation process.
Pre-Mounted I/O Shield Set Up without Slip-Ups
Form meets function in the pre-mounted I/O shield that we pioneered with the ROG series motherboards. Now available on Prime TRX40-Pro S, this feature streamlines the installation process for budding builders and savvy enthusiasts alike.
FlexKey The Chassis Reset Button – Reassigned
Flexkey, a front-panel header lets you customize the reset button on the front-panel of your chassis to provide quick access to our choice of Aura lighting controls, DriectKey or system reset.
BIOS FlashBack™ Update Your BIOS Without CPU and DRAM
BIOS FlashBack is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.
The Power of AMD TRX40 Chipset
The AMD TRX40 chipset delivers outstanding overclocking capabilities for the latest AMD Socket sTRX4 3rd Gen Ryzen™ Threadripper™ series processors. It provides PCIe 4.0 support, 10 Gbps USB 3.2 Gen 2 ports, and eight SATA 6 Gbps ports for faster data retrieval.
Ready for AMD Socket sTRX4 3rd Gen Ryzen Threadripper
ASUS Prime TRX40-Pro S motherboard supports the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors that boast up to 64 cores. It features quad-channel DDR4 memory, 64 lanes of PCI Express® 4.0, 16 GT/s transfer speed for Gen 4 M.2 SSDs, and built-in native USB 3.2 Gen 2 (10 Gbps) for superior performance.
|CPU||AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors|
Supports CPU up to 64 cores
|Chipset||Build in AMD TRX40|
|Memory||3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors|
8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
|Multi-GPU Support||Supports NVIDIA® Quad-GPU SLI® Technology|
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology
|Expansion Slots||3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 3 x PCIe 4.0 x16 (x16/x16/x16) * AMD TRX40 chipset 1 x PCIe 4.0 (x4 mode)|
|Storage||3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode) AMD TRX40 chipset : 1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10|
ASUS Turbo LAN Utility
ASUS LAN Guard
|Audio||Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in) Audio Feature : – DTS X®:Ultra – Optical S/PDIF out port(s) at back panel – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity – Unique de-pop circuit: Reduces start-up popping noise to audio outputs|
|USB Ports||AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD TRX40 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board) AMD TRX40 chipset : 6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board) AMD TRX40 chipset : 2 x USB 2.0 port(s) (2 at mid-board) ASMedia® USB 3.2 Gen 1 controller : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A) GL852G USB Hub : 2 x USB 2.0 port(s) (2 at mid-board);|
|Special Features||ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App ASUS SafeSlot – Protect your graphics card Investment AURA : – Aura RGB Strip Headers – Aura Lighting Effects Synchronization with compatible ASUS ROG devices – Addressable Gen 2 Header ASUS Exclusive Features : – AI Suite 3 – Ai Charger – Onboard Button : Power – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface – Turbo LAN – Crystal Sound 3 – Armoury Crate – Pre-mounted I/O Shield ASUS Quiet Thermal Solution : – Stylish Design Heat-pipe solution – Stylish Fanless Design with M.2 Heat-sink solution – ASUS Fan Xpert 4 ASUS EZ DIY : – ASUS EZ Flash 3 – ASUS USB BIOS FlashBack™ – ASUS UEFI BIOS EZ Mode – Multi-language BIOS ASUS Q-Design : – ASUS Q-Code – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) – ASUS Q-Slot – ASUS Q-DIMM – ASUS Q-Connector|
|Back I/O Ports||1 x LAN (RJ45) port(s)|
4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™)
6 x USB 3.2 Gen 1 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS FlashBack™ Button(s)
|Internal I/O Ports||1 x Q_Code|
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 with E key for Wi-Fi module
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector) x With flexkey function
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x USB 3.2 Gen 2 front panel connector
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x Q-Connector
1 x Extension Cable for RGB strips (40 cm)
1 x Extension cable for Addressable LED
1 x CPU Fan Holder
|BIOS||1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2|
|Manageability||WfM 2.0, WOL by PME, PXE|
|Operating System||Windows® 10 64-bit|
|Form Factor||ATX Form Factor|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
