Phantom Gaming 3X Cooling System For Cool and Silent.
Asrock AMD RX 6700 XT Phantom Gaming D 12GB OC Crafted for the best balance between the thermal efficiency and silence by all the details.

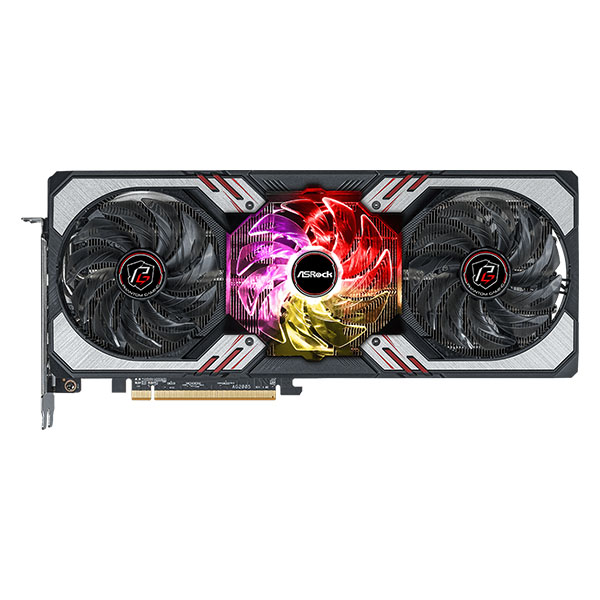

Striped Axial Fan Designed For Enhanced Airflow.
Asrock AMD RX 6700 XT Phantom Gaming D 12GB OC ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Air Deflecting Fin Guide Airflow to Go Through Regularly & Quickly.
Asrock AMD RX 6700 XT Phantom Gaming D 12GB OC Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe Consolidated to Maximize the Contact.
Asrock AMD RX 6700 XT Phantom Gaming D 12GB OC The heat pipes are consolidated to maximize the contact among each other and also the GPU baseplate for the optimized heat dissipation.
Copper Base Maximize GPU Contact Area.
With a premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding Improve Heat Dissipation.
Effectively isolate all coverage of the gap between the pipe and stacked fins, hence improving heat dissipation effectively.
Specifications:
Graphics Engine | AMD Radeon™ RX 6700 XT |
Bus Standard | PCI® Express 4.0 |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Video Memory | 12GB GDDR6 |
Engine Clock | Boost Clock: 2622 MHZ |
| Game Clock: 2548 MHZ |
| Base Clock: 2457 MHZ |
Stream Processors | 2560 |
Memory Clock | 16 Gbps |
Memory Bus | 192-bit |
Resolution | Digital Max Resolution: 7680×4320 |

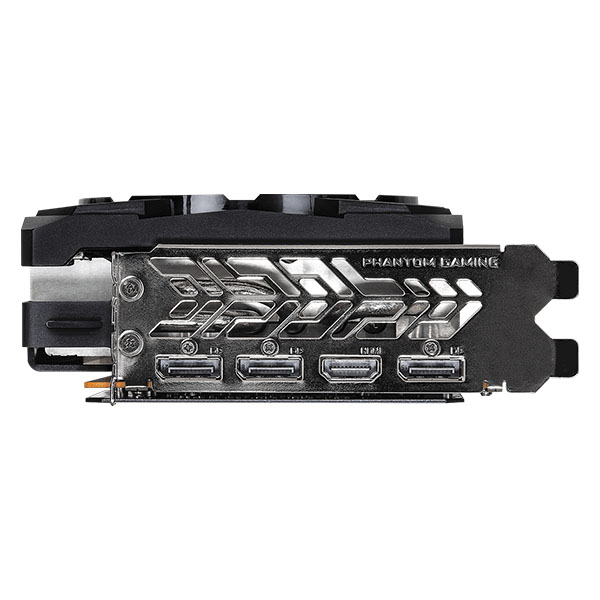

Interface | 1 x HDMI™ 2.1 |
| 3 x DisplayPort™ 1.4 with DSC |
HDCP Support | Yes |
Multi-view | 4 |
Recommended PSU | 700W |
Power Connector | 2 x 8-pin |
Accessories | 1 x Quick Installation Guide |
Dimensions | 305 x 131 x 55mm, 2-slot |
Weight | 1187 g |
