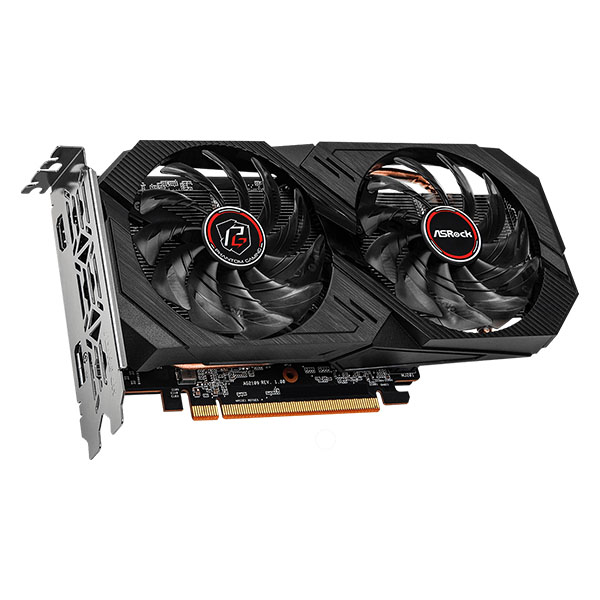

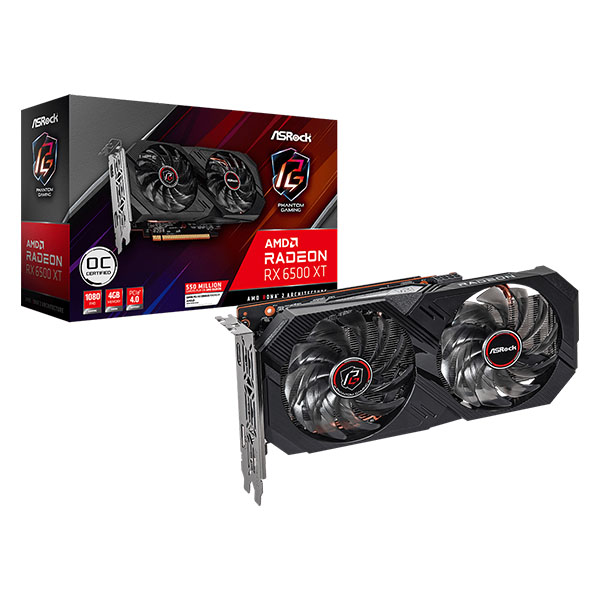

Asrock AMD RX 6500 XT Phantom Gaming D 4GB OC Graphics Card:
Overview :

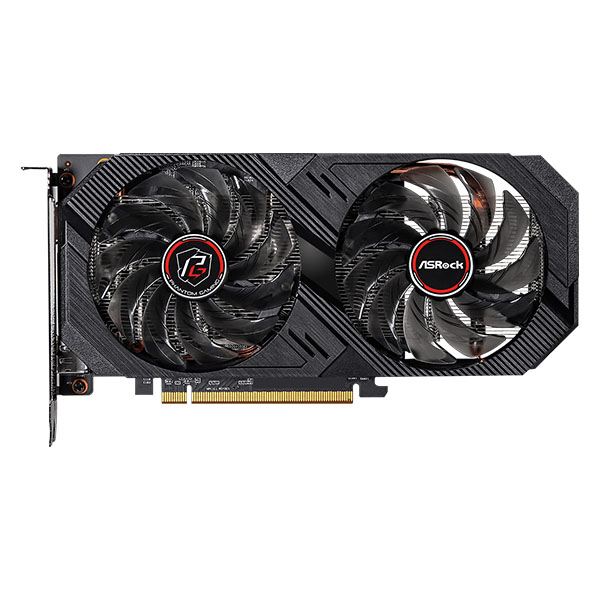

Dual Fan Design
Asrock Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering an excellent gaming experience with a stylish and streamlined design.

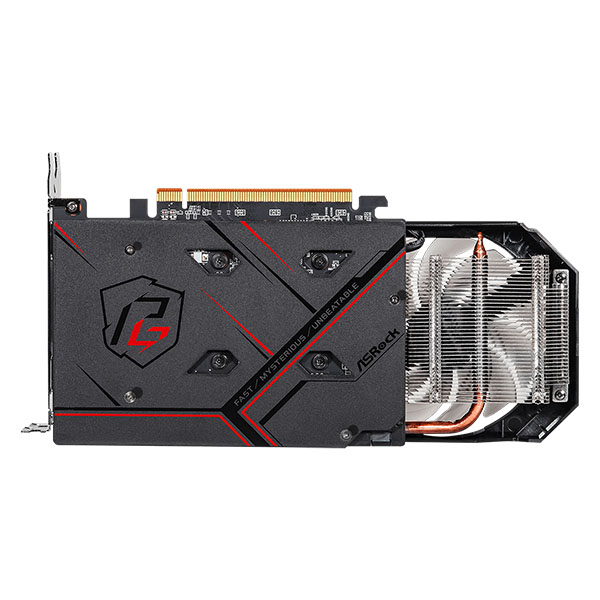

Stylish Metal Backplate Solid, Fancy, Cool.
Asrock AMD RX 6500 XT Phantom Gaming D 4GB OC Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visuals. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Axial Fan Designed For Enhanced Airflow.
Asrock AMD RX 6500 XT Phantom Gaming D 4GB OC ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling Spin For Cooling, Stop For Silence.
Asrock AMD RX 6500 XT Phantom Gaming D 4GB OC The fan spins when the temperature goes high for the optimal cooling and stops when the temperature goes low for the complete silence.’
Ultra-fit Heatpipe Consolidated to Maximize the Contact.
Asrock AMD RX 6500 XT Phantom Gaming D 4GB OC The heat pipes are consolidated to maximize the contact among each other and also the GPU baseplate for the optimized heat dissipation.
Copper Base Maximize GPU Contact Area.
Asrock AMD RX 6500 XT Phantom Gaming D 4GB OC With a premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
Nano Thermal Paste Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Specifications:
| Graphics Engine | AMD Radeon™ RX 6500 XT |
| Bus Standard | PCI® Express 4.0 x4 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Video Memory | 4GB GDDR6 |
| Engine Clock | Boost Clock: 2820 MHZ |
| Game Clock: 2650 MHZ | |
| Base Clock: 2365 MHZ | |
| Stream Processors | 1024 |
| Memory Clock | 18 Gbps |
| Memory Bus | 64-bit |
| Resolution | Digital Max Resolution: 7680×4320 |

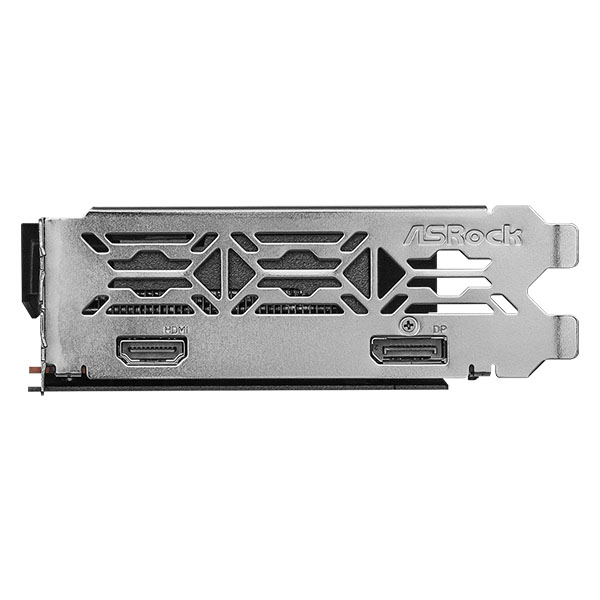

| Interface | 1 x HDMI™ 2.1 |
| 1 x DisplayPort™ 1.4 with DSC | |
| HDCP Support | Yes |
| Multi-view | 2 |
| Recommended PSU | 400W |
| Power Connector | 1 x 8-pin |
| Accessories | 1 x Quick Installation Guide |
| Dimensions | 240 x 129 x 42 mm, 2-slot |
| Weight | 459 g |
