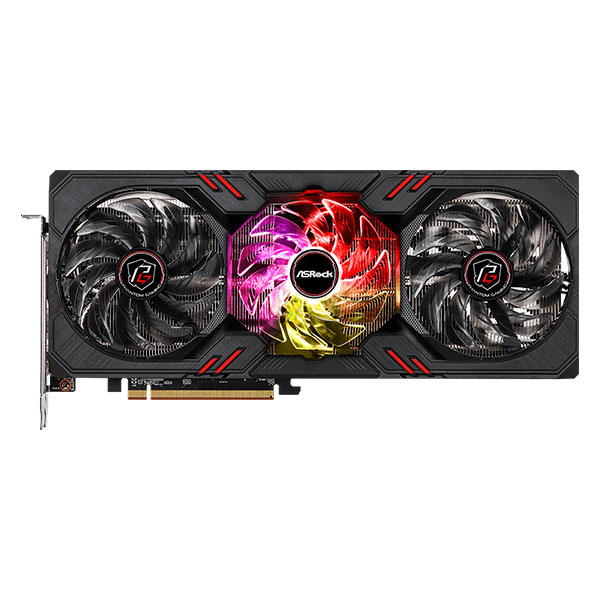

Phantom Gaming 3X Cooling System For Cool and Silent.
Asrock AMD RX 6600 XT Phantom Gaming D 8GB OC Crafted for the best balance between the thermal efficiency and silence by all the details.
Striped Axial Fan Designed For Enhanced Airflow.
Asrock AMD RX 6600 XT Phantom Gaming D 8GB OC ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
Air Deflecting Fin Guide Airflow to Go Through Regularly & Quickly.
Asrock AMD RX 6600 XT Phantom Gaming D 8GB OC Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe Consolidated to Maximize the Contact.
Asrock AMD RX 6600 XT Phantom Gaming D 8GB OC The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Copper Base Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Specifications:
Graphics Engine
AMD Radeon™ RX 6600 XT
Bus Standard
PCI® Express 4.0
DirectX
12 Ultimate
OpenGL
4.6
Video Memory
8GB GDDR6
Engine Clock
Boost Clock: 2607 MHZ
Game Clock: 2428 MHZ
Base Clock: 2064 MHZ
Stream Processors
2048
Memory Clock
16 Gbps
Memory Bus
128-bit
Resolution
Digital Max Resolution: 7680×4320

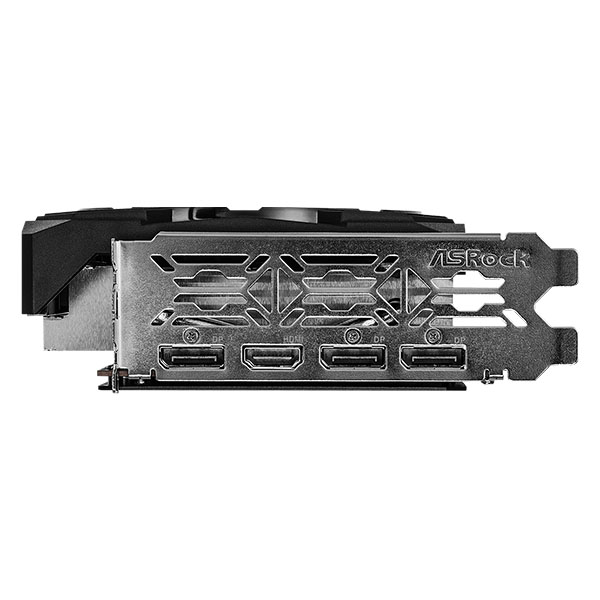

Interface
1 x HDMI™ 2.1
3 x DisplayPort™ 1.4 with DSC
HDCP Support
Yes
Multi-view
4
Recommended PSU
500W
Power Connector
1 x 8-pin
Accessories
1 x Quick Installation Guide
Dimensions
305 x 131 x 48 mm, 2-slot
Weight
894 g
Additional information
Weight
5 kg
Brand
Asrock
GPU
RX 6600 XT
Memory Interface
128-Bit
Memory Size
8 GB
EAN/UPC
4710483935909
Available Models
RX-6600-XT-PHANTOM-D-OC
