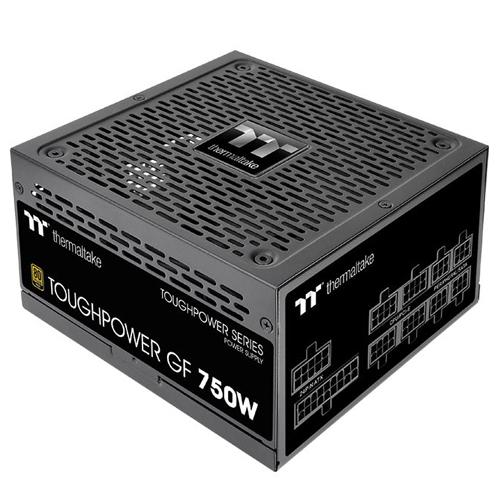

Thermaltake Toughpower GF 750W 80 PLUS Gold certified fully modular PSU with Hydraulic Bearing Fan PS-TPD-0750FNFAGx-2
Overview :
The Toughpower GF 750W is built to deliver 80 PLUS Gold efficiency with up to 90% of it. Constructed with a 140mm Hydralic Bearing Fan, Japanese main capacitors and other premium components, the Toughower GF 750W delivers a continuous and stable power output at 40℃, allowing near silent operation and reliable performance. With an ample 10-year warranty, the Toughpower GF 750W Gold is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.
Ultra Quiet 140mm Hydralic Bearing Fan
The Toughpower GF 750W Gold adopts a 140mm ultra quiet Hydralic Bearing Fan, ensuring the overall good cooling performance and silent operation.
Fully Modular Flat Cable Design
Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.
High quality Japanese Main Capacitor
High quality Japanese main capacitor greatly improves the power supplies durability and ensures the Toughpower GF 750W to have highest stability and reliability.
DC to DC for Stable Output Voltage
With DC to DC design, the unit can optimize maximum energy harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads to your power supply.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Lake C6/C7 States Ready
Toughpower GF 750W saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Specification :
P/N | PS-TPD-0750FNFAGx-2 |
WATTS | 750W |
MODEL | TTP-750AH3FCG-B |
MAX. OUTPUT CAPACITY | 750W |
PEAK OUTPUT CAPACITY | 900W |
COLOR | Black |
DIMENSION ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
PFC (POWER FACTOR CORRECTION) | Active PFC |
POWER GOOD SIGNAL | 100-500 msec |
HOLD UP TIME | > 12msec at 80% of full load at 230Vac input |
INPUT CURRENT | 10A max. |
INPUT FREQUENCY RANGE | 47Hz – 63Hz |
INPUT VOLTAGE | 100V – 240V~ |
OPERATING TEMPERATURE | 0°C to + 40°C |
OPERATING HUMIDITY | 20% to 90%,non-condensing |
STORAGE TEMPERATURE | -20°C to + 70°C |
STORAGE HUMIDITY | 5% to 95%, non-condensing |
COOLING SYSTEM | 14cm hydraulic bearing fan |
EFFICIENCY | Meet 80 PLUS®Gold at 115Vac input. |
MTBF | 100,000 hrs minimum |
SAFETY APPROVAL | CE/cTUVus/TÜV/FCC/EAC |
PCI-E 6+2PIN | 4 |
