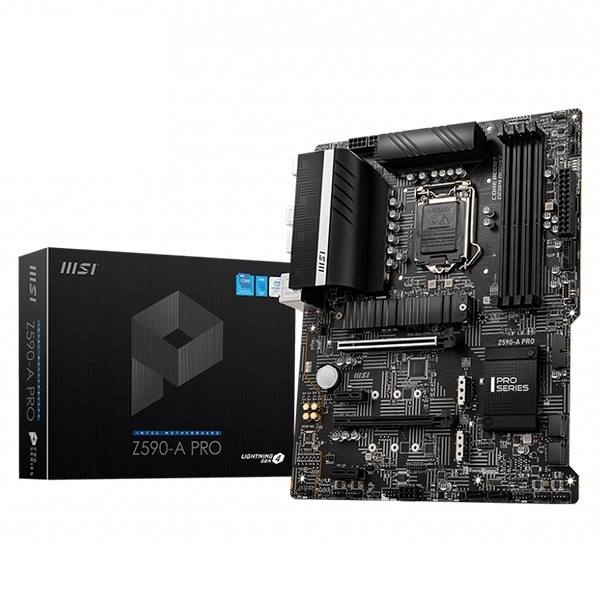

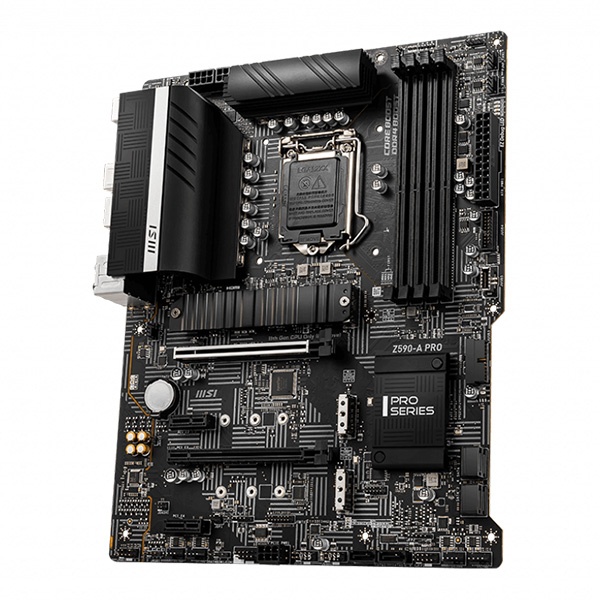

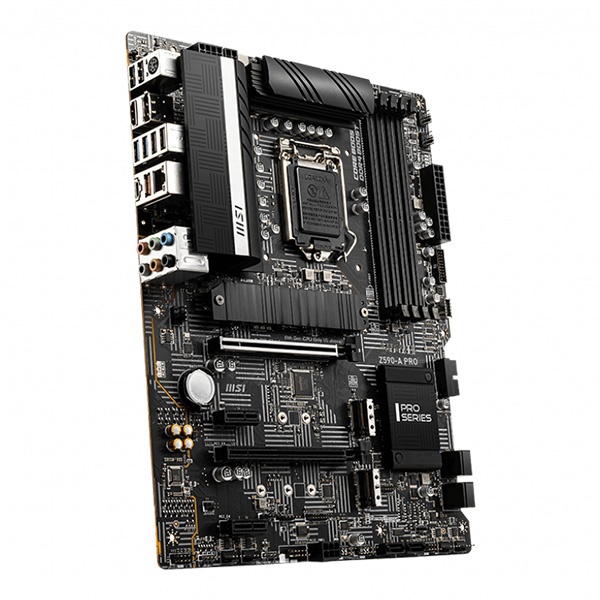

MSI Z590-A PRO INTEL 11TH GENERATION Z590 ATX LGA 1200 Socket GEN 4 Support Gaming Motherboard
Overview :
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
8+4 Pin power supply
By providing 8+4 pin connectors to ensure adequate power
supply to unleash ultimate multi-core CPU performance.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
Specifications :
CPU (MAX SUPPORT) | i9 |
SOCKET | 1200 |
CHIPSET | Intel® Z590 Chipset |
DDR4 MEMORY | 5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ |
4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ | |
3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz | |
MEMORY CHANNEL | Dual |
DIMM SLOTS | 4 |
MAX MEMORY (GB) | 128 |
PCI-E X16 | 2 |
PCI-E GEN | Gen4 |
PCI-E X1 | 2 |
SATAIII | 6 |
M.2 SLOT | 3 |
RAID | 0/1/5/10 |
TPM (HEADER) | 1 |
LAN | 1x Intel® I225-V 2.5Gbps LAN |
USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 4(Gen 1, Type A) |
USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
USB 2.0 PORTS (FRONT) | 4 |
USB 2.0 PORTS (REAR) | 4 |
SERIAL PORTS(FRONT) | 1 |
AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
DISPLAYPORT | 1 |
HDMI | 1 |
DIRECTX | 12 |
FORM FACTOR | ATX |
CROSSFIRE | Y |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
