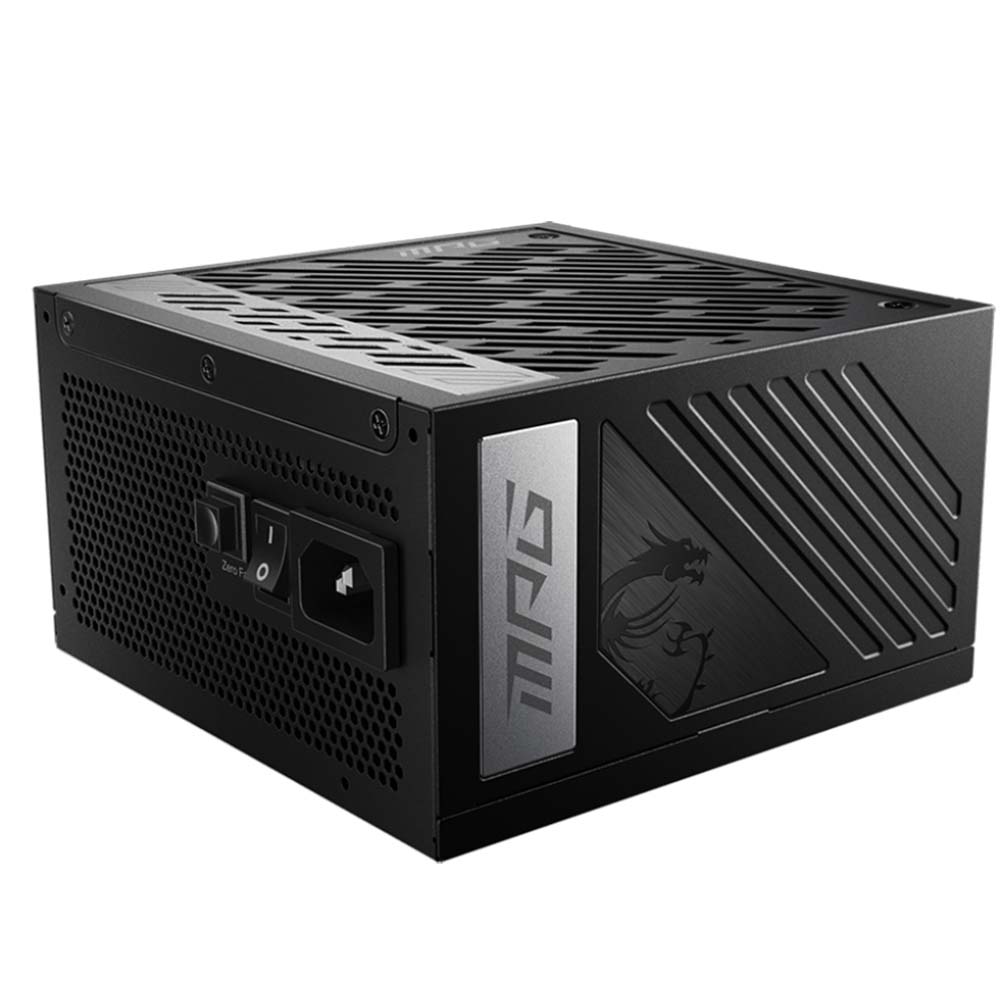

MSI MPG A1000G PCIE5 80 Plus Gold 1000W Fully Modular PCIE 5.0 ATX 3.0 Power Supply
Features :
- Supports Nvidia® GeForce RTXTM 40 Series graphics cards
- Full modular design
- Flat cables
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
Overview :
The MSI MPG A1000G PCIE5 80 Plus Gold Power Supply brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

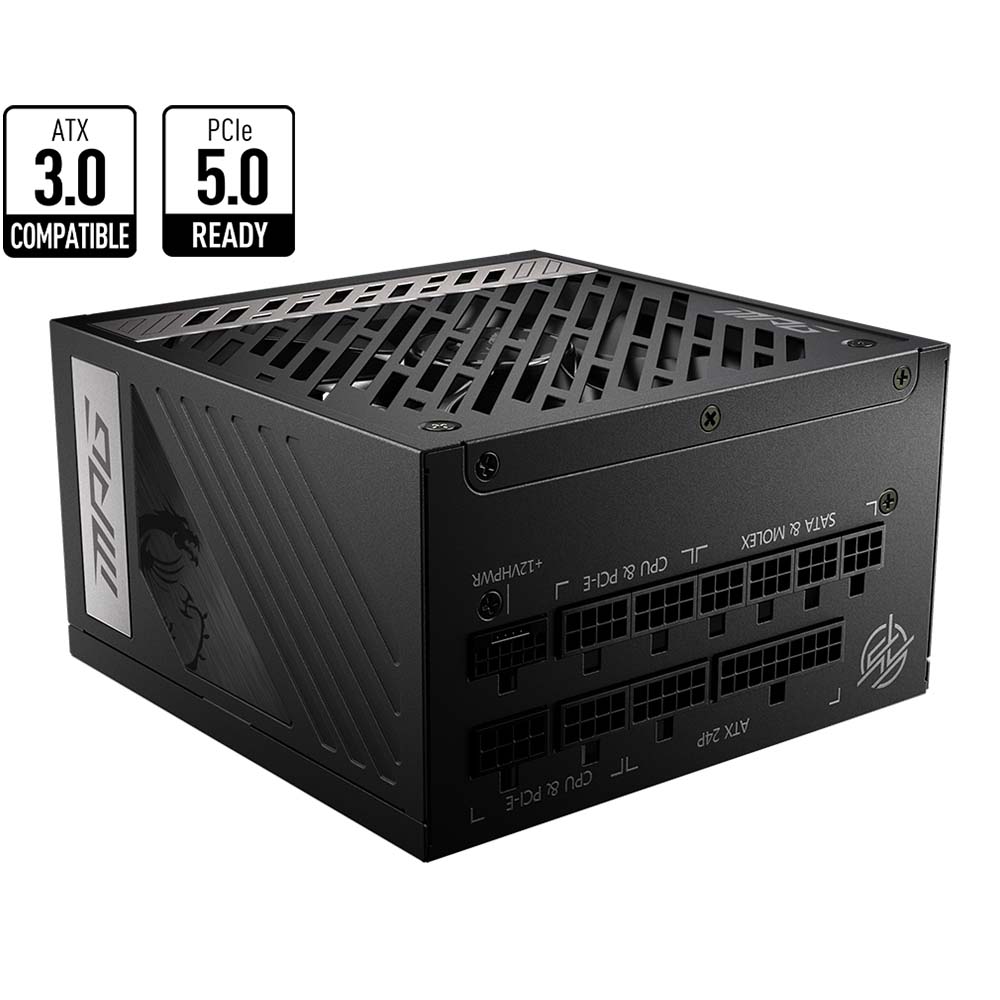

ATX 3.0 compatible
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
level up your GAME
With native 16 PIN PCIe connector the power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.
80 PLUS GOLD CERTIFIED
The efficiency of MSI MPG A1000G PCIE5 80 Plus Gold Power Supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
SINGLE-RAILED DESIGN
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s 5 CPU & PCI-E slots are more than plenty.
GPU SUPPORT FOR ALL
The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MSI MPG A1000G PCIE5 80 Plus Gold Power Supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

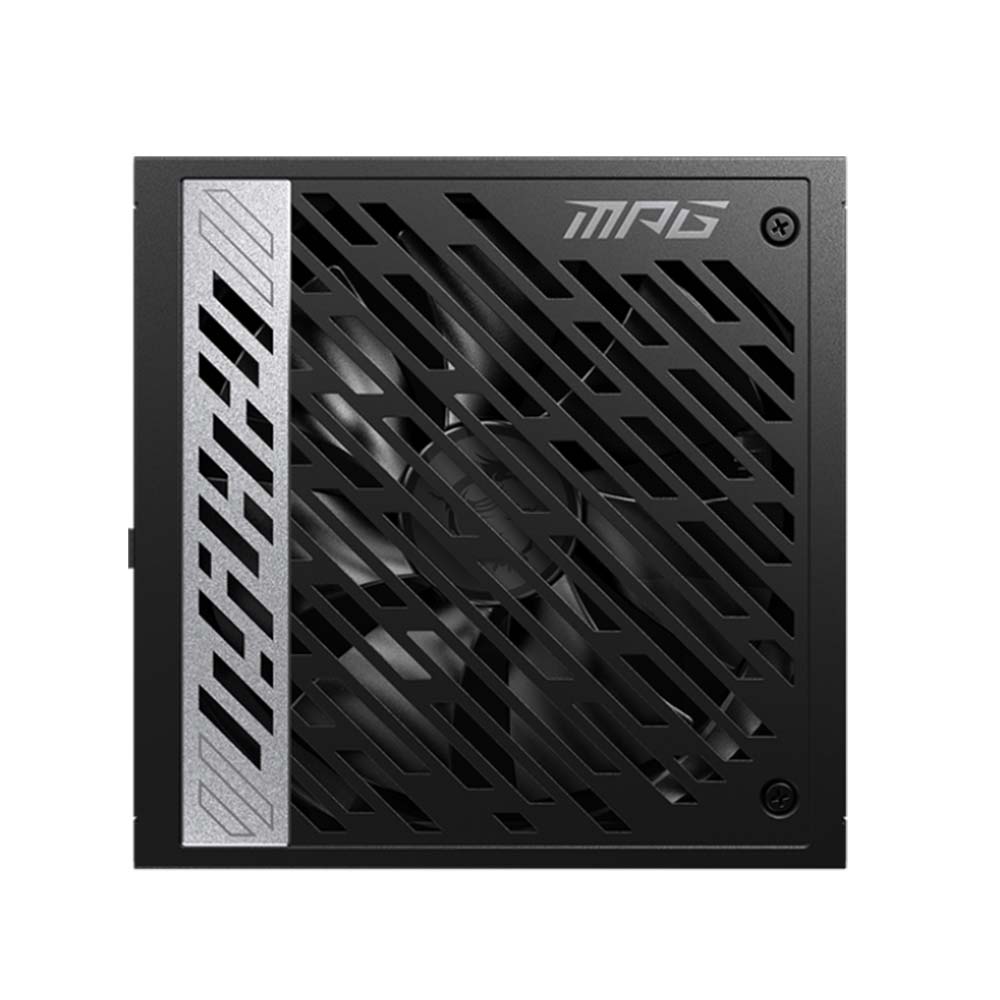

0% RPM MODE
FLUID DYNAMIC BEARING
The fan 0 RPM mode can stop the fan’s operation when TDP is below 40% to help with energy saving and providing silence.
*0% RPM Mode is on by default. Press the button to turn it off.
FLUID DYNAMIC BEARING
This power supply’s fan sports a fluid dynamic bearing, chosen to increase the life span of the fan while maintaining low noise level.
100% JAPANESE 105°C CAPACITORS
Aiming for unwavering product quality and performance stability, this power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

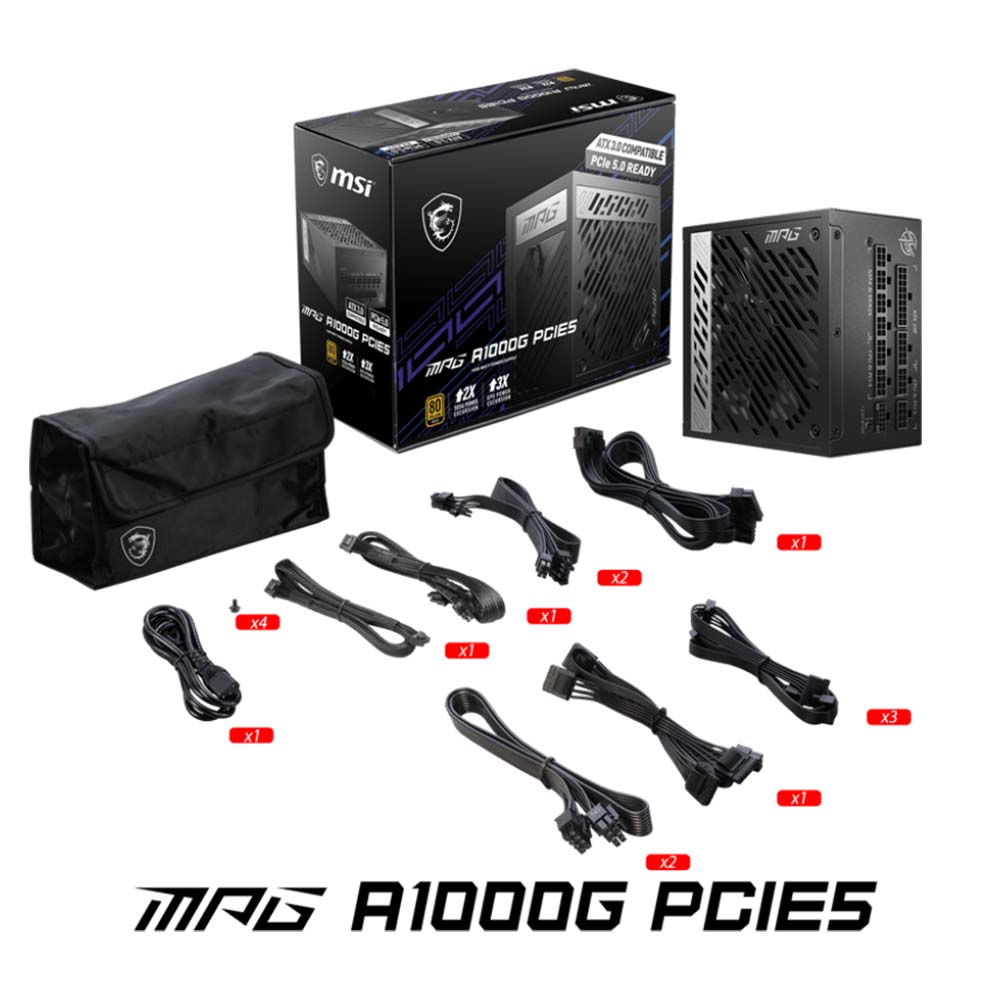

FULLY MODULAR
The MSI MPG A1000G PCIE5 80 Plus Gold Power Supply’s fully modular design means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.
Specifications :
Efficiency Rating | Modular |
Fan Size | Fan Bearing |
Dimensions (DxWxH) | PFC Type |
Input Voltage Range | Power Watt |
Power Excursion | Input Frequency Range |

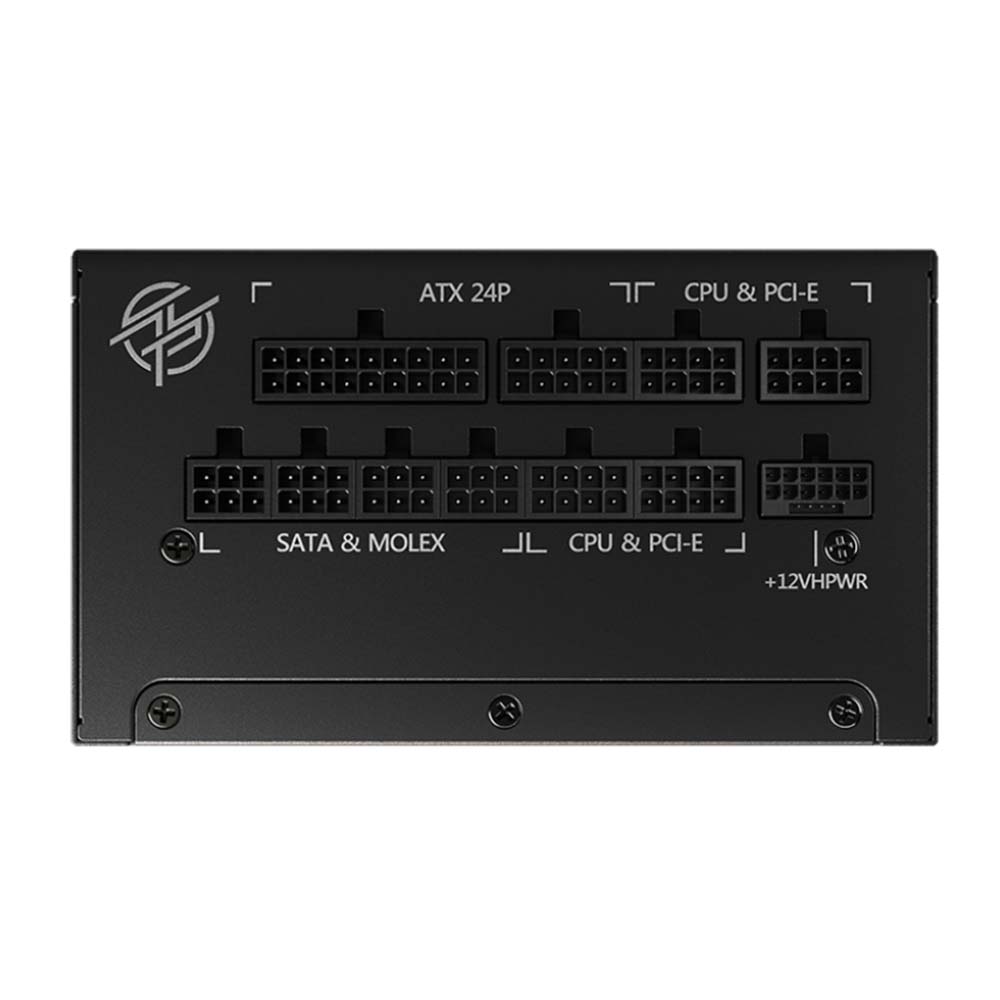

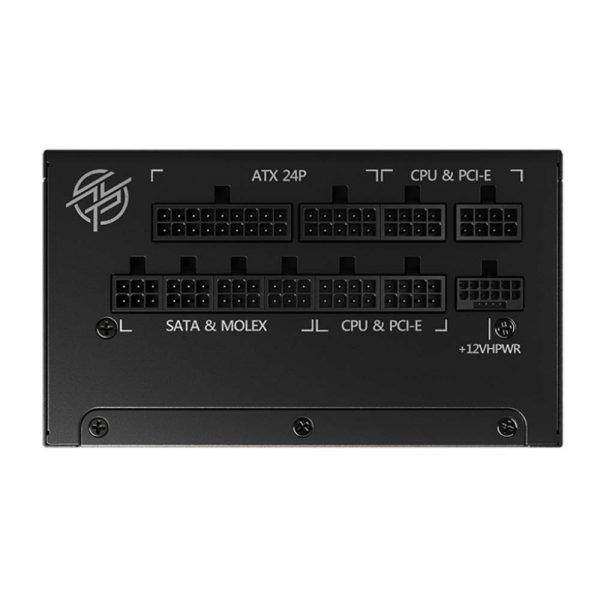

Protection | ATX (24 pin) |
EPS (4+4 pin) | PCI-E 5.0 (16 pin) |
PCI-E (6+2 pin) | SATA (15 pin) |
MOLEX (4 pin) | FDD (4 pin) |
80 PLUS Gold (up to 90%) | |
Yes (fully modular) | 135 mm |
Fluid Dynamic Bearing | 150 x 150 x 86 mm |
Active PFC | 100~240 VAC |
1000W | 2000W (*up to 200% of the PSU’s rated power for 100μs) |
50~60 Hz | OCP / OVP / OPP / OTP / SCP / UVP |
ATX (24 pin) | 1 |
EPS (4+4 pin) | 2 |
PCI-E 5.0 (16 pin) | 1 |
PCI-E (6+2 pin) SATA (15 pin) MOLEX (4 pin) FDD (4 pin) | 6 12 4 1 |
Warranty | 10 Years |
