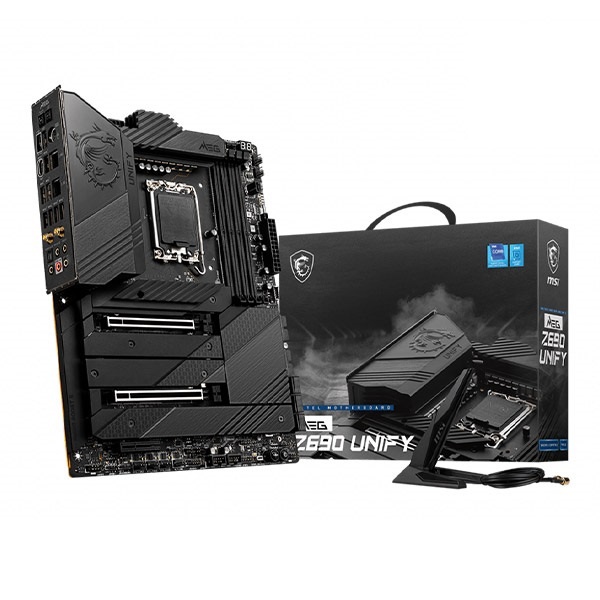

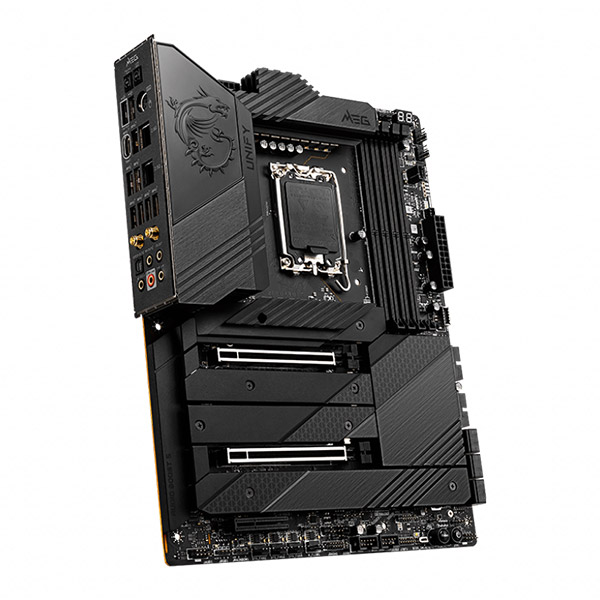

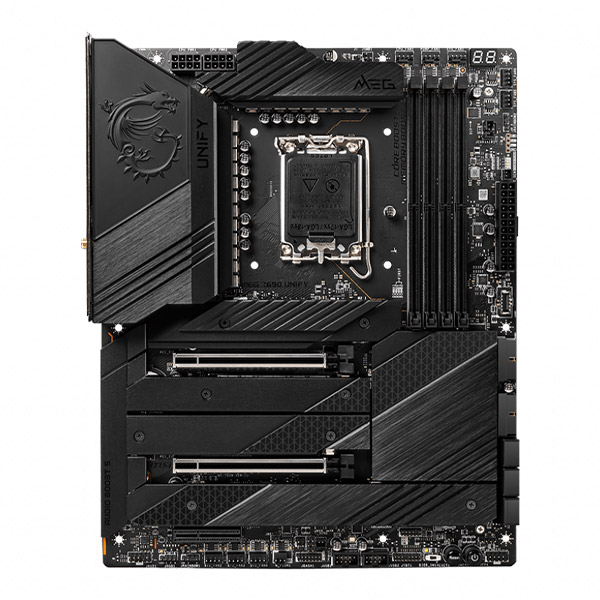

MSI MEG Z690 Unify WiFi INTEL 12TH GENERATION Z690 ATX LGA 1700 Socket DDR5 RAM and PCIE 5 Support Gaming Motherboard
Overview :
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, it is ready to deliver the world class memory performance.
- Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Extreme Power Design: Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.
- Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2×2 20G.
- 8 Layer Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise in MSI MEG Z690 Unify WiFi
- Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
Direct 19+2 Phases Power Design
Extreme direct power solution with 19+2 phases and 105A Smart
Power Stage unleash the maximum CPU performance.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Quintuple M.2 Connectors
Onboard 5x M.2 connectors with quad PCIe 4.0 solution,
strengthened by double-sided M.2 Shield Frozr.
Outstanding Cooling Solution
Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Doublesided M.2 Shield Frozr and Aluminum Backplate ensure the
extreme performance with low temp for MSI MEG Z690 Unify WiFi
Front and Rear Lightning USB 20G
USB 3.2 Gen 2×2 port offers 20Gbps transmission speed, 4x faster
then USB 3.2 Gen 1, available when connecting the front and rear
USB Type-C.
Dual 2.5G LAN
Onboard dual 2.5Gbps LAN with LAN manager provides incredible
data transfer speed faster than general Gigabit LAN, delivering
the best online gaming experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps in MSI MEG Z690 Unify WiFi
SMT PCIE and Memory Slot
The advanced SMT(Surface Mount Technology) welding process
reduces the defect rate of slot solder joints, deliver the clean and
pure signal.
8 Layer PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and longlasting system stability without any compromise in MSI MEG Z690 Unify WiFi
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| DDR5 MEMORY | 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E X4 | 1 |
| SATAIII | 6 |
| M.2 SLOT | 5 |
| RAID | 0/1/5/10 |
| LAN | 2x Intel® I225V 2.5Gbps LAN controller |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E module |
| USB 3.2 PORTS (FRONT) | 1(Gen2x2, Type C), 4(Gen1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen2x2, Type C), 7(Gen2, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| DIMENSION | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| AUDIO PORTS (REAR) | 7.1-Channel High Definition Audio+ Optical S/PDIF (Realtek® ALC4080 Codec) |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| SLI | Y |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
