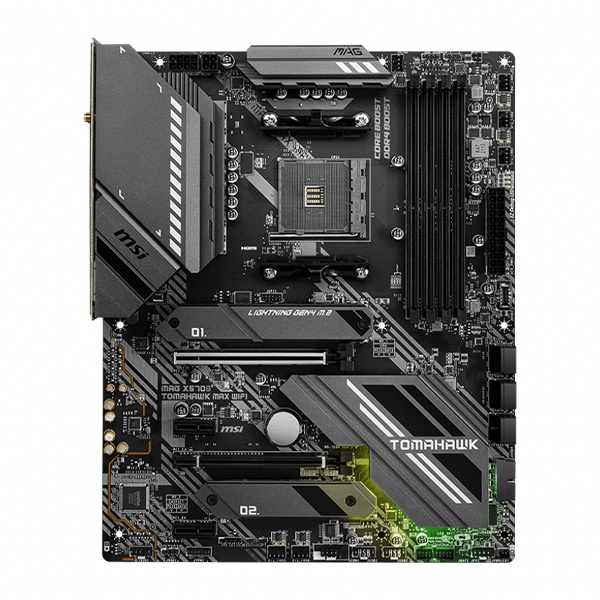

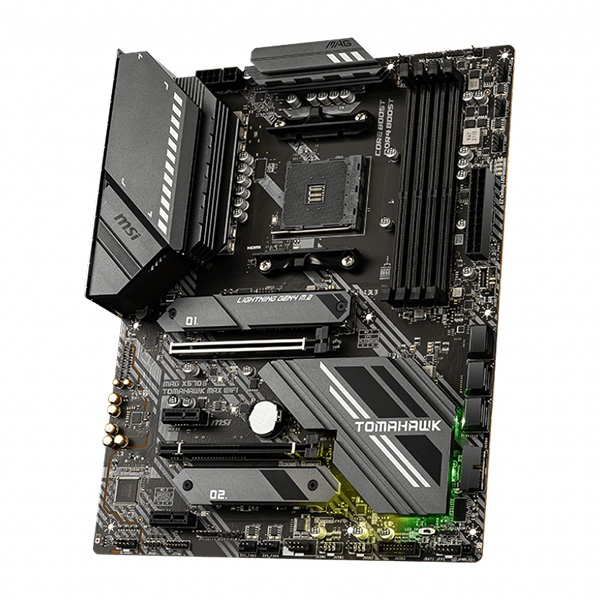

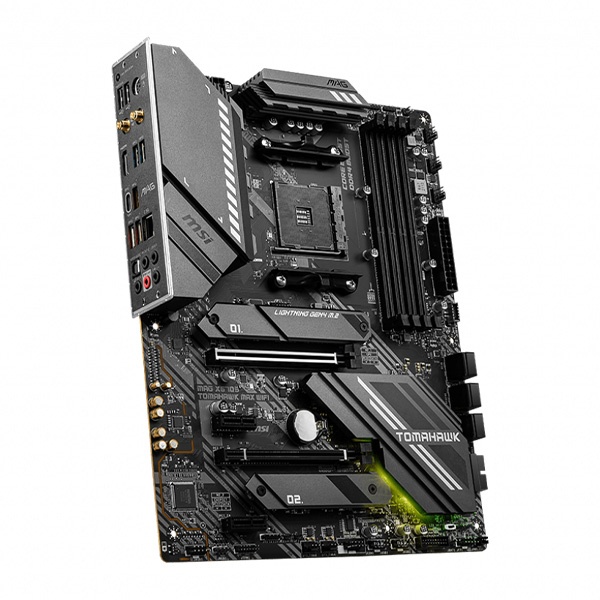

MSI MAG X570S Tomahawk Max WiFi AMD RYZEN X570S ATX AM4 Socket GEN 4 Support Gaming Motherboard
Overview :
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
Lightning Gen4 Solution
MSI MAG X570S Tomahawk Max WiFi The latest Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
Extended Heatsink Design
MSI MAG X570S Tomahawk Max WiFi extended PWM heatsink and enhanced circuit design ensure even high-end processors run at full speed.
M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
2.5G Network Solution
MSI MAG X570S Tomahawk Max WiFi Featuring premium 2.5G LAN with LAN manager to deliver better network experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO, and BSS color technology, delivering speeds up to 2400Mbps.
Core Boost
With premium layout and optimized power design to support
more cores and provide better performance.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and
performance reliability.
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects,
controlled in one click for MSI MAG X570S Tomahawk Max WiFi
Specifications :
| CPU (MAX SUPPORT) | RYZEN 9 |
| SOCKET | AM4 |
| CHIPSET | AMD X570 Chipset |
| DDR4 MEMORY | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 / 4600/ 4733/ 4866/ 5000/ 5100 Mhz by JEDEC and A-XMP OC MODE |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 2 |
| RAID | 0/1/10 |
| LAN | Realtek® 8125B 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E AX210 |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 4(Gen 1, Type A) |

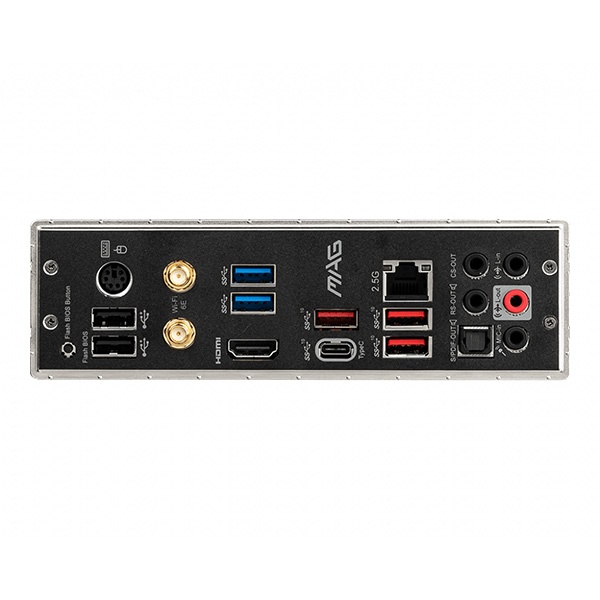

| USB 3.2 PORTS (REAR) | 1(Gen 2, Type C), 2(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 (Type-A) |
| AUDIO PORTS (REAR) | Realtek® ALC4080 Codec |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
