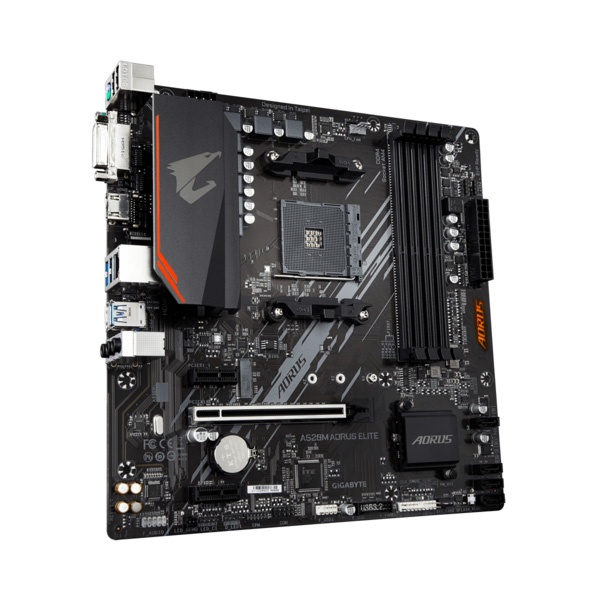

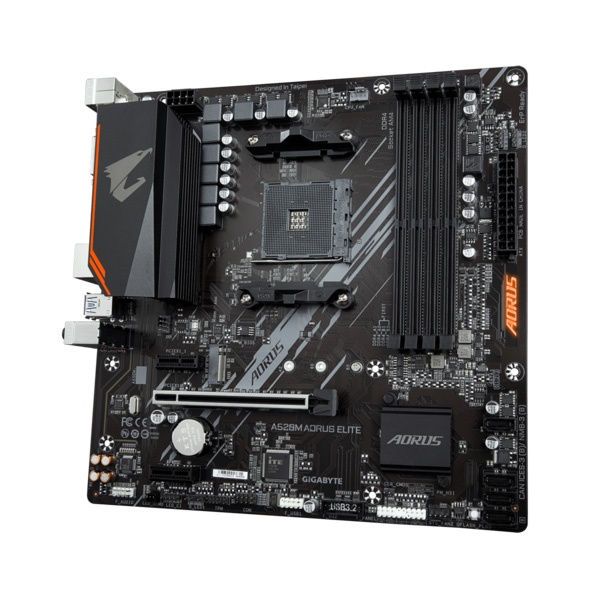

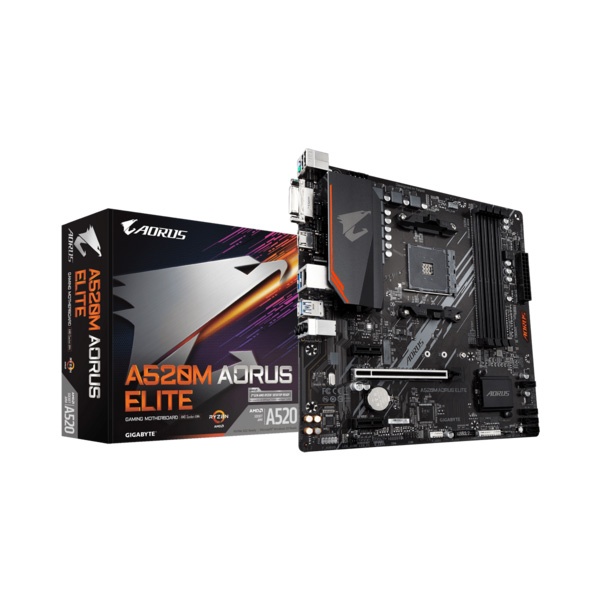

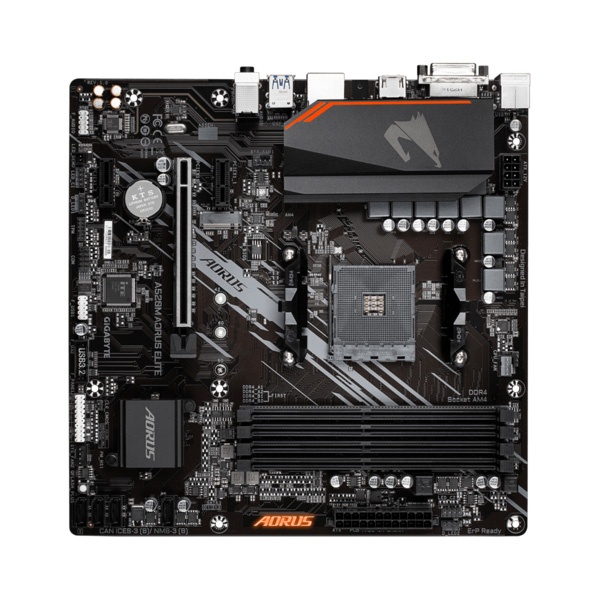

Gigabyte A520M Aorus Elite Motherboard

8,249 (Inclusive of GST)

Available Models: GA-A520M-AORUS-ELITE
Brand:

Out of stock

Email when back in stock

Gigabyte A520M Aorus Elite Motherboard :

Features :

AMD A520 AORUS Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus
  • Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D Ports for Multiple Display
  • Features High Quality Audio Capacitors
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Specifications :

  • CPU :
    1. AMD Socket AM4, support for AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors

    (Please refer “CPU Support List” for more information.)

  • Chipset :
    1. AMD A520
  • Memory :
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5000 series processors/ 3rd Generation AMD Ryzen™ :
      Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics :

    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

    1. 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Maximum shared memory of 16 GB

  • Audio :
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • LAN :
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots :

    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

    Chipset:

    1. 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
  • Storage Interface :

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

    Chipset:

    1. 4 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, and RAID 10
  • USB :

    CPU:

    1. 4 x USB 3.2 Gen 1 ports on the back panel

    Chipset:

    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors :
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 2 x addressable LED strip headers
    6. 2 x RGB LED strip headers
    7. 1 x M.2 Socket 3 connector
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x USB 3.2 Gen 1 header
    12. 1 x USB 2.0/1.1 header
    13. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    14. 1 x serial port header
    15. 1 x Clear CMOS jumper
    16. 1 x Q-Flash Plus button

    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

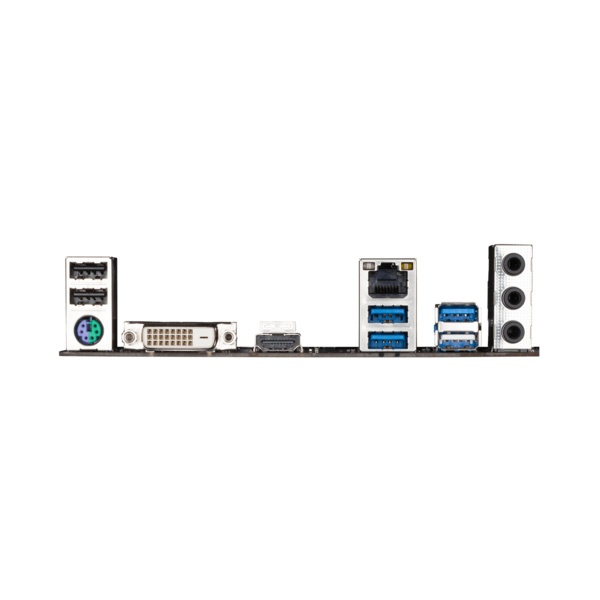

  • Back Panel Connectors :
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-D port
    3. 1 x HDMI port
    4. 4 x USB 3.2 Gen 1 ports
    5. 2 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller :
    1. iTE® I/O Controller Chip
  • H/W Monitoring :
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS :
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features :
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundle Software :
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
  • Operating System :
    1. Support for Windows 10 64-bit
  • Form Factor :
    1. Micro ATX Form Factor; 24.4cm x 24.4cm

Additional information

Weight5 kg
Brand

Gigabyte

Socket

AM4

Chipset

A520

Form Factor

M-ATX

Memory Slot

4 Slot

Platfrom

AMD

Available Models

GA-A520M-AORUS-ELITE

EAN/UPC

4719331809782

Memory Slot Type

DDR4
