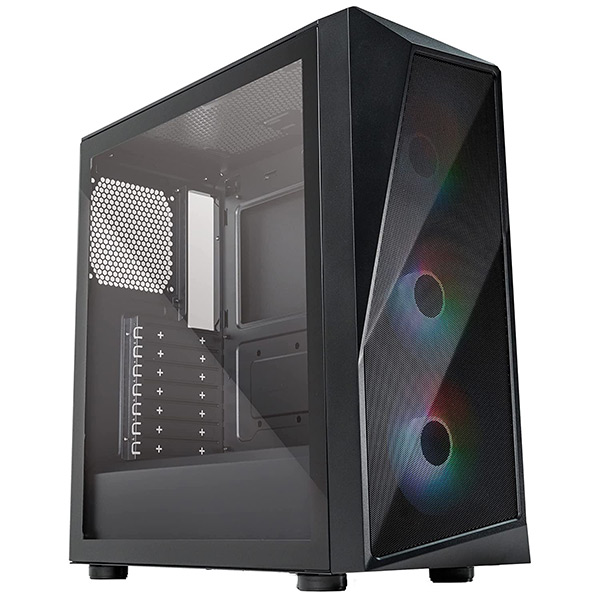

Cooler Master CMP 520 ARGB Cabinet :
Let it glow.
Like a geode cradling glistening crystals within, Cooler Master CMP 520 ARGB asymmetrical front panel design frames the preinstalled three 120mm ARGB fans as unique centerpieces on the build.
Cooler Master CMP 520 ARGB have Ample mesh, provides generous intake for efficient cooling as well as dust filtration, extending the lifespan of installed components while allowing them to operate at maximum capacity.
Several lighting options are offered out of the box, customizable with a single click. Users may also tailor lighting effects and color in depth when connecting the fans to the motherboard, to match the theme of their build or gaming environment.
The perforated power supply shroud accommodates both active and passively cooled PSUs, while keeping cables neatly tucked away for a tastefully sleek build.
Overview :

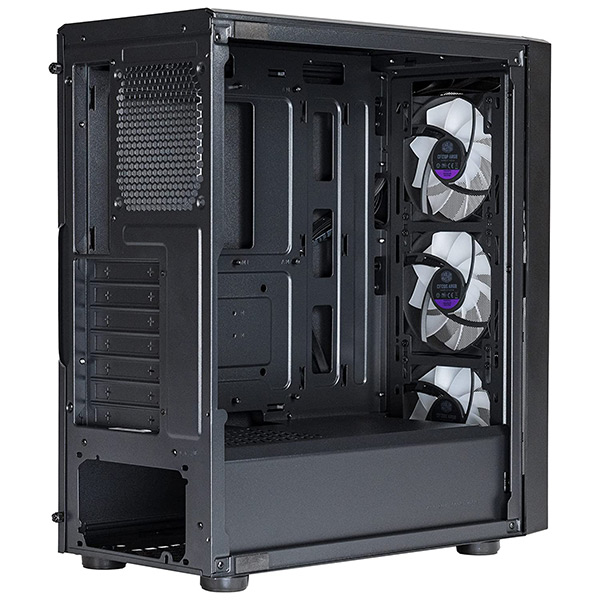

Three 120mm ARGB Fans Included – Three pre-installed 120mm ARGB fans ensure stunning aesthetics, eye-catching design, and thermal excellence. Pre-installed to the reset button for streamlined control of lighting effects, users can also choose to connect the fans to the motherboard for advanced customization.
Note: Reset control and motherboard control are offered as separate options and cannot be operated at the same time.

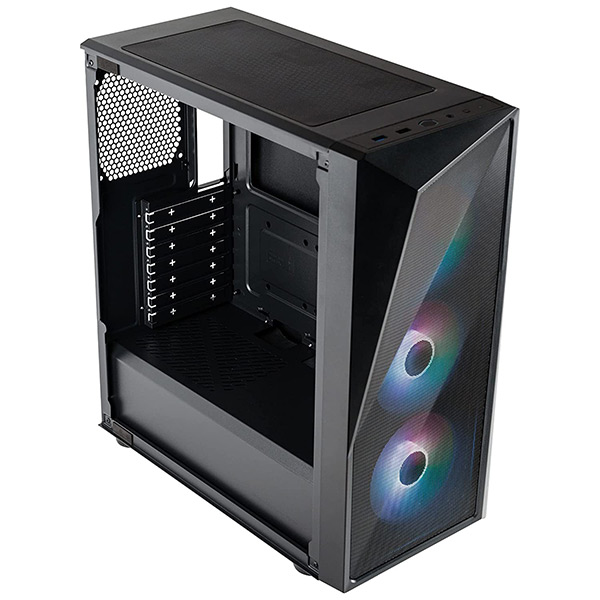

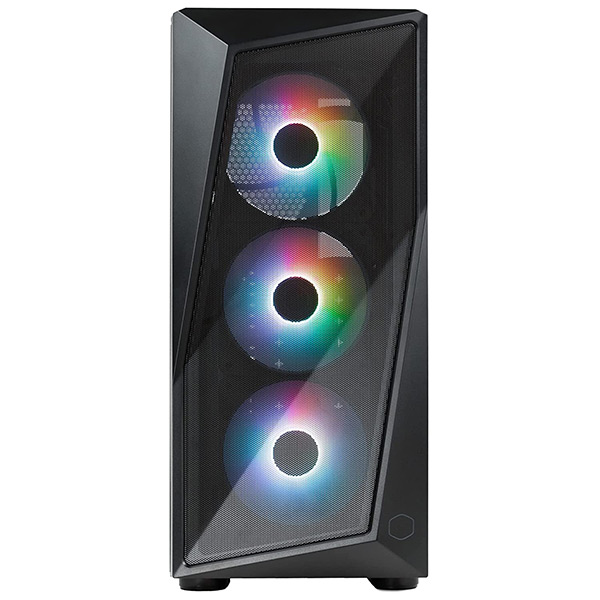

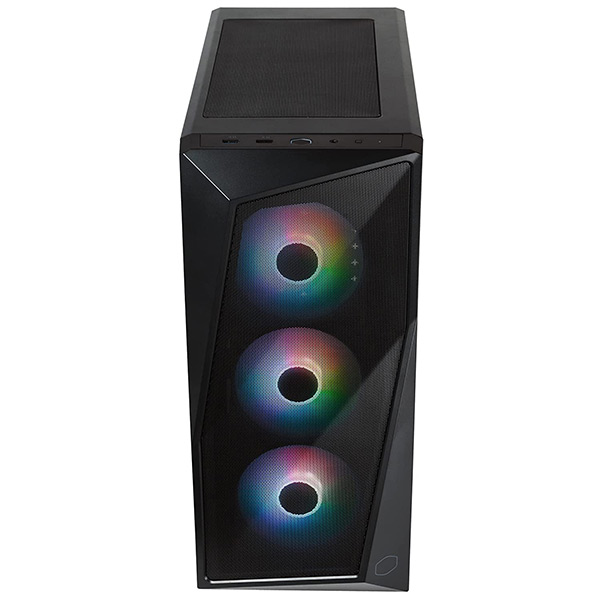

Mesh Geode Front Panel – Inspired by clean-cut, asymmetrical crystal formations, the mesh front panel offers generous intake as well as efficient dust filtration.
Versatile Cooling Options – Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Full Black Coating & PSU Cover – Let your system stand out with an all-black background and a PSU cover to hide cables.
Breathable Power Supply Shroud – The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
Room For Upgrades – Support for up to a 350mm graphics card, a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
Specifications :
| Product Name | CMP 520 | |
| Product Number | CP520-KGNN-S00 | |
| Exterior Color | Black | |
| Materials | Exterior | Steel, Plastic |

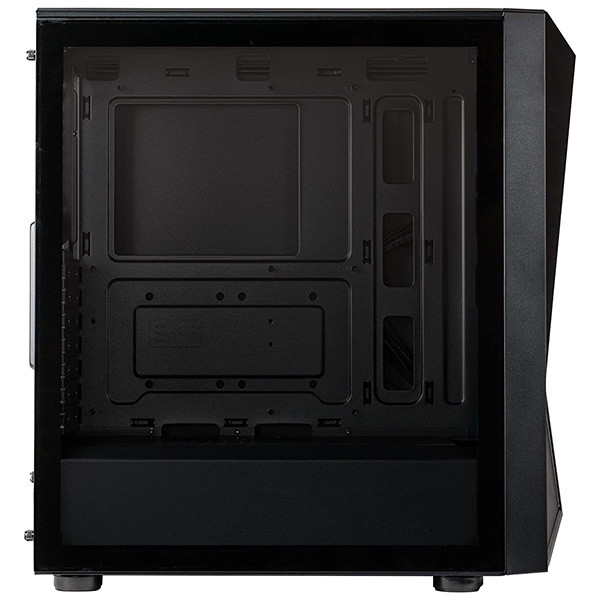

| Left Side Panel | Tempered Glass | |
| Dimensions | Incl. Protrusions | 439 x 204 x 463mm |
| (L x W x H) | Excl. Protrusions | 432 x 204 x 448mm |
| Volume (Liters Excl. Protrusions) | 41.34L | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX | |

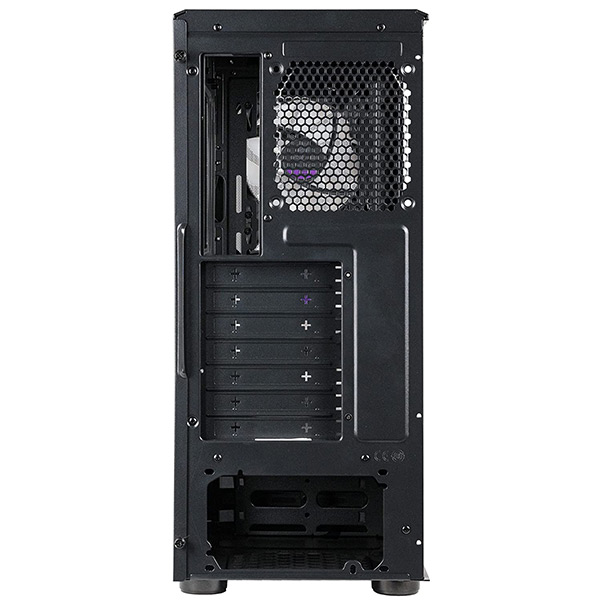

| Expansion Slots | 7 | |
| Drive Bays | 5.25“ ODD | 0 |
| 2.5” / 3.5” HDD | 2 | |
| 2.5” SSD | 2 | |
| I/O Panel | USB Ports | 1 x USB 3.2 Gen 1 Type A,1 x USB2.0 |
| Audio In / Out | 1 x 3.5mm Headset Jack (Audio + Mic) | |
| ARGB Controller | CF120P (integrated with fan) or M/B | |
| Pre-installed Fan(s) | Top | N/A |
| Front | 1*CF120P ARGB+2*CF120S ARGB | |
| Rear | N/A | |
| Fan Support | Top | 2 x 120mm, 2 x 140mm |
| Front | 3x 120mm, 2 x 140mm | |
| Rear | 1 x 120mm | |
| Radiator Support | Top | 120mm/240mm* (*RAM height below 35mm) |
| Front | 120mm/240mm/140mm/280mm | |
| Rear | 120mm | |
| Clearances | CPU Cooler | 161mm |
| Power Supply | 160mm | |
| Graphics Card | 350mm(w/o front fans & radiator) | |

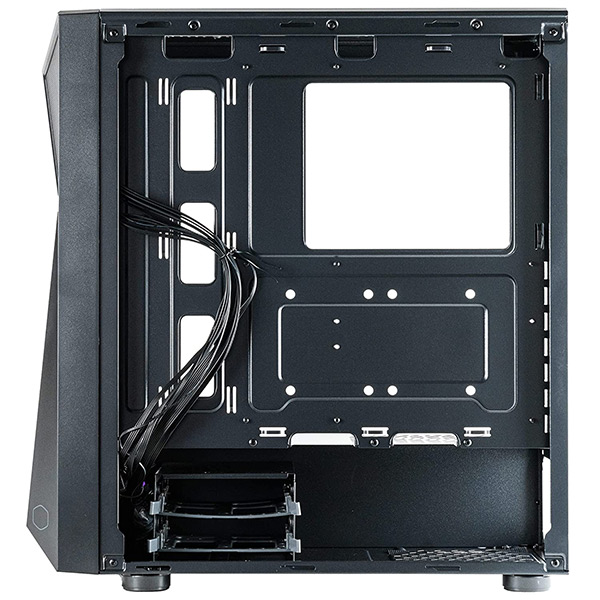

| Cable Routing | Behind MB Tray | 18.5mm |
| Dust Filters | Top, Bottom | |
| Power Supply Support | Bottom Mount, ATX | |
| Warranty | 2 Years |
