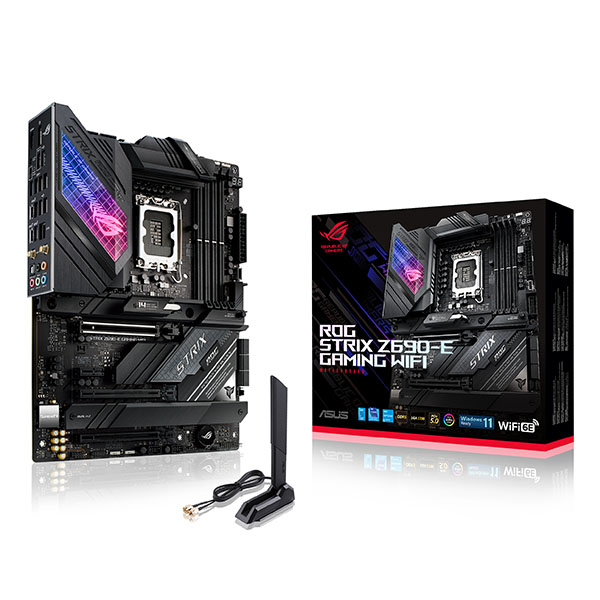

Asus ROG Strix Z690-E Gaming Wi-Fi Motherboard
Features
Intel® Z690 LGA 1700 ATX motherboard with PCIe® 5.0, 18+1 power stages, DDR5, Two-Way AI Noise Cancelation, WiFi 6E, Intel® 2.5 Gb Ethernet, five M.2 slots with heatsinks (including two on the bundled ROG Hyper M.2 card), PCIe® 5.0 NVMe® SSD support, M.2 Combo-Sink, M.2 backplate, PCIe® Slot Q-Release, USB 3.2 Gen 2×2 Type-C®, SATA and Aura Sync RGB lighting
- Ready for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe® 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
- High-performance Networking: On-board Intel® WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2×2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe® Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
Specifications
| CPU | Intel LGA1700 CPU |
| Chipset | Intel® Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 |
| Graphics | 1 x DisplayPort 1 x HDMI® port |
| Expansion Slots | 1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x16 slot (supports x4 mode or x4/x4 mode for ROG HYPER M.2 CARD) 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot |
| Storage | Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| Wireless & Bluetooth | 2×2 Tri-Band Intel Wi-Fi a/b/g/n/ac/ax/az + BT5.2 “Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready** |
| USB | Rear USB: Total 12 ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB: 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C® ) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
