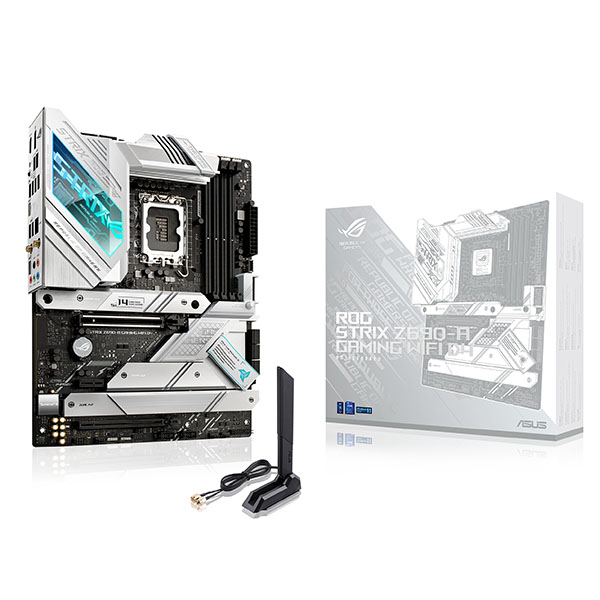

Asus ROG Strix Z690-A Gaming Wi-Fi D4 Motherboard
Features
Intel®Z690 LGA 1700 ATX motherboard with PCIe®5.0, 16+1 DrMos, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel®2.5 Gb Ethernet, four M.2 slots with heatsinks PCIe 4.0 NVMe®SSD support, M.2 backplate, PCIe®Slot Q-Release, USB 3.2 Gen 2×2 Type-C®, SATA and AURA Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
- Optimal Power Solution: 16+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, four onboard M.2 heatsinks and M.2 backplate for the M.2_1 slot
- High-performance Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI® 2.1 and DisplayPort™ 1.4 output, four M.2 slots, as well as USB 3.2 Gen 2×2 Type-C®
- Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe®Slot Q-Release, M.2 Q-Latch, ROG Reusable Cable Organizer, pre-mounted I/O shield, BIOS FlashBack™ button, and Clr CMOS button
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
Specifications
| CPU | Intel LGA1700 CPU |
| Chipset | Intel® Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 |
| Graphics | 1 x DisplayPort 1 x HDMI® port |
| Expansion Slots | 1 x PCIe 5.0/4.0/3.0 x16 slot 1 x PCIe 3.0 x16 slot (supports x4 mode)* 1 x PCIe 3.0 x1 slot |
| Storage | M.2_1 slot (Key M), type 2242/2260/2280/22110 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| Wireless & Bluetooth | Intel® Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.2 |
| USB | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
