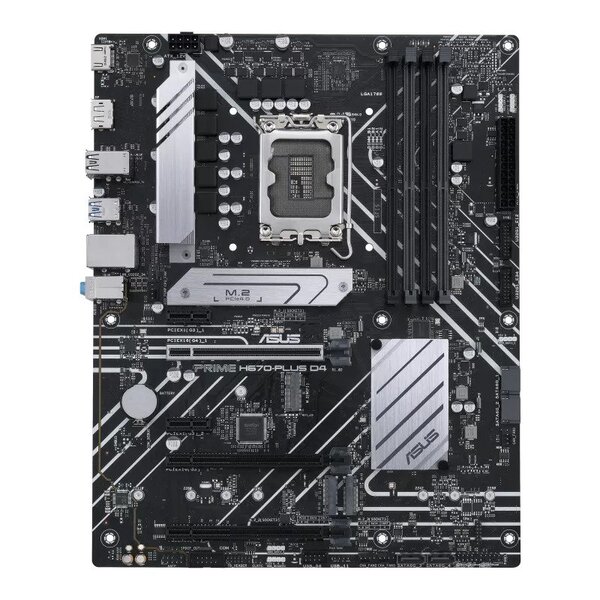

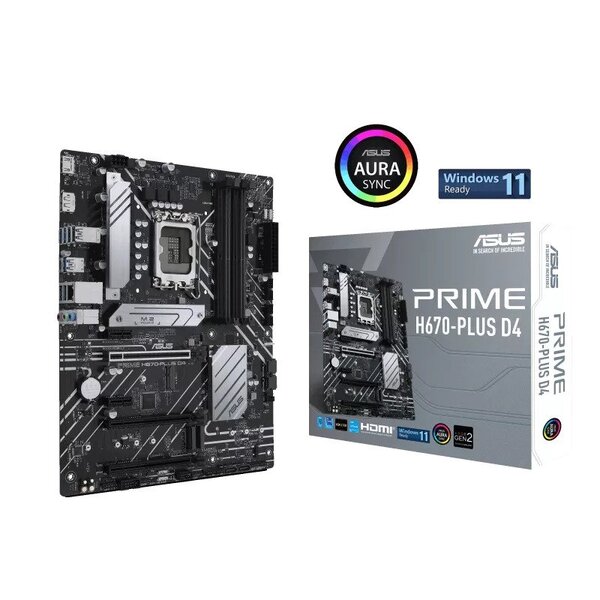

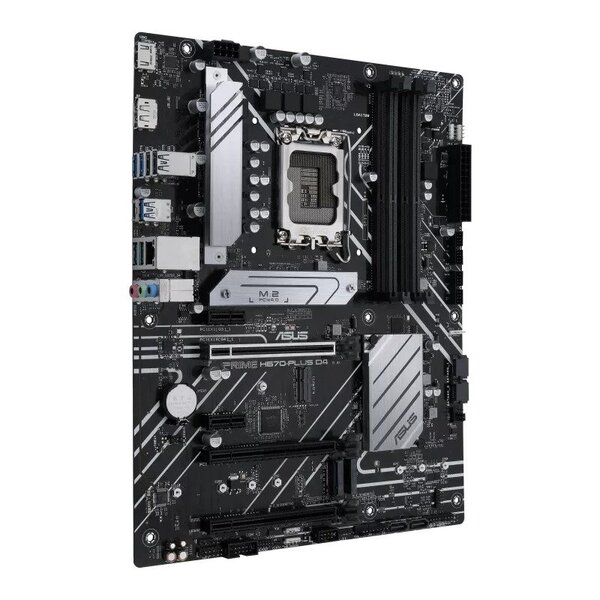

Asus Prime H670-PLUS D4 Motherboard
Features
Intel® H670 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2 Type-C®, Realtek 2.5Gb Ethernet, Thunderbolt™ 4 header support, DisplayPort, HDMI®, Aura Sync
- Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Asus Prime H670-PLUS D4
- Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet and Thunderbolt™ 4 support Asus Prime H670-PLUS D4
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Asus Prime H670-PLUS D4
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability Asus Prime H670-PLUS D4
Specifications
| CPU | Intel LGA1700 CPU supported by Asus TUF Gaming B660M-Plus Wifi D4 |
| Chipset | Intel® H670 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR4 |
| Graphics | 1 x DisplayPort 1 x HDMI® port |
| Expansion Slots | Intel® 12th Gen Processors* 1 x PCIe 4.0 x16 slot Intel® H670 Chipset** 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
| Storage | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® H670 Chipset** M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| Wi-Fi | M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
| USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |

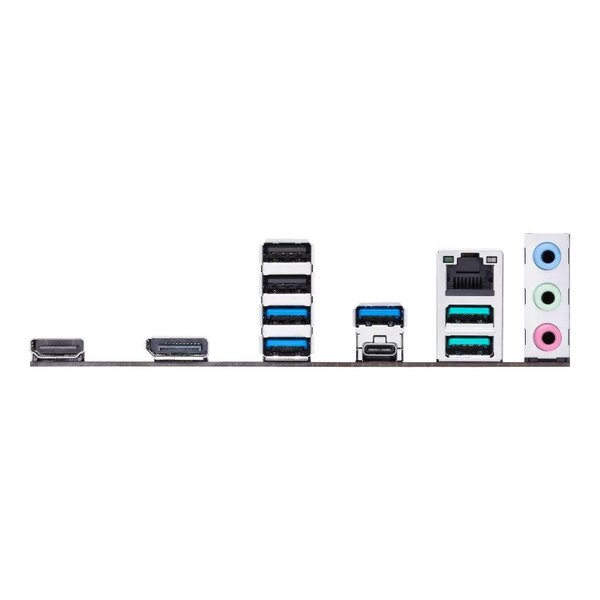

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX 30.5cm x 24.4cm |
| Warranty | 3 Years |
