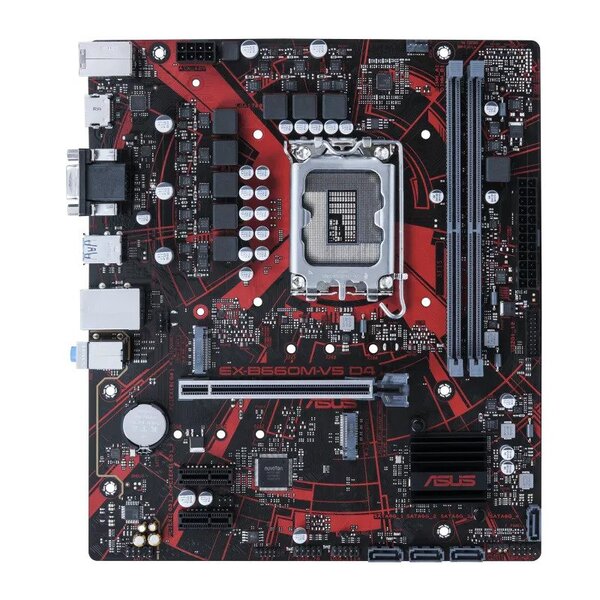

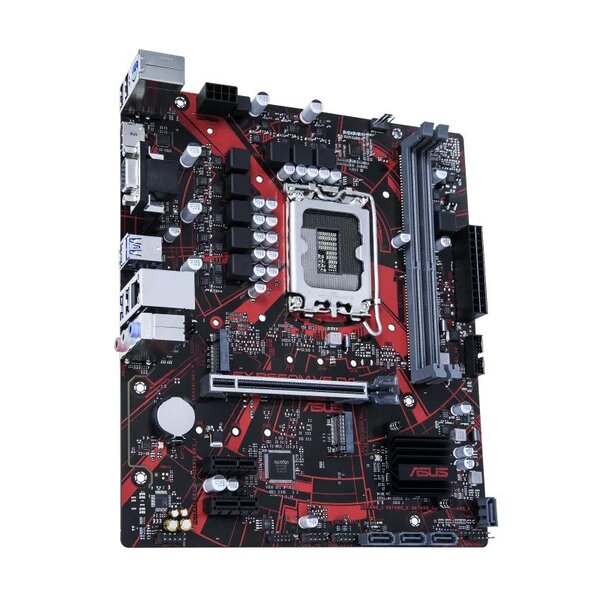

Asus EX-B660M-V5 D4 Motherboard
Features
Intel® B660 (LGA 1700) mATX motherboard with PCIe® 4.0, 8 power stages, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1, DDR4 5333 (OC), luminous anti-moisture coating and Lightning Boot
- Non-stop action: The best choice for iCafé, configure-to-order gaming systems, and quality-driven businesses Asus EX-B660M-V5 D4
- Non-stop durability: Unbeatable features including 8-pin ProCool connector, luminous anti-moisture coating, USBGuard, LANGuard, SafeSlot Core+, Stainless-steel back I/O and 5X Protection III Asus EX-B660M-V5 D4
- Non-stop gaming: DDR4 5333 (OC), two M.2 slots, PCIe® 4.0, ASUS Beyond VR ready and Epic audio Asus EX-B660M-V5 D4
- Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility-tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more Asus EX-B660M-V5 D4
Specifications
| CPU | Intel LGA1700 CPU supported by Asus TUF Gaming B660M-Plus Wifi D4 |
| Chipset | Intel® B660 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 |
| Graphics | 1 x D-Sub port 1 x HDMI® por |
| Expansion Slots | Intel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots |
| Storage | Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Wi-Fi | N/A |
| USB | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |

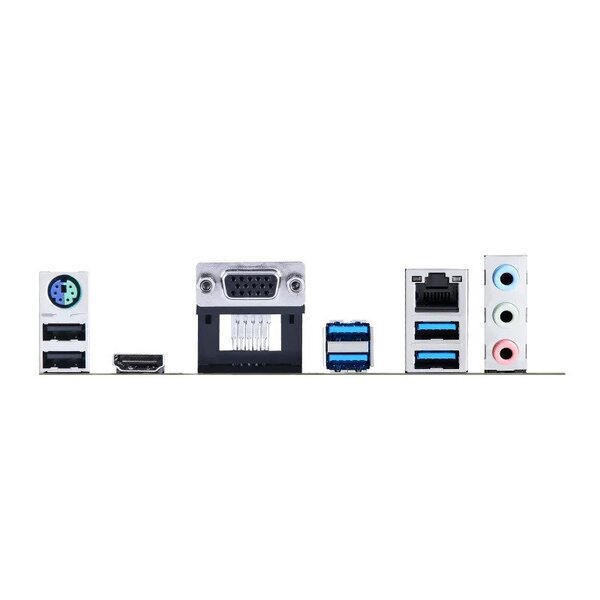

| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI® port 3 x Audio jacks 1 x Realtek 1Gb Ethernet port 1 x PS/2 Keyboard/Mouse combo port |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch(24.4cm x 21.1cm) |
| Warranty | 3 Years |
