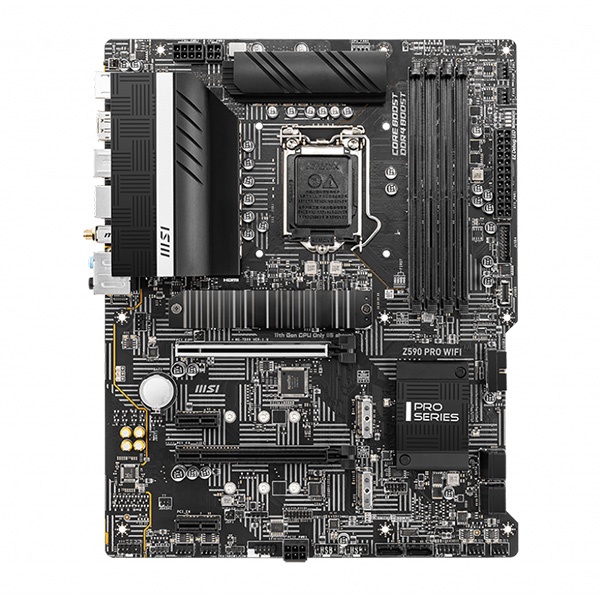

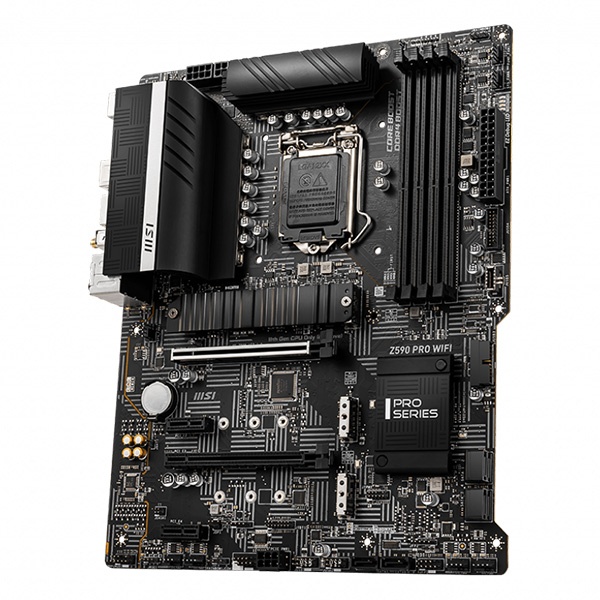

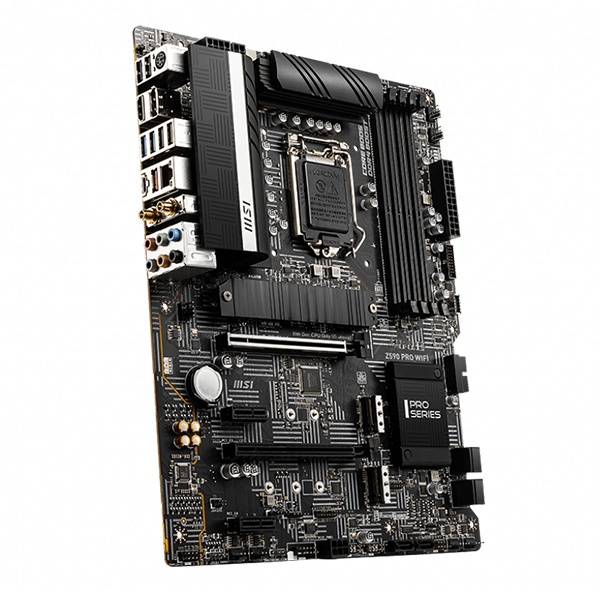

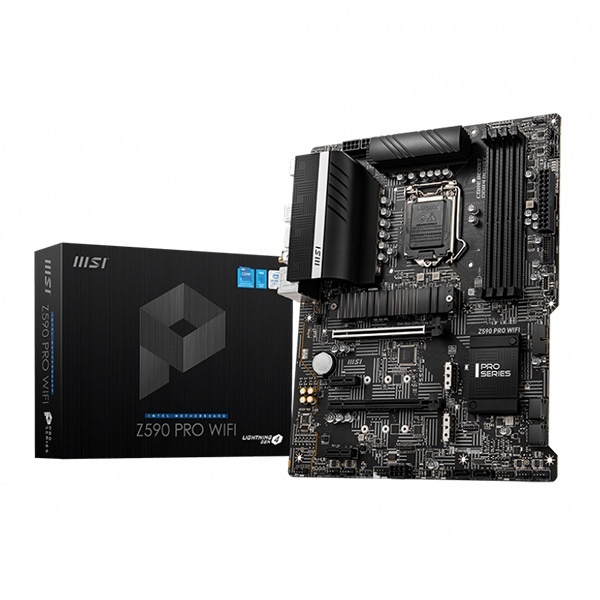

MSI Z590 Pro WiFi Motherboard

20,649 (Inclusive of GST)

Brand:

Out of stock

Email when back in stock

MSI Z590 Pro WiFi INTEL 11TH GENERATION Z590 ATX LGA 1200 Socket GEN 4 Support Gaming Motherboard

Overview :

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5333(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.

8+4 Pin power supply
By providing 8+4 pin connectors to ensure adequate power
supply to unleash ultimate multi-core CPU performance.

2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.

M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe
while preventing throttling, making them run faster.

Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.

DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.

EZ Debug LED
Easiest way to troubleshoot.

Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.

Specifications :

CPU (MAX SUPPORT)i9
SOCKET1200
CHIPSETIntel® Z590 Chipset
DDR4 MEMORY5333(OC) / 5200(OC) / 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/
4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/
3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNELDual
DIMM SLOTS4
MAX MEMORY (GB)128
PCI-E X162
PCI-E GENGen4
PCI-E X12
SATAIII6
M.2 SLOT3
RAID0/1/5/10
TPM (HEADER)1
LAN1x Intel® I225-V 2.5Gbps LAN
WIFI & BLUETOOTHIntel® Wi-Fi 6E AX210
USB 3.2 PORTS (FRONT)1(Gen 2, Type C), 4(Gen 1, Type A)

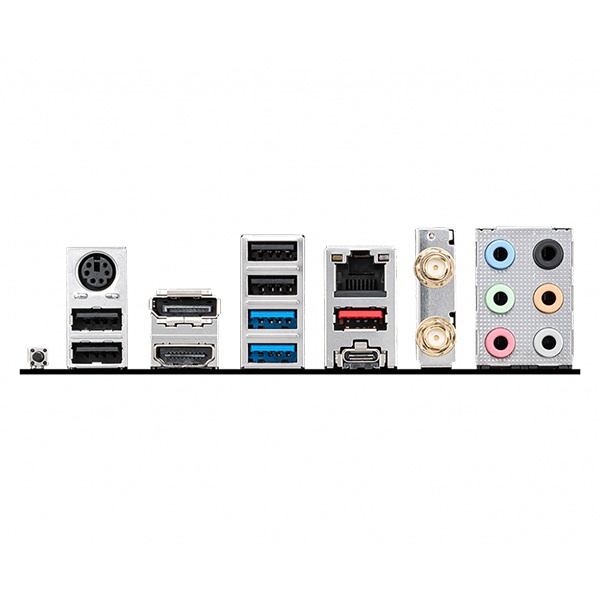

USB 3.2 PORTS (REAR)1(Gen 2×2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)
USB 2.0 PORTS (FRONT)4
USB 2.0 PORTS (REAR)4
SERIAL PORTS(FRONT)1
AUDIO PORTS (REAR)Realtek® ALC897 Codec
DISPLAYPORT1
HDMI1
DIRECTX12
FORM FACTORATX
CROSSFIREY
OPERATING SYSTEMSupport for Windows® 10 64-bit

Additional information

Weight5 kg
Dimensions25.4 × 0.1 × 35.5 mm
Brand

MSI

Socket

LGA1200

Chipset

Z590

Form Factor

ATX

Memory Slot

4 Slot

Platfrom

Intel

EAN/UPC

4719072801274

Memory Slot Type

DDR4
