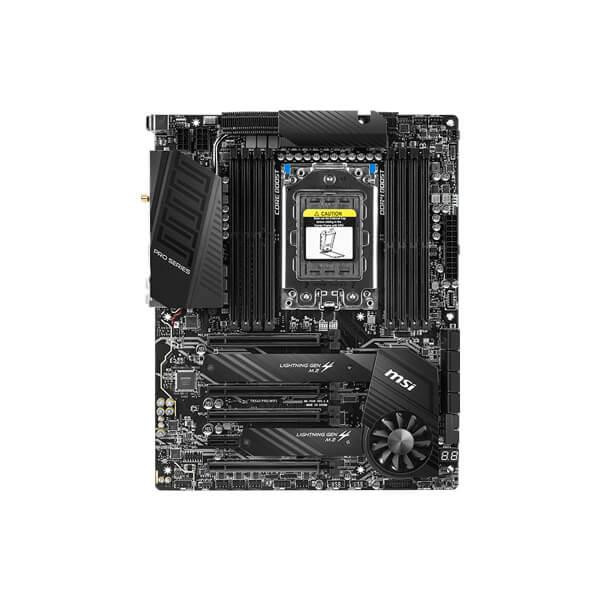

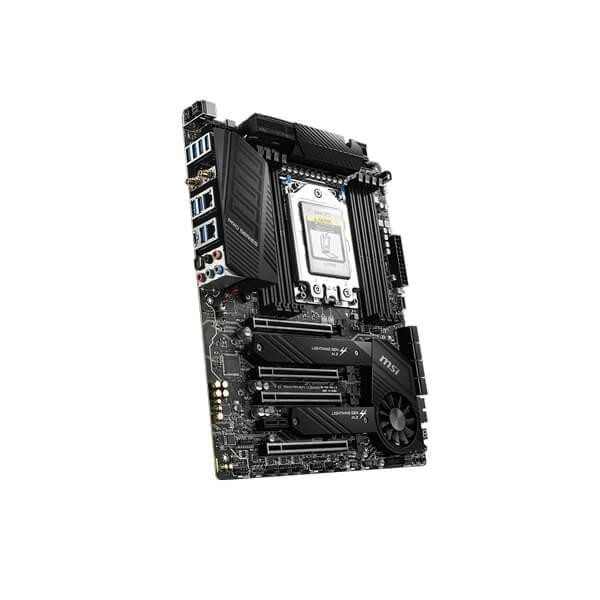

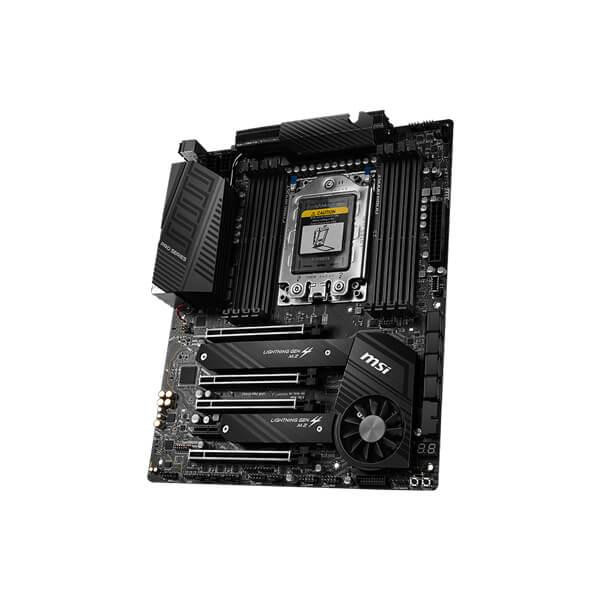

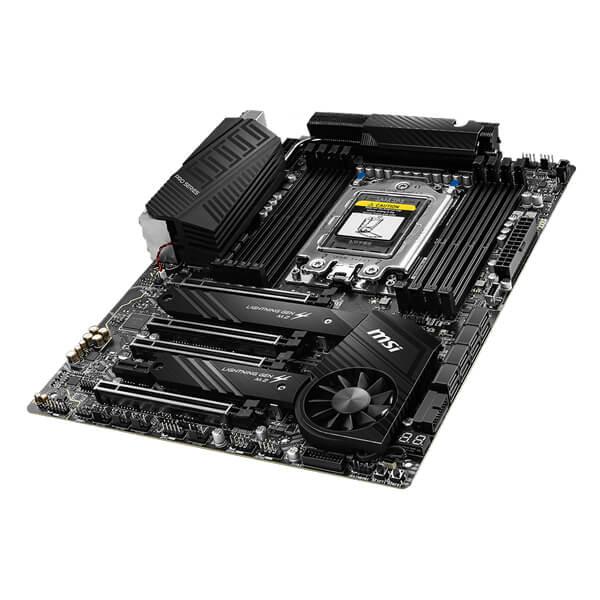

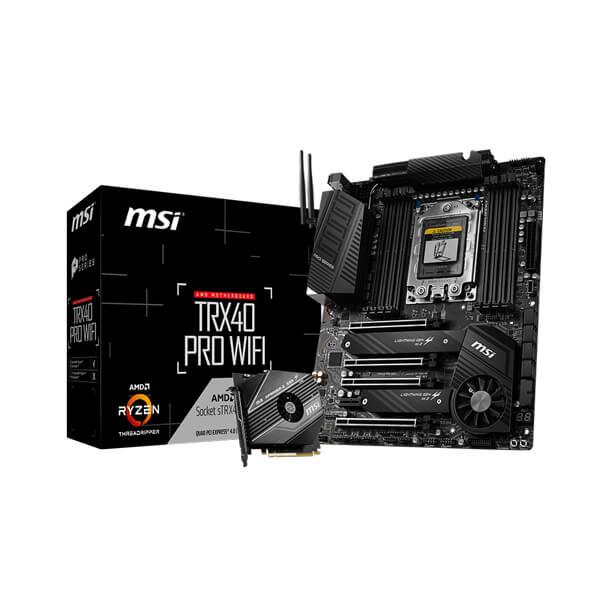

MSI TRX40 PRO WiFi AMD RYZEN Threadripper TRX40 ATX sTRX4 Socket GEN 4 Support workstation Motherboard
Overview :
- Supports 3rd Gen AMD® Ryzen™ Threadripper™ Desktop Processors for Socket sTRX4
- Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz
- Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
- Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12+3 digital power phases, dual 8 pin CPU power connectors, DDR4 Boost
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
- Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs.
- M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
- Dual LAN onboard and latest Wi-Fi 6 solution: Premium network solution for professional and multimedia use, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering a secure, stable and fast network connection.
- Audio Boost 4: Reward your ears with studio grade sound quality.
- Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™
Specifications :
CPU (MAX SUPPORT) | 3rd Gen Ryzen® Threadripper Series Processors |
SOCKET | sTRX4 |
CHIPSET | AMD® TRX40 Chipset |
DDR4 MEMORY | 2133/2400/2666/3200MHz by JEDEC; 2666/2800/2933/3000/3200/3466/3600/3733/3866/4000/4266/4400/4600/4666 by A-XMP OC MODE |
MEMORY CHANNEL | Quad |
DIMM SLOTS | 8 |
MAX MEMORY (GB) | 256 |
PCI-E X16 | 4 |
PCI-E GEN | Gen4 |
PCI-E X1 | 1 |
SATAIII | 8 |
M.2 SLOT | 2 |
RAID | 0/1/10 |
LAN | 2 x Intel® I211AT |
USB 3.2 PORTS (FRONT) | 1(Gen2, Type C), 4(Gen1, Type A) |
USB 3.2 PORTS (REAR) | 1(Gen2x2, Type C), 3(Gen2, Type A), 4(Gen1, Type A) |
USB 2.0 PORTS (FRONT) | 4 |
AUDIO PORTS (REAR) | Realtek® ALC1220 Codec |
FORM FACTOR | ATX |
SLI | Y |
3-WAY SLI | Y |
CROSSFIRE | Y |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
