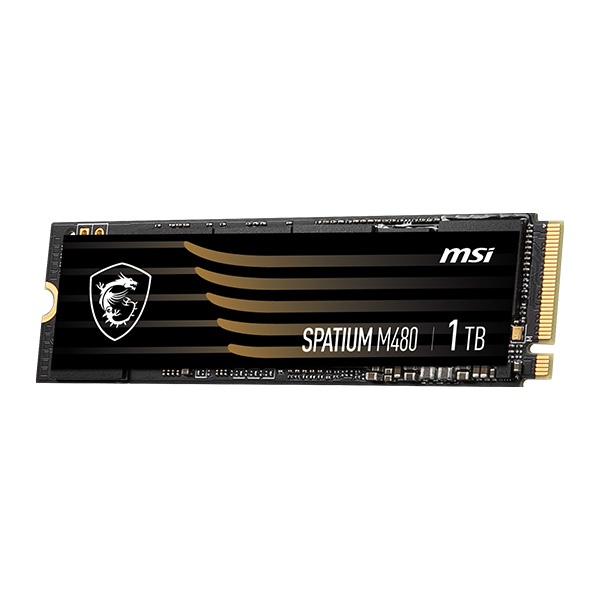

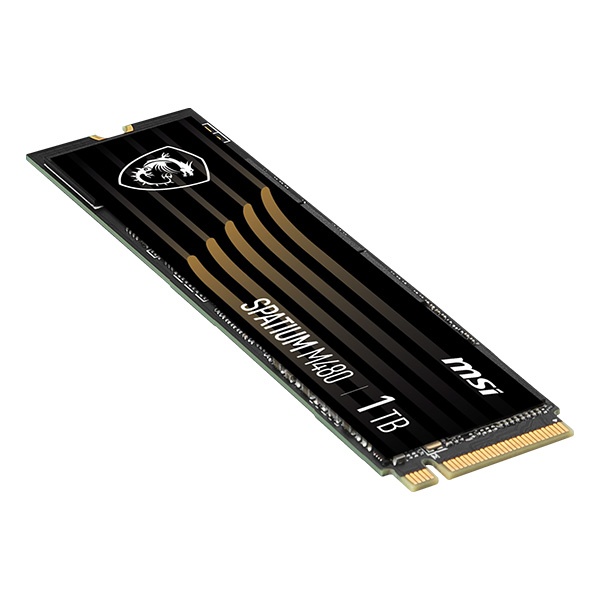

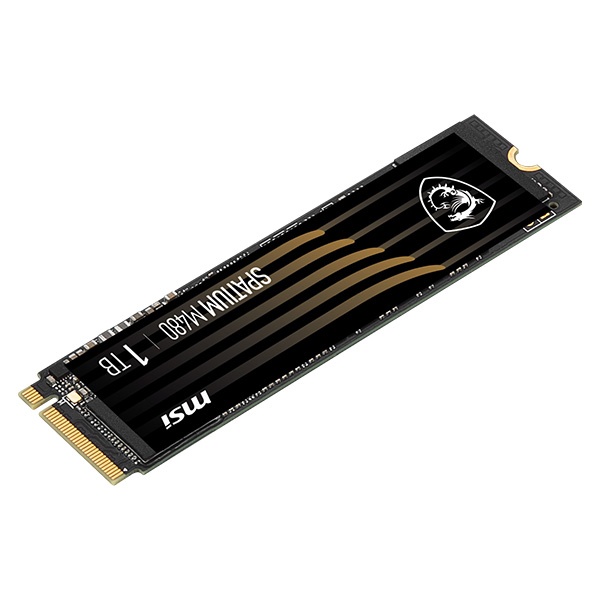

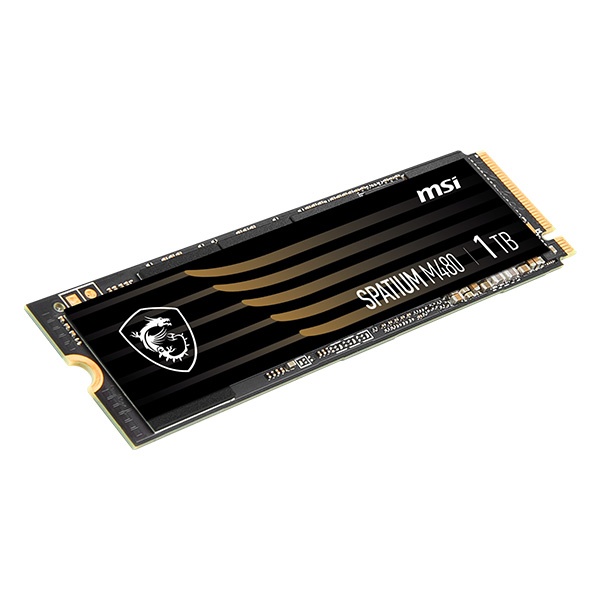

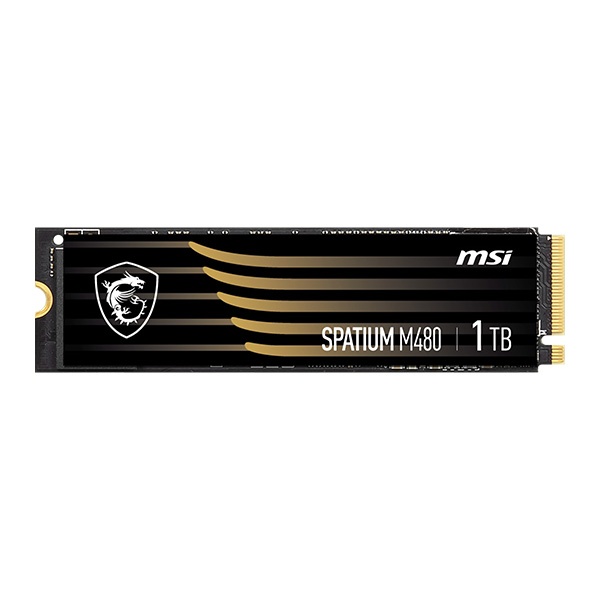

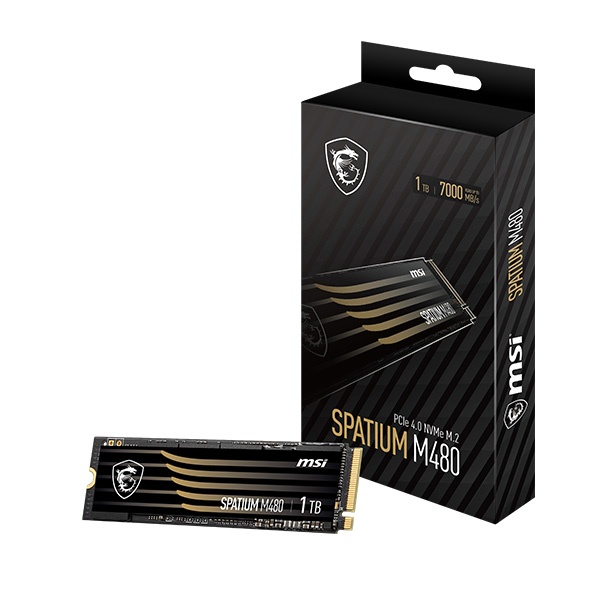

MSI Spatium M480 1TB M.2 NVMe Gen 4 PCIe 4.0 Internal SSD with PHISON E18 controller and SEQUENTIAL READ UP TO 7000 MB/S and SEQUENTIAL WRITE UP TO 5500 MB/S
Overview :
Blazing Speeds
Optimized for the PCIe Gen4 interface.
3D NAND Flash
3D NAND Flash technology brings dense storage in a compact
design and allows storage capacities up to 2TB.
Security & Reliability
Built-in data security and error-correction capabilities extend the
longevity of the NAND flash storage.
5 Years Warranty
MSI stands by the quality and reliability of their SSD’s with a 5
year limited warranty.
Features :
- PCIe Gen4x4 interface and complies with the NVMe 1.4 standard
- Sequential Read speeds up to 7000MB/s and Write speeds up to 6800MB/s
- Up to 1400 TBW
- Built-in data security and error-correction capabilities
- 500GB to 2TB capacities in M.2 2280 form factor
- Suitable for both desktop and notebook
- 5-Year Warranty
Specifications :
| MODEL NAME | SPATIUM M480 PCIe 4.0 NVMe M.2 |
| CAPACITY | 1TB |
| CONTROLLER | PHISON E18 |
| FLASH MEMORY | 3D NAND |
| DRAM CACHE | 1GB DDR4 |
| FORM FACTOR | M.2 2280 |
| INTERFACE | PCIe Gen4x4, NVMe 1.4 |
| COMPATIBILITY | PCIe Gen4 / Gen3 / Gen2 / Gen1 |
| DIMENSIONS | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) |
| SEQUENTIAL READ UP TO (MB/S) | 7000 |
| SEQUENTIAL WRITE UP TO (MB/S) | 5500 |
| RANDOM READ 4KB UP TO (IOPS) | 350,000 |
| RANDOM WRITE 4KB UP TO (IOPS) | 700,000 |
| MAXIMUM OPERATING POWER (W) | 6.6 |
| IDLE POWER PS3 (MW) | 14 |
| LOW POWER L1.2 (MW) | 3 |
| OPERATING TEMPERATURES | 0°C – 70°C |
| STORAGE TEMPERATURES | -40°C – 85°C |
| TERABYTES WRITTEN (TBW) | 700 |
| MEAN TIME BETWEEN FAILURE (MTBF) | Up to 1,600,000 Hours |
| LIMITED WARRANTY | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. |
| ADVANCED FEATURES | TRIM (Performance Optimization, OS support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security) |
