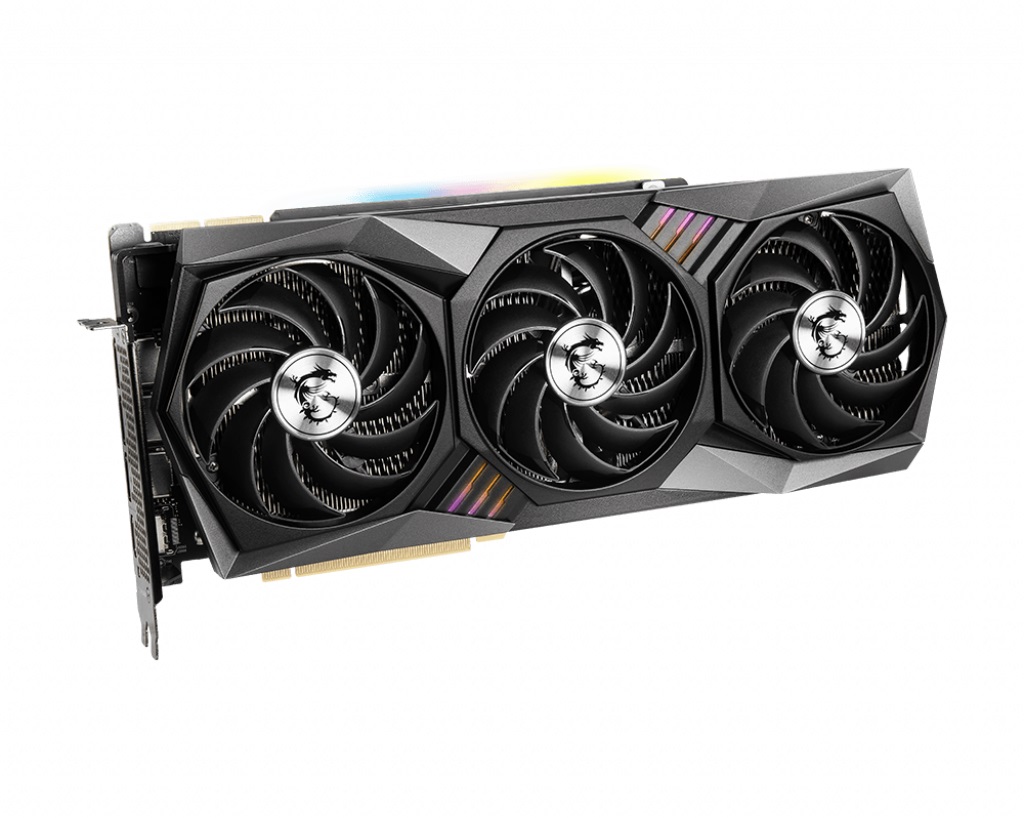

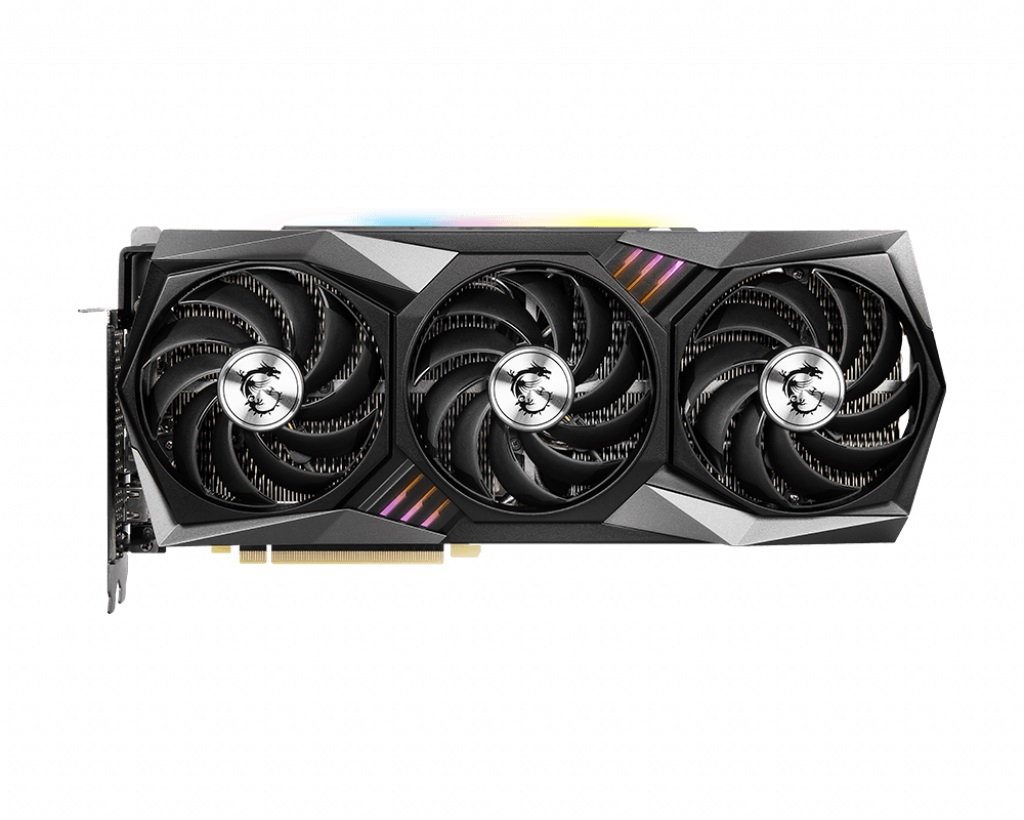

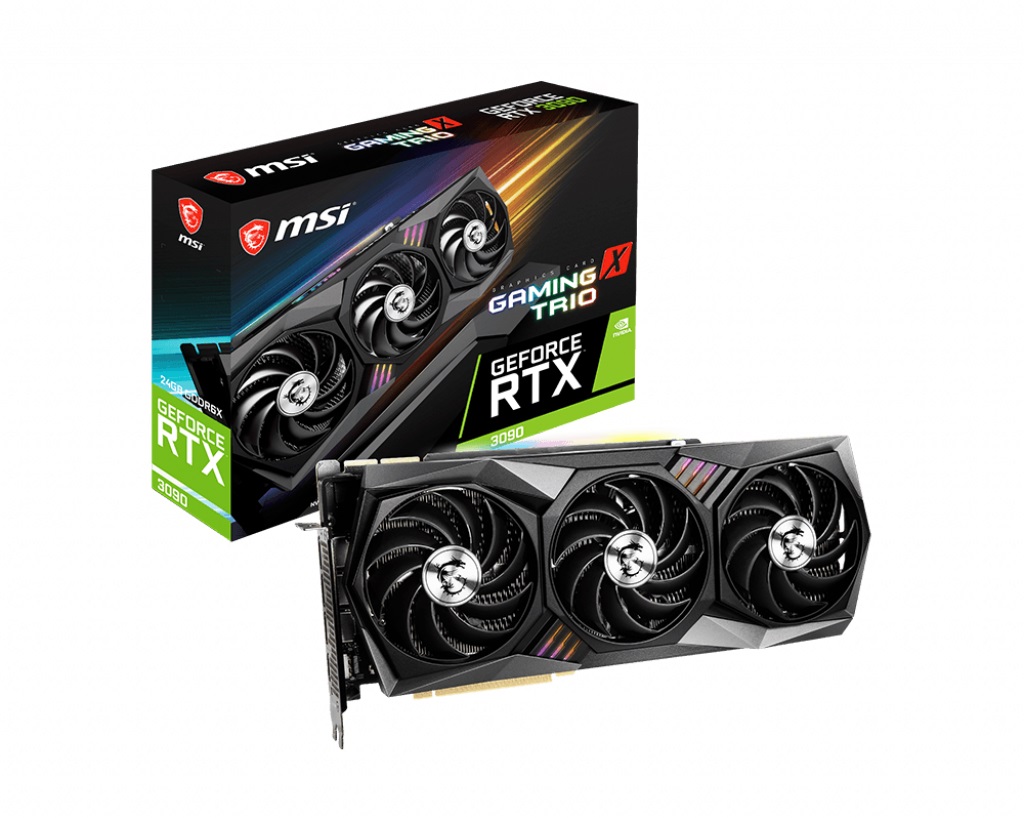

MSI RTX 3090 Gaming X Trio 24GB GDDR6X 384-BIT GAMING GRAPHICS CARD
Features :
The MSI RTX 3090 Gaming X Trio 24GB is a big ferocious GPU (BFGPU) with TITAN class performance. It’s powered by Ampere—NVIDIA’s 2nd gen RTX architecture—doubling down on ray tracing and AI performance with enhanced RT Cores, Tensor Cores, and new streaming multiprocessors. Plus, it features a staggering 24 GB of G6X memory, all to deliver the ultimate gaming experience.
Boost Clock / Memory Speed
- 1785 MHz / 19.5 Gbps
- 24GB GDDR6X

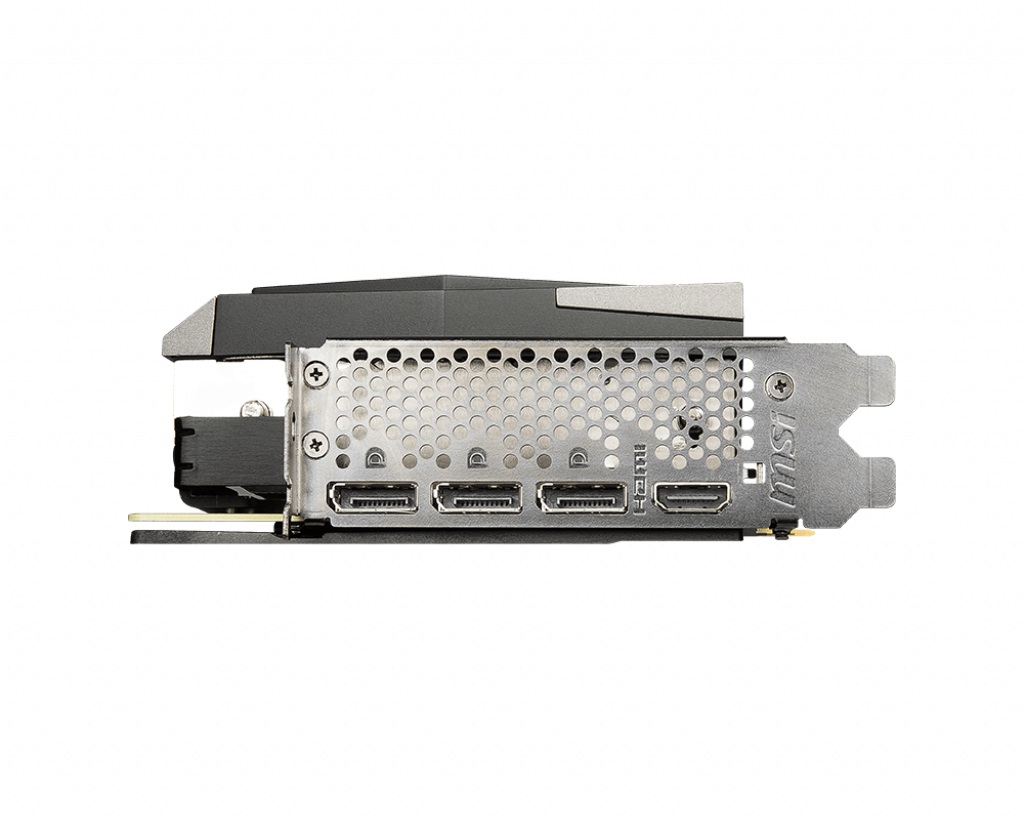

- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
TRI FROZR 2 Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
- Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Overview :
The GAMING You Know & Trust
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
Light ‘Em Up
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
We Keep It Cool and Quiet
The TRI FROZR 2 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
Teamwork Makes the Dream Work
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the updated TRI FROZR 2 cooling system.
Totally Cool Core Pipes
Core Pipes are precision-machined for maximum contact over the MSI RTX 3090 Gaming X Trio 24GB GPU and spread the heat along the full length of the heatsink for optimal cooling.
Shhhh…Silencing Heatsink Design
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
Cool 360 Degree

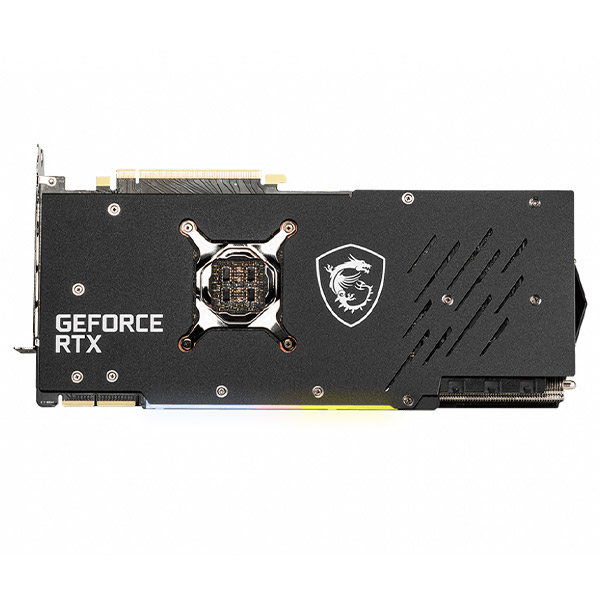

Leave no space unchecked. Heatpipes beneath the sturdy matte-finish metal backplate provide additional cooling for the memory modules on the rear of the PCB.
That’s How We Roll
Extremely durable double-ball bearings spin your TORX FANs for years of intense and lengthy gaming sessions with zero noise.
Stay Frosty
MSI RTX 3090 Gaming X Trio 24GB has an abundance of thermal pads provide additional heat dissipation for board components.
Chillingly Silent
Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
Tough Enough to Back You Up!
MSI RTX 3090 Gaming X Trio 24GB has been crafted to serve you well during intense gameplay. MSI RTX 3090 Gaming X Trio 24GBlegendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Forged from Enhanced Materials
MSI RTX 3090 Gaming X Trio 24GB has an enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
Bend the Rules, not the Card
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
Your Support Character
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
Specification :
MODEL NAME | MSI RTX 3090 Gaming X Trio 24GB |
GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3090 |
INTERFACE | PCI Express® Gen 4 |
CUDA® CORES | 10496 Units |
CORE CLOCKS | Boost:1785 MHz |
MEMORY SPEED | 19.5 Gbps |
MEMORY | 24GB GDDR6X |
MEMORY BUS | 384-bit |
OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 370W |
POWER CONNECTORS | 8-pin x 3 |
RECOMMENDED PSU | 750 W |
CARD DIMENSION (MM) | 323 x 140 x 56mm |
WEIGHT (CARD / PACKAGE) | 1565 g / 2370 g |
DIRECTX VERSION SUPPORT | 12 API |
OPENGL VERSION SUPPORT | 4.6 |
NVLINK SUPPORT | Y |
MULTI-GPU TECHNOLOGY | Y |
MAXIMUM DISPLAYS | 4 |
VR READY | Y |
G-SYNC® TECHNOLOGY | Y |
ADAPTIVE VERTICAL SYNC | Y |
DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
WARRANTY | 3 Years |
