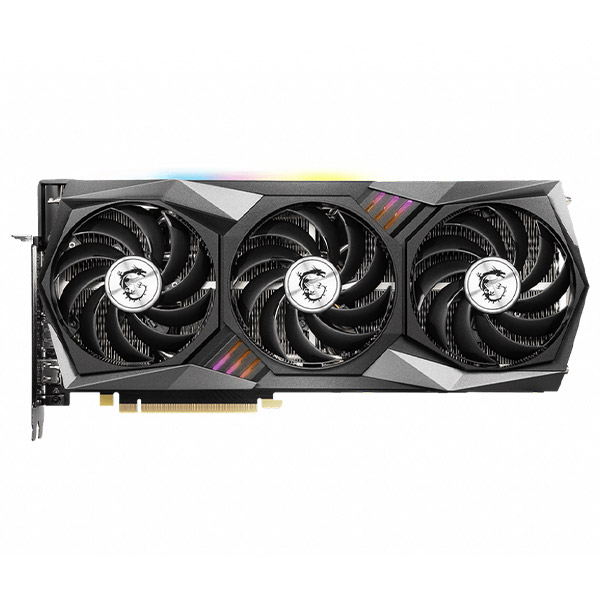

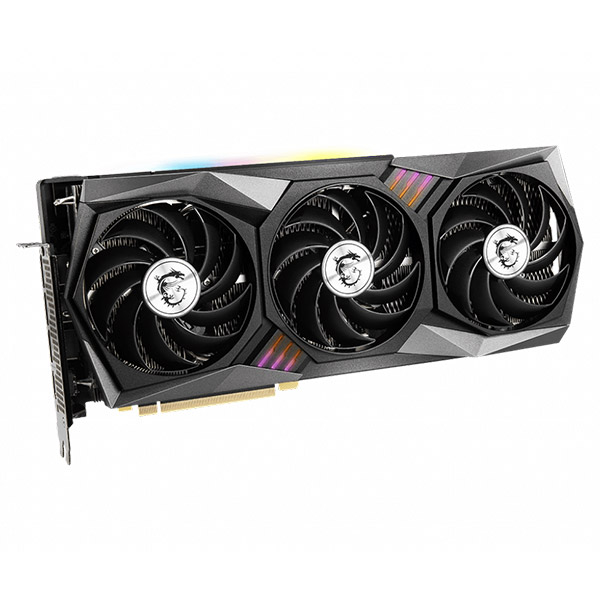

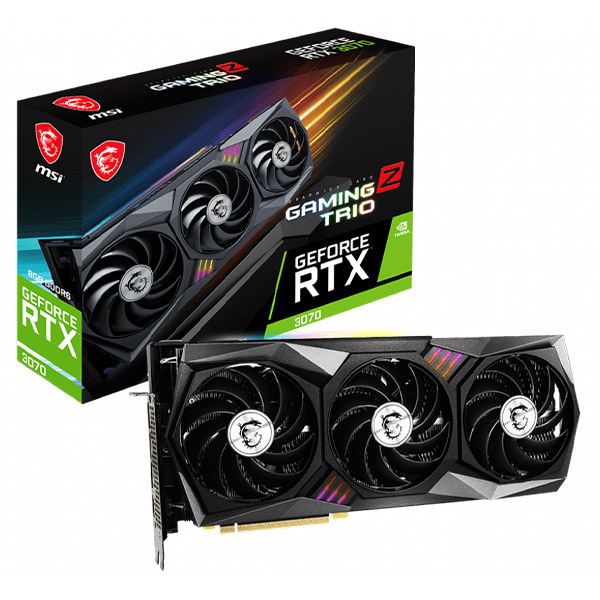

MSI RTX 3070 Gaming Z Trio 8GB LHR GDDR6 256-Bit Gaming Graphics Card
The MSI RTX 3070 Gaming Z Trio 8GB LHR is powered by Ampere—NVIDIA’s 2nd gen RTX architecture. Built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory, it gives you the power you need to rip through the most demanding games.
- This MSI RTX 3070 Gaming Z Trio 8GB LHR graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.).
Boost Clock / Memory Speed
- 1845 MHz / 14 Gbps
- 8GB GDDR6

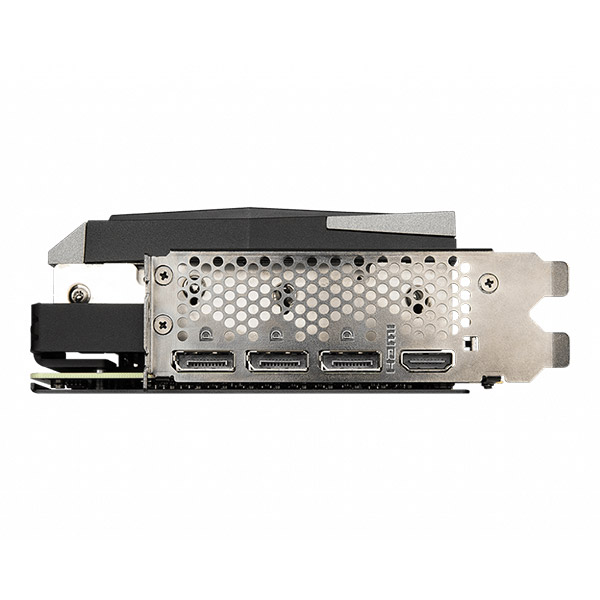

- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports [email protected] as specified in HDMI 2.1)
TRI FROZR 2 Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
- Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust.
Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT ‘EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TRI FROZR 2 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TRI FROZR 2
TEAMWORK MAKES THE DREAM WORK
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the updated TRI FROZR 2 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the MSI RTX 3070 Gaming Z Trio 8GB LHR GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH…SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
DON’T SWEAT THE DETAILS
STRONG & COOL

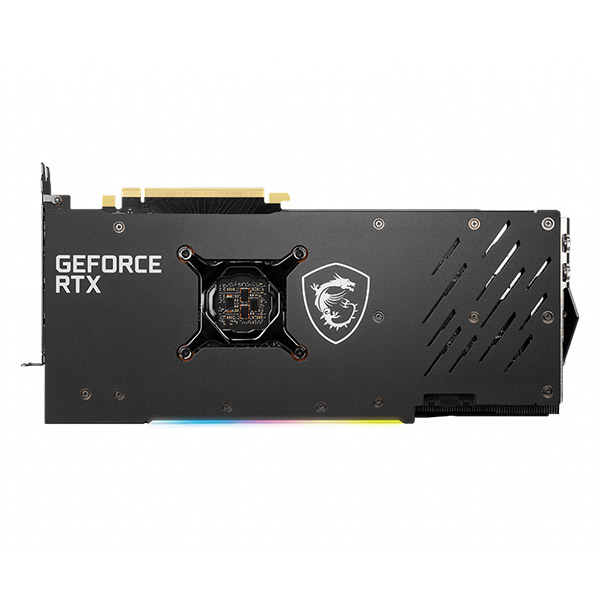

A sturdy brushed aluminum Backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.
An abundance of thermal pads provide additional heat dissipation for board components.
Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
TOUGH ENOUGH TO BACK YOU UP!
MSI RTX 3070 Gaming Z Trio 8GB LHR has been crafted to serve you well during intense gameplay. MSI RTX 3070 Gaming Z Trio 8GB LHR legendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
BEND THE RULES, NOT THE CARD
An enclosed rigid metal anti-bending plate provides additional strength to ensure structural integrity with the enlarged heatsink.

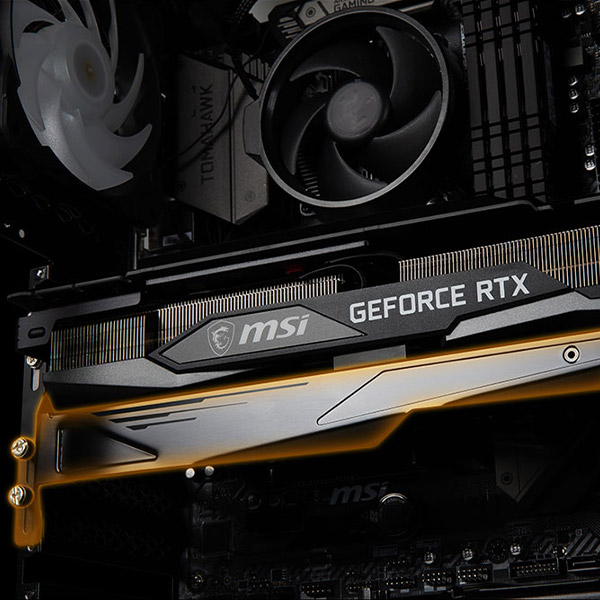

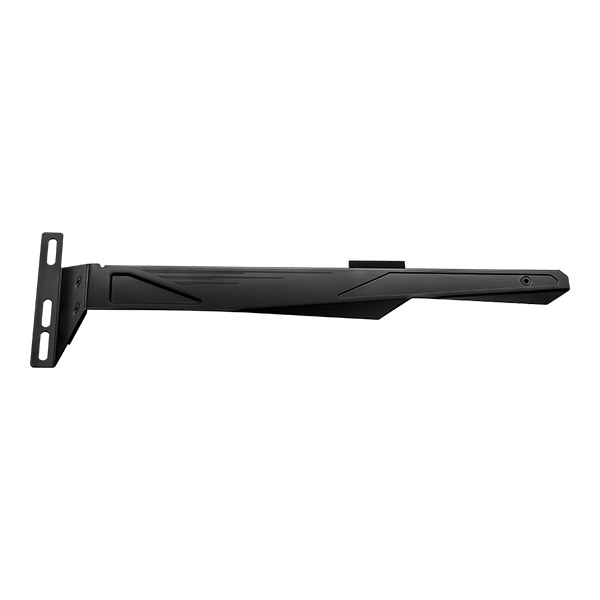

YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
|MODEL NAME||MSI RTX 3070 Gaming Z Trio 8GB LHR|
|GRAPHICS PROCESSING UNIT||NVIDIA® GeForce RTX™ 3070|
|INTERFACE||PCI Express® Gen 4|
|CUDA® CORES||5888 Units|
|CORE CLOCKS||Boost: 1845 MHz|
|MEMORY SPEED||14 Gbps|
|OUTPUT||DisplayPort x 3 (v1.4) / HDMI x 1 (Supports [email protected] as specified in HDMI 2.1)|
|POWER CONNECTORS||8-pin x 2|
|CARD DIMENSION (MM)||323 x 140 x 56mm|
|WEIGHT (CARD / PACKAGE)||1458 g / 2286 g|
|DIRECTX VERSION SUPPORT||12 API|
|OPENGL VERSION SUPPORT||4.6|
|ADAPTIVE VERTICAL SYNC||Y|
|DIGITAL MAXIMUM RESOLUTION||7680×4320|
