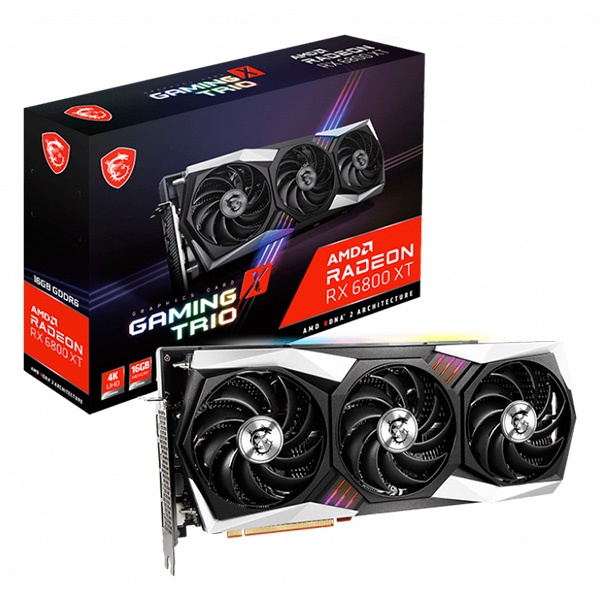

MSI Radeon RX 6800 XT GAMING X TRIO 16GB GDDR6 256-BIT GAMING GRAPHICS CARD
Overview :
Get the ultimate game changer. AMD Radeon™ RX 6800 XT graphics card features breakthrough AMD RDNA™ 2 architecture. Now you can game in 4K with ultra-smooth frame rates and at max settings. Never again compromise on resolution to enjoy fluid, high-refresh-rate gaming. Experience a new level of immersion with the AMD Radeon™ RX6800XT graphics card.
Boost Clock / Memory Speed
- Up to 2285 MHz / 16 Gbps
- 16GB GDDR6
- DisplayPort x 3
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

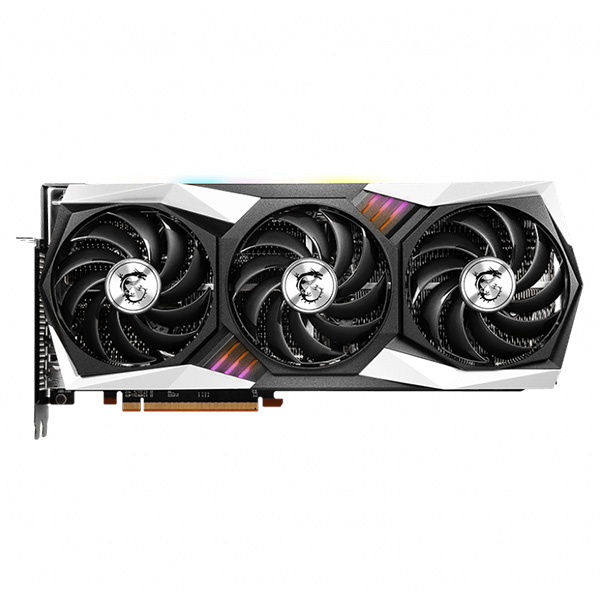

TRI FROZR 2 Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
- Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
Dragon Center
- MSI’s exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
Specification :
| MODEL NAME | Radeon™ RX 6800 XT GAMING X TRIO 16G |
| GRAPHICS PROCESSING UNIT | Radeon™ RX 6800 XT |
| INTERFACE | PCI Express® Gen 4 |
| CORES | 4608 Units |
| CORE CLOCKS | Boost: Up to 2285 MHz / Game: Up to 2045 MHz |
| MEMORY SPEED | 16 Gbps |
| MEMORY | 16GB GDDR6 |
| MEMORY BUS | 256-bit |

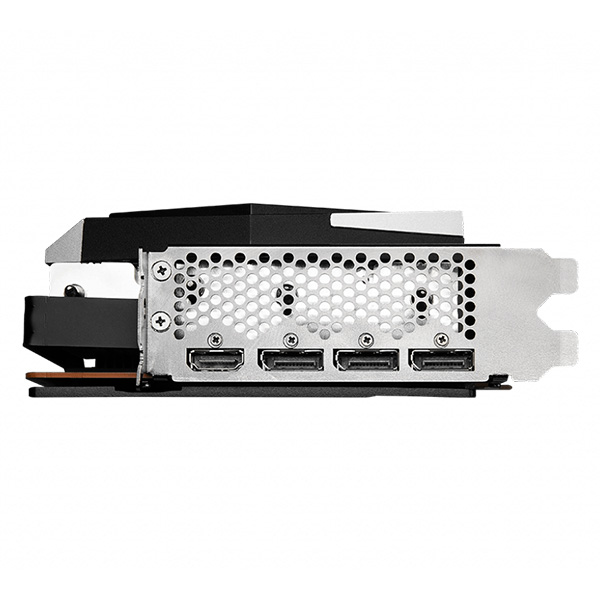

| OUTPUT | DisplayPort x 3 (v1.4) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 300W |
| POWER CONNECTORS | 8-pin x2 |
| RECOMMENDED PSU | 750W |
| CARD DIMENSION (MM) | 324 x 141 x 55 mm |
| WEIGHT (CARD / PACKAGE) | 1551 g / 2356 g |
| DIRECTX VERSION SUPPORT | 12 |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| MULTI-GPU TECHNOLOGY | Crossfire™, 2-Way (Bridgeless)(DX12) |
| AFTERBURNER OC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
