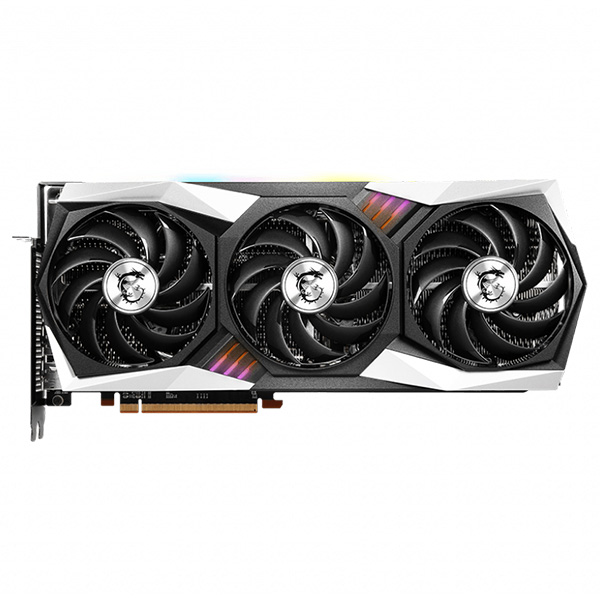

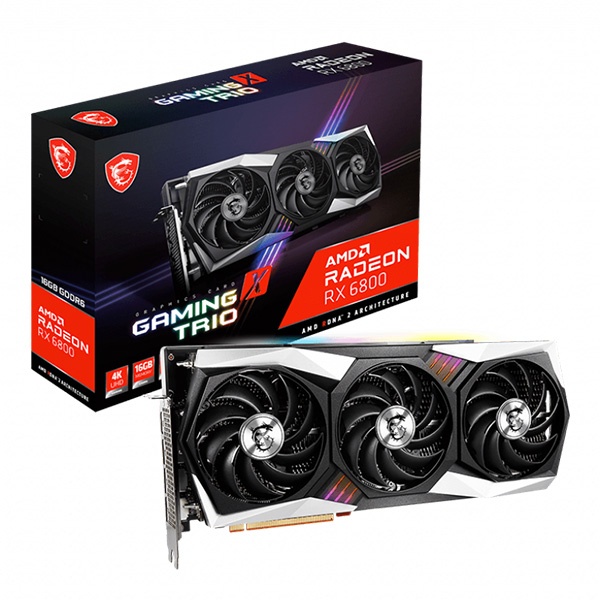

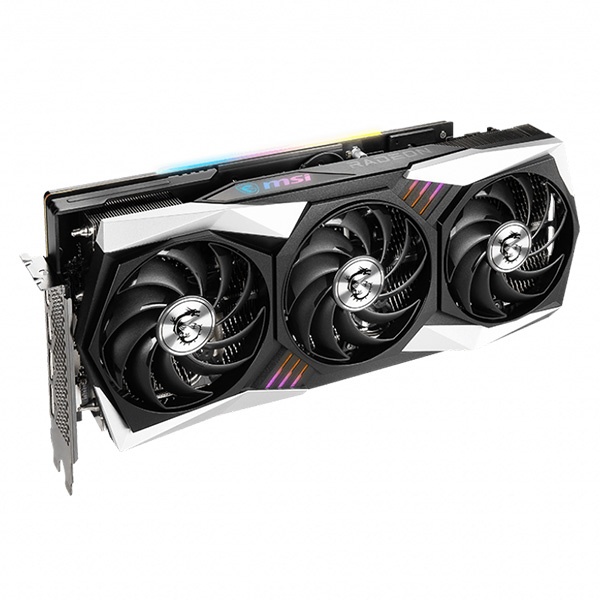

MSI Radeon RX 6800 Gaming X Trio 16GB GDDR6 256-BIT GAMING GRAPHICS CARD
Features :
Get the ultimate game changer. MSI Radeon RX 6800 Gaming X Trio 16GB graphics card features breakthrough AMD RDNA™ 2 architecture. Now you can game in 4K with ultra-smooth frame rates and at max settings.
Never again compromise on resolution to enjoy fluid, high-refresh-rate gaming. Experience a new level of immersion with the MSI Radeon RX 6800 Gaming X Trio 16GB graphics card.
Boost Clock / Memory Speed
- Up to 2155 MHz / 16 Gbps
- 16GB GDDR6
- DisplayPort x 3
HDMI x 1 (Supports [email protected] as specified in HDMI 2.1)
TRI FROZR 2 Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
- Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Overview :
The GAMING You Know & Trust
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust.
Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
Light ‘Em Up
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
We Keep It Cool and Quiet
The TRI FROZR 2 thermal system in MSI Radeon RX 6800 Gaming X Trio 16GB has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
Teamwork Makes the Dream Work
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TRI FROZR 2 cooling system.
Totally Cool Core Pipes
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
Shhhh…Silencing Heatsink Design
Stay stealthy with Airflow Control in MSI Radeon RX 6800 Gaming X Trio 16GB that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
Tough Enough to Back You Up!
GAMING has been crafted to serve you well during intense gameplay. MSI Radeon RX 6800 Gaming X Trio 16GB legendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional layers of protection against electrical damage.
Bend the Rules, not the Card

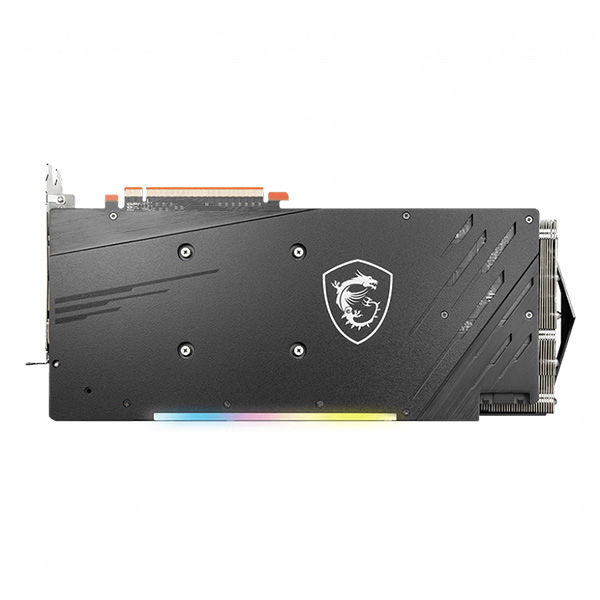

Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
Your Support Character
A bundled support bracket for MSI Radeon RX 6800 Gaming X Trio 16GB can be attached to your PC case for additional graphics card reinforcement.
Experience Photorealistic Games
DirectX Raytracing (DXR) adds a new level of graphics realism to games through effects like reflections, shadows, and global illumination at real-time frame rates on MSI Radeon RX 6800 Gaming X Trio 16GB graphics,
thanks to AMD RDNA™ 2 architecture support for hardware-accelerated raytracing.
Specification :
MODEL NAME | Radeon™ RX 6800 GAMING X TRIO 16G |
GRAPHICS PROCESSING UNIT | Radeon™ RX 6800 |
INTERFACE | PCI Express® Gen 4 |
CORES | 3840 Units |
CORE CLOCKS | Boost: Up to 2155 MHz / Game: Up to 1925 MHz |
MEMORY SPEED | 16 Gbps |
MEMORY | 16GB GDDR6 |
MEMORY BUS | 256-bit |

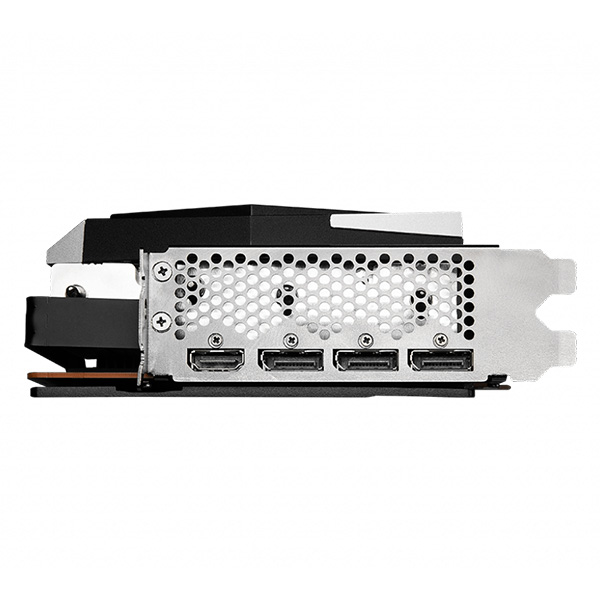

OUTPUT | DisplayPort x 3 (v1.4) HDMI x 1 (Supports [email protected] as specified in HDMI 2.1) |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 250W |
POWER CONNECTORS | 8-pin x2 |
RECOMMENDED PSU | 650W |
CARD DIMENSION (MM) | 324 x 141 x 55 mm |
WEIGHT (CARD / PACKAGE) | 1521g / 2326g |
DIRECTX VERSION SUPPORT | 12 |
OPENGL VERSION SUPPORT | 4.6 |
MAXIMUM DISPLAYS | 4 |
VR READY | Y |
MULTI-GPU TECHNOLOGY | Crossfire™, 2-Way (Bridgeless)(DX12) |
AFTERBURNER OC | Y |
DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
WARRANTY | 3 Years |
