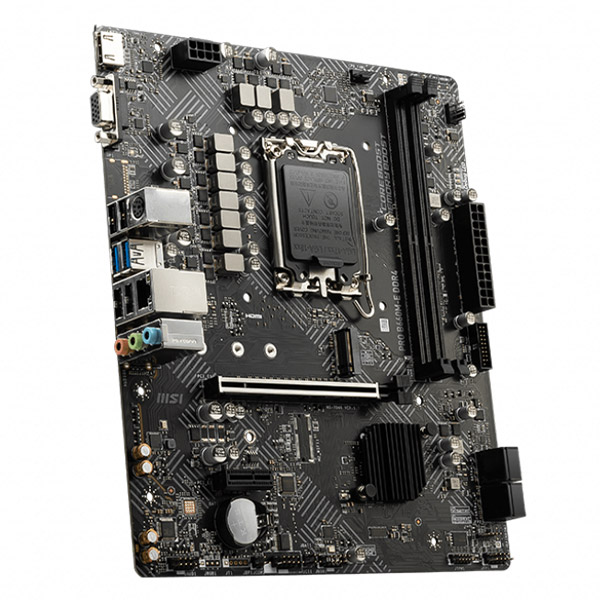

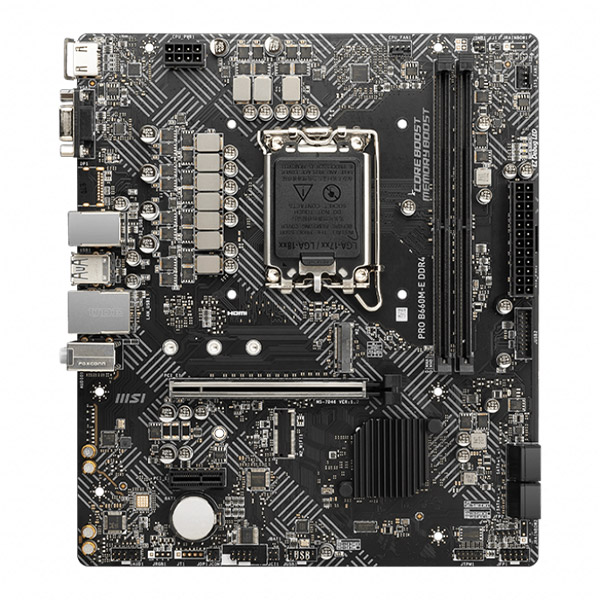

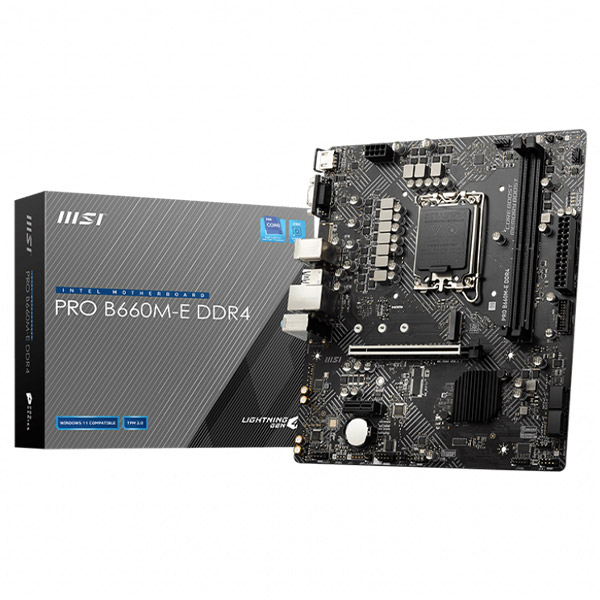

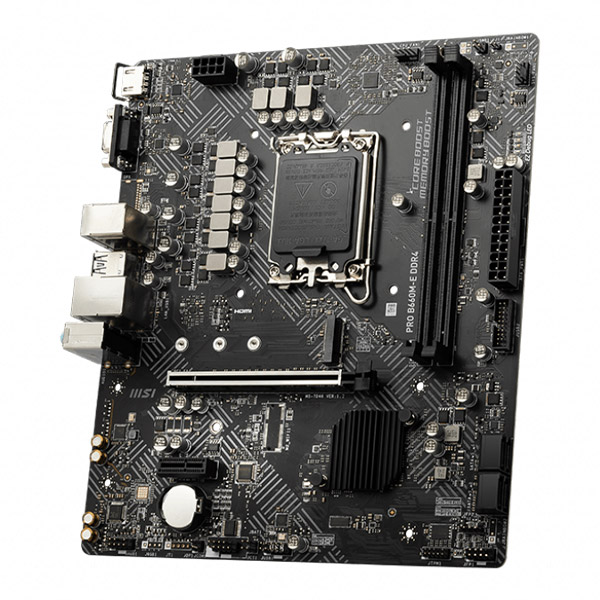

MSI Pro B660M-E DDR4 INTEL 12TH GENERATION B660 ATX LGA 1700 Socket DDR4 RAM and PCIE 4 Support Gaming Motherboard
Features :
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4600+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance in MSI Pro B660M-E DDR4
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Overview :
Lightning Gen4 Solution
The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed in MSI Pro B660M-E DDR4.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Memory Boost
MSI Pro B660M-E DDR4 has advanced technology to deliver pure data signals for the best performance, stability and compatibility.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1700 |
| CHIPSET | Intel® B660 Chipset |
| DDR4 MEMORY | 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 |
| PCI-E X1 | 1 |
| SATAIII | 4 |
| TPM (HEADER) | 1 |
| LAN | 1x Intel® I219V Gigabit LAN controller |
| USB 3.2 PORTS (FRONT) | 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 2 |
| USB 2.0 PORTS (REAR) | 4 |
| AUDIO PORTS (REAR) | Realtek® ALC892/ ALC897 Codec |
| VGA | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | Mirco-ATX |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
