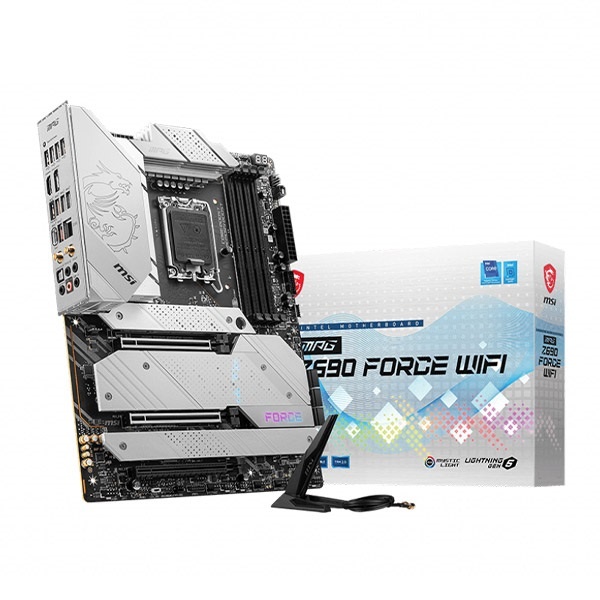

MSI MPG Z690 Force WiFi INTEL 12TH GENERATION Z690 ATX LGA 1700 Socket DDR5 RAM and PCIE 5 Support Gaming Motherboard
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6666+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience in MSI MPG Z690 Force WiFi
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material

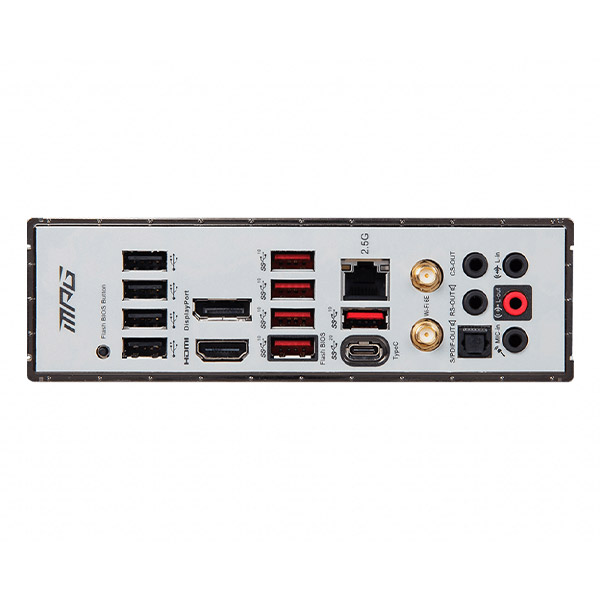

- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Premium Thermal Design
Heavy plated mosfet heatsink with heat-pipe / high quality 7W/mK
mosfet thermal pads / extra choke thermal pads / onboard M.2
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps in MSI MPG Z690 Force WiFi
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
With premium layout and fully digital power design to support
more cores and provide better performance.
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience
2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and
performance reliability in MSI MPG Z690 Force WiFi
|CPU (MAX SUPPORT)||i9|
|CHIPSET||Intel® Z690 Chipset|
|MAX MEMORY (GB)||128|
|LAN||1x Intel® I225-V 2.5G LAN|
|WIFI & BLUETOOTH||Intel® Wi-Fi 6E module|
|USB 3.2 PORTS (FRONT)||1(Gen 2, Type C), 2(Gen 1, Type A)|
|USB 3.2 PORTS (REAR)||1(Gen 2×2, Type C), 5(Gen 2, Type A)|
|USB 2.0 PORTS (FRONT)||4|
|USB 2.0 PORTS (REAR)||4|
|DIMENSION||12 in. x 9.6 in. (30.5 cm x 24.4 cm)|
|AUDIO PORTS (REAR)||5+ Optical S/PDIF (Realtek® ALC4080 Codec)|
|OPERATING SYSTEM||Support for Windows® 11 64-bit, Windows® 10 64-bit|
