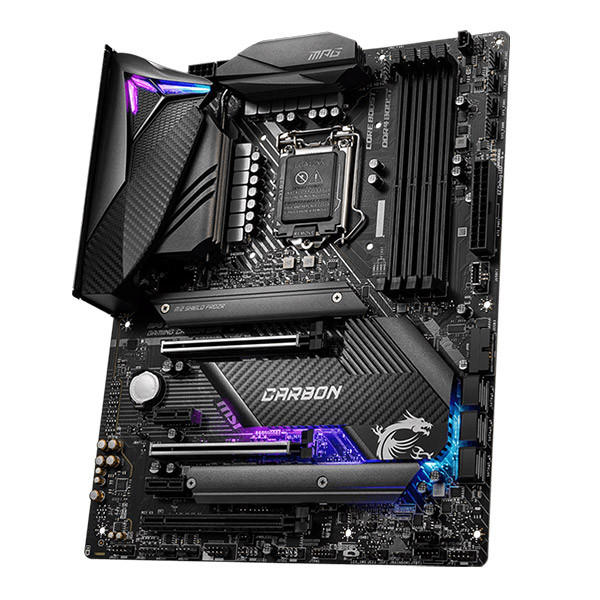

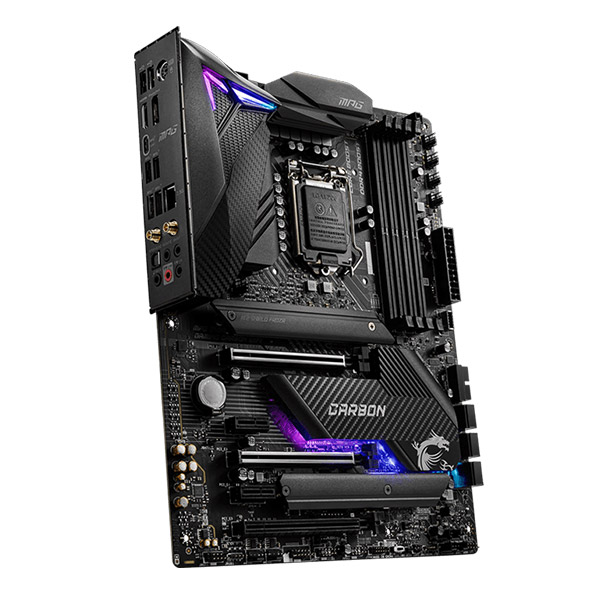

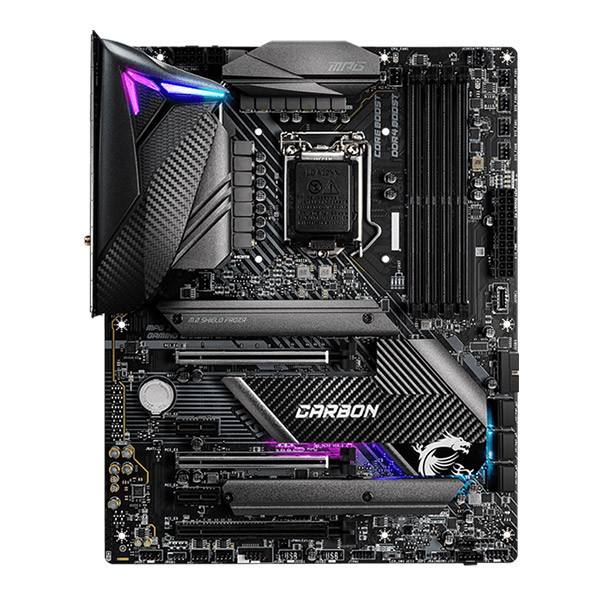

MSI MPG Z490 Gaming Carbon WiFi INTEL 10TH GENERATION Z490 ATX LGA 1200 Socket Gaming Motherboard
Overview :
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5000(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- M.2 Shield Frozr: Both M.2 slots with Shield Frozr to built for high performance system and non-stop gaming experience
- Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
WIFI 6
The latest wireless solution supports MU-MIMO and BSS color
technology, delivering speeds up to 2400Mbps.
M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while
preventing throttling, making them run cooler & faster.

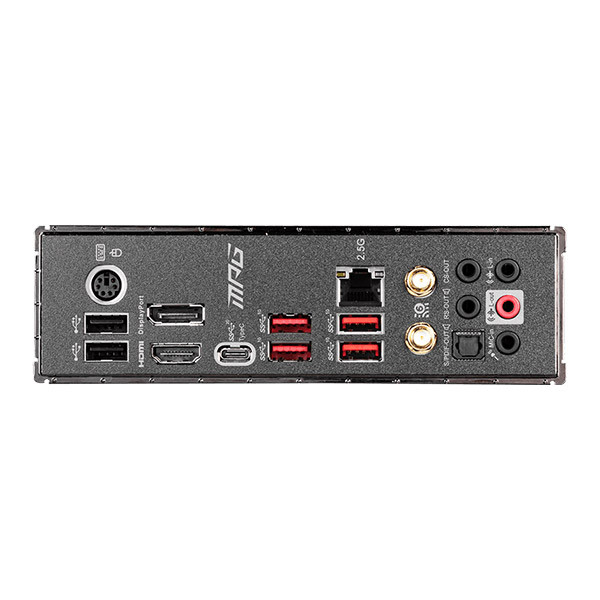

Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
EZ LED Control
One button to control LED on/off easily
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects,
controlled in one click!
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z490 Chipset |
| DDR4 MEMORY | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 2 |
| RAID | 0/1/5/10 |
| LAN | 1x Realtek® RTL8125B 2.5G LAN |
| USB 3.2 PORTS (FRONT) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 4(Gen 2, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC1220 Codec) |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| SLI | Y |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
